(Hover to zoom | Use mouse wheel for +/-)

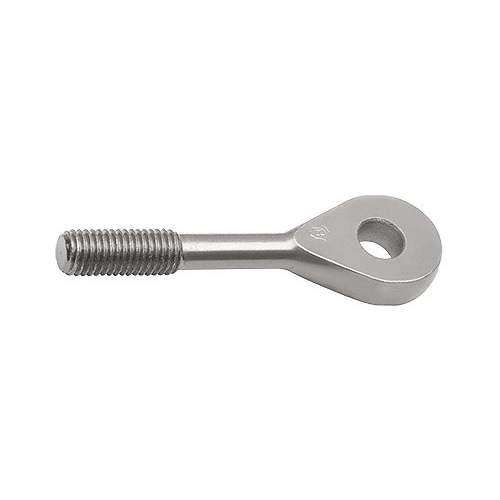

|TURNBUCKLE PIN EYE AN165-8RS|
|TURNBUCKLE PIN EYE AN165-8LS|
|TURNBUCKLE PIN EYE AN165-16RS|
|TURNBUCKLE PIN EYE AN165-16LS|
|TURNBUCKLE PIN EYE AN165-16RL|
|TURNBUCKLE PIN EYE AN165-16LL|
|TURNBUCKLE PIN EYE AN165-22RS|
|TURNBUCKLE PIN EYE AN165-22LS|
|TURNBUCKLE PIN EYE AN165-22RL|
|TURNBUCKLE PIN EYE AN165-22LL|
|TURNBUCKLE PIN EYE AN165-32RS|
|TURNBUCKLE PIN EYE AN165-32LS|
|TURNBUCKLE PIN EYE AN165-32RL|
|TURNBUCKLE PIN EYE AN165-32LL|
|TURNBUCKLE PIN EYE AN165-46RS|
|TURNBUCKLE PIN EYE AN165-46LS|
|TURNBUCKLE PIN EYE AN165-46RL|
|TURNBUCKLE PIN EYE AN165-46LL|
|TURNBUCKLE PARTS AN165-61RL|
|TURNBUCKLE PIN EYE an165-61ll|
The "R" or "L" following the dash number designates "right" or "Left." The "S" or "L" (2nd letter following dash number) indicates "short" or "long."
TURNBUCKLE PIN EYE AN165-32RS
This is a beautiful part, works perfectly for my application. Im securing sections of large, custom maple horns together, and these eyelets allow me to use 1/4 grade 8 bolts. Im extremely pleased with the outcome.
Well made, smooth rotation into the barrel. Does the job, if I need more, these are the ones I shall buy
3.5 stars. Beautiful craftsmanship, but seems exorbitantly expensive. Cest la vie for airplane parts!
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
From the center of the eye to the end of the shank this measures to 2.57".
The AN165 specification has been canceled for years, but has been superseded with MS21252. The AN165-61RL equivalent is MS21252-8RL, and the center of the eye to end of thread length is 3.188" per the MS data sheet.
No. These are not notched for the locking clip.
