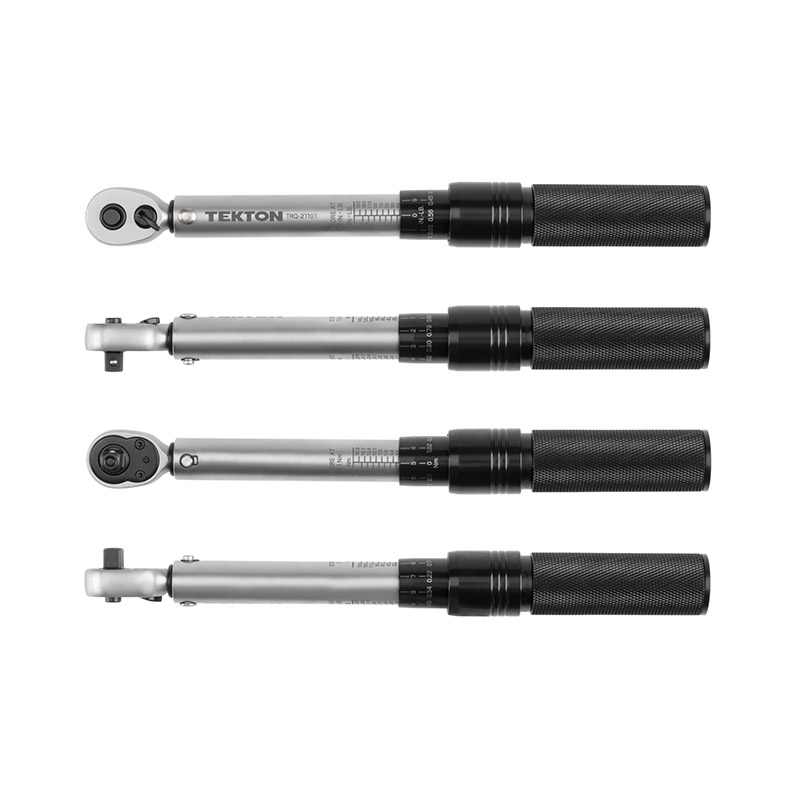

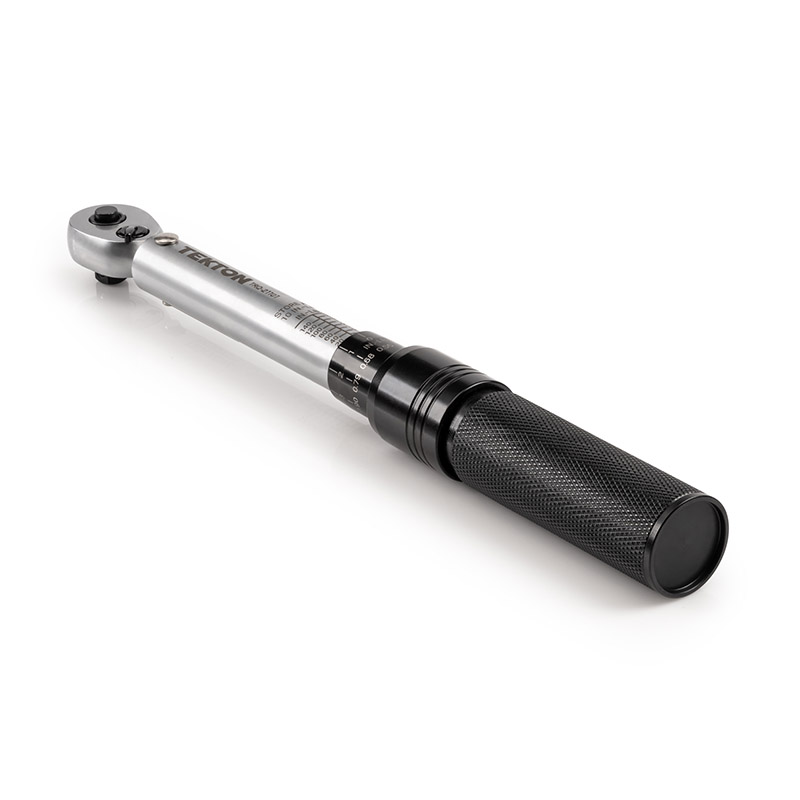

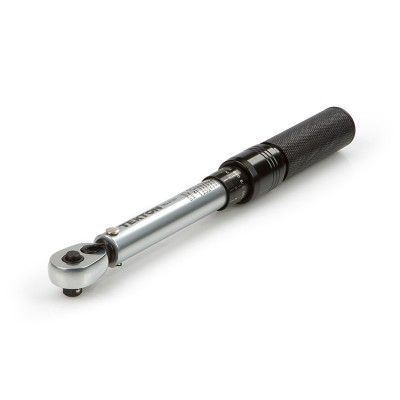

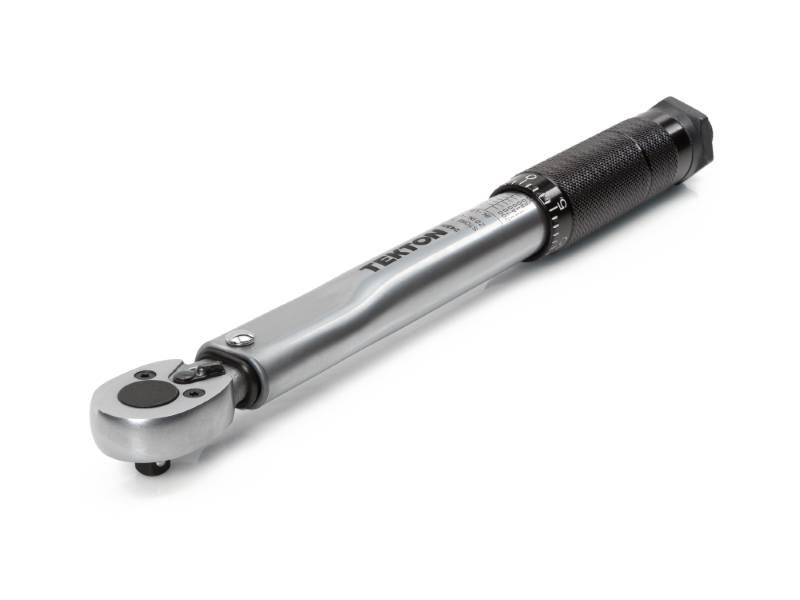

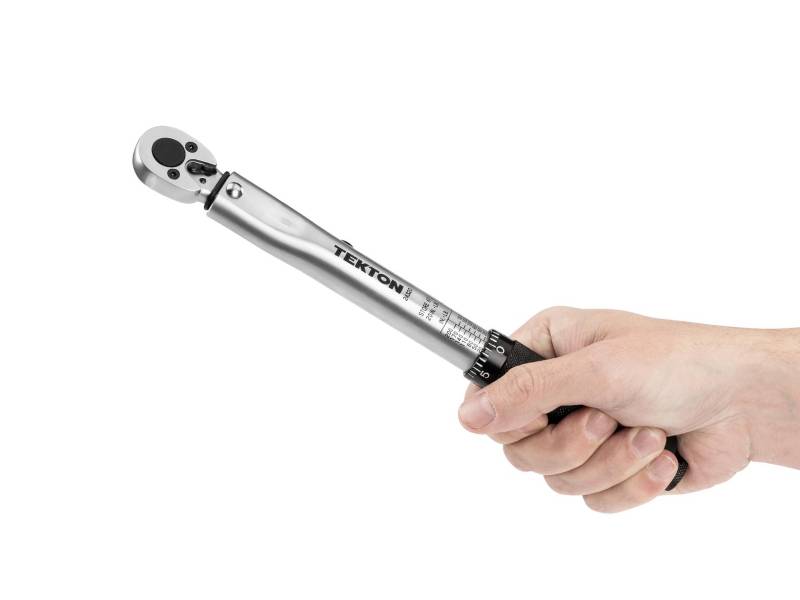

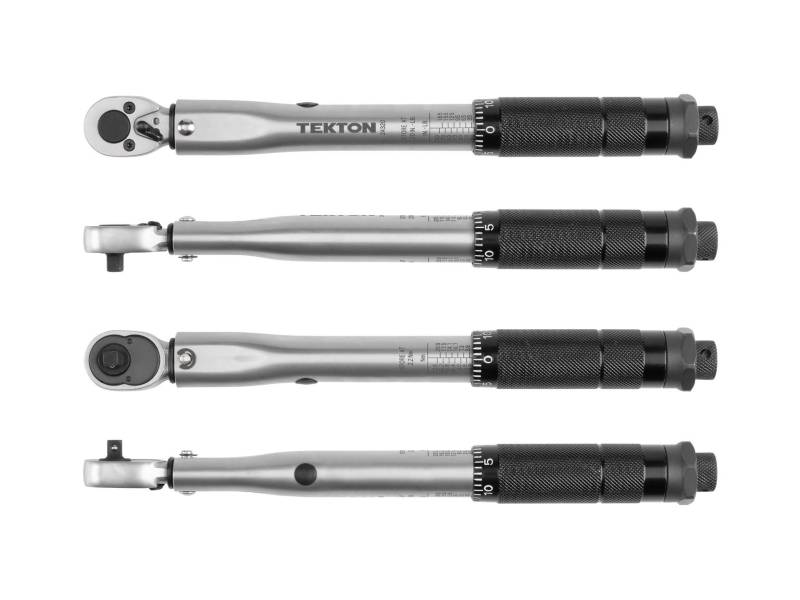

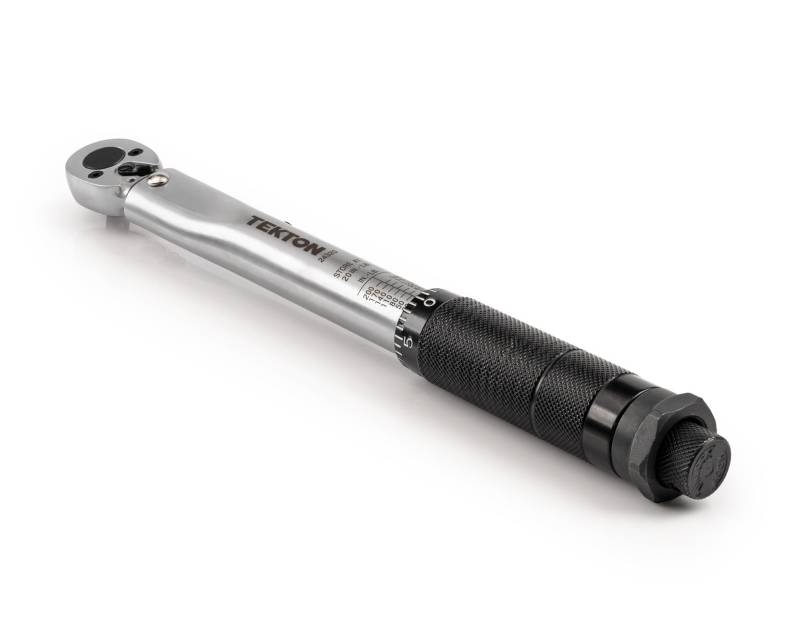

Tekton 1/4 Inch Drive Dual-Direction Micrometer Torque Wrench (10-150 in-lb)

0 Reviews 0 Answered Questions
$93.75/Each
Quantity
Add to Wishlist
Part# 12-06796
MFR Model# TRQ21101

Overview

Tekton Adjustable Wrench - 1-1/2 Inch Jaw Capacity

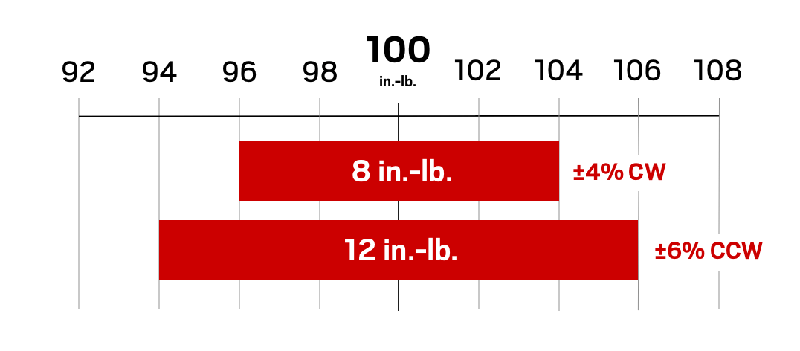

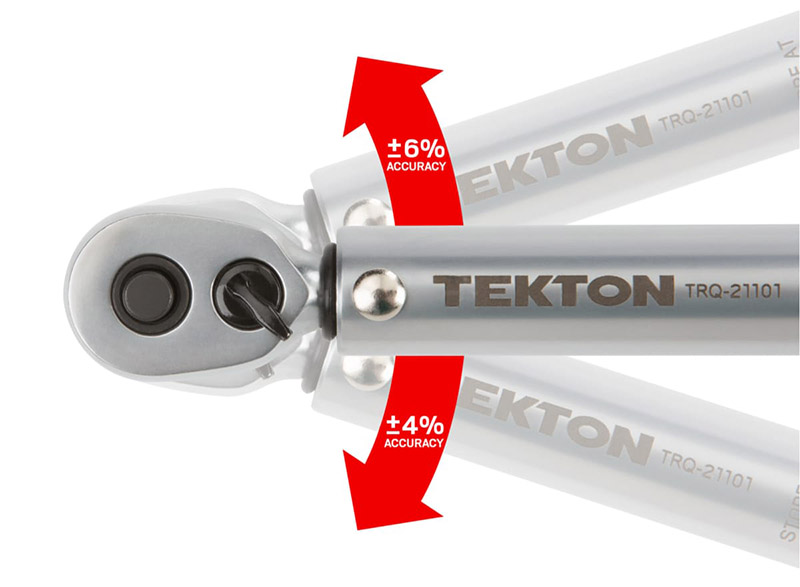

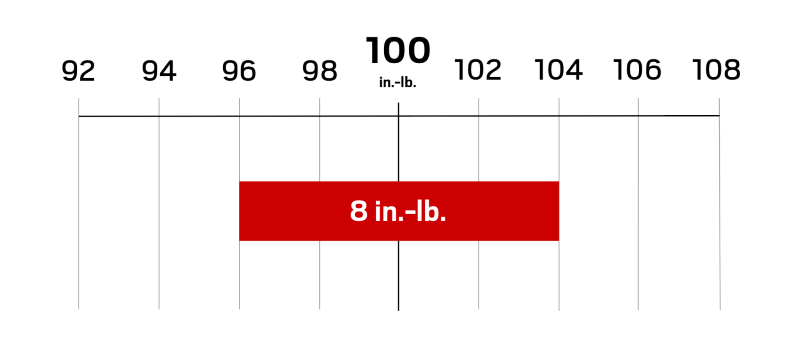

±4% and ±6% Accuracy
With an accuracy of ±4% (CW) and ±6% (CCW), this dual-direction wrench is calibrated according to the ASME B107.300-2010 standard. Example at 100 in.-lb.


Maximum Expected Error
Accuracy: the maximum expected error between the torque value on the wrench’s dial and the actual force the wrench exerts on a fastener

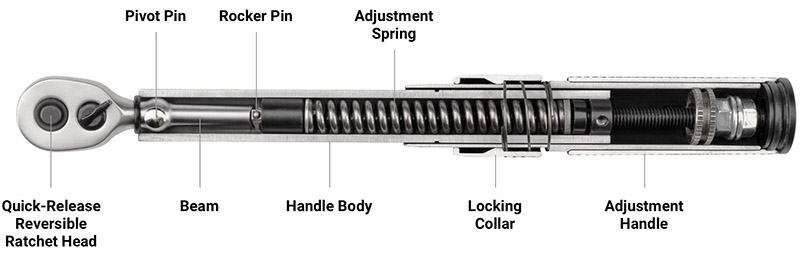

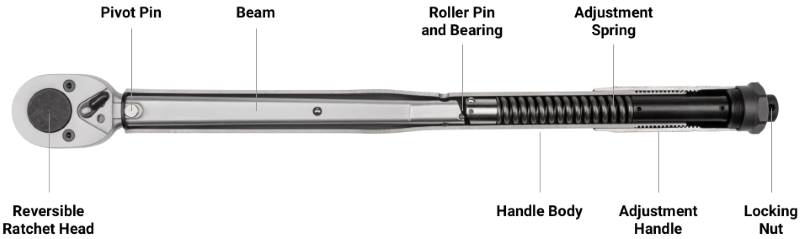

Micrometer Design and Operation

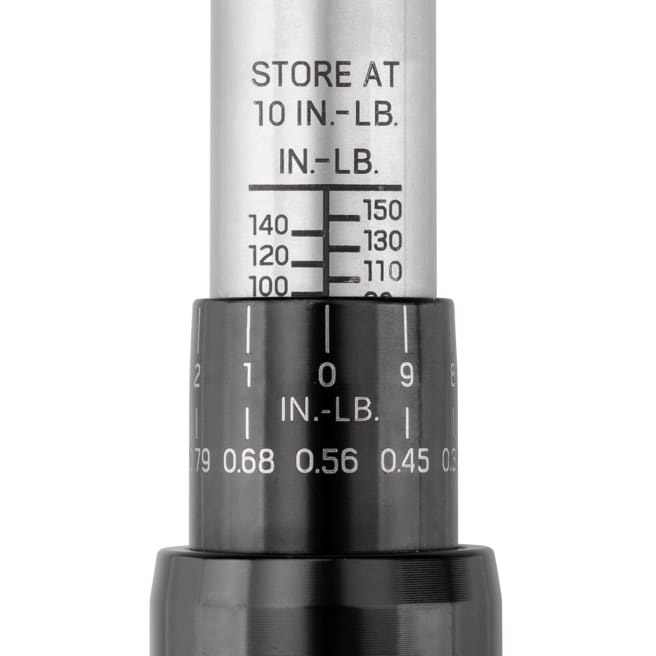

Proper storage: To maintain calibration, store micrometer-style wrenches at their lowest setting. Tekton's TRQ21101 should be stored at 10 in.-lb.

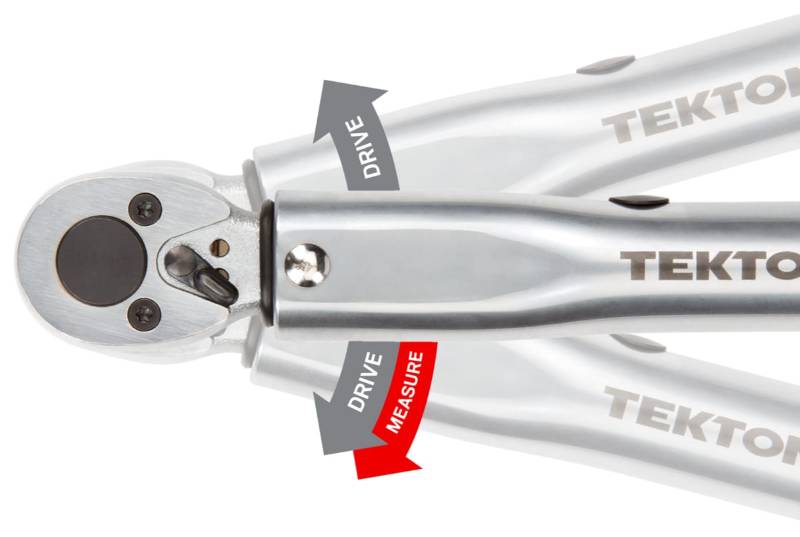

Dual-Direction Measurement
Drives and measures torque in both clockwise and counterclockwise directions

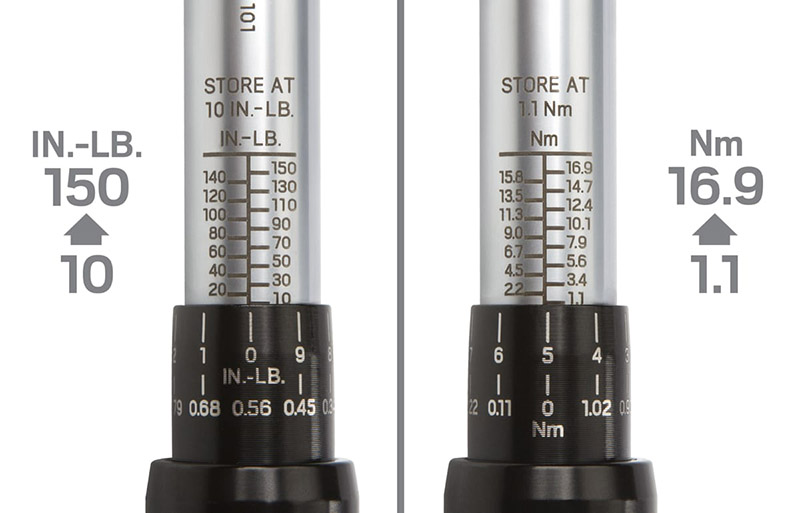

Dual-Range Scale
High-contrast, easy-to-read scale is marked with in.-lb. and Nm units

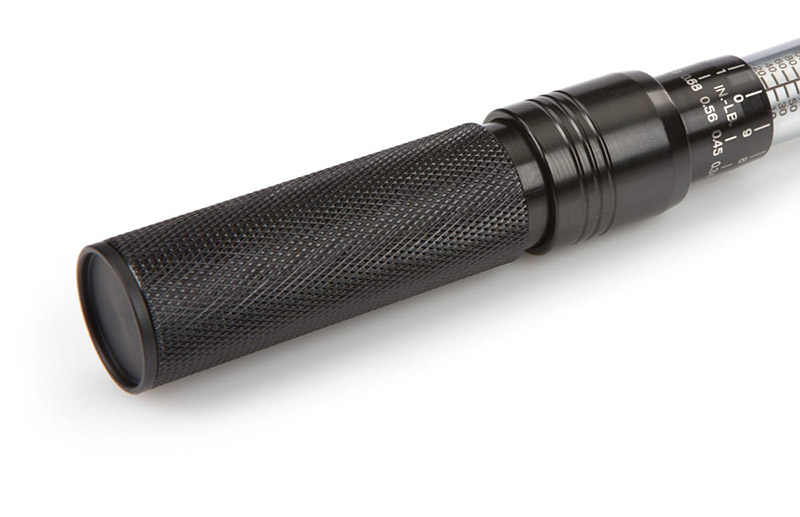

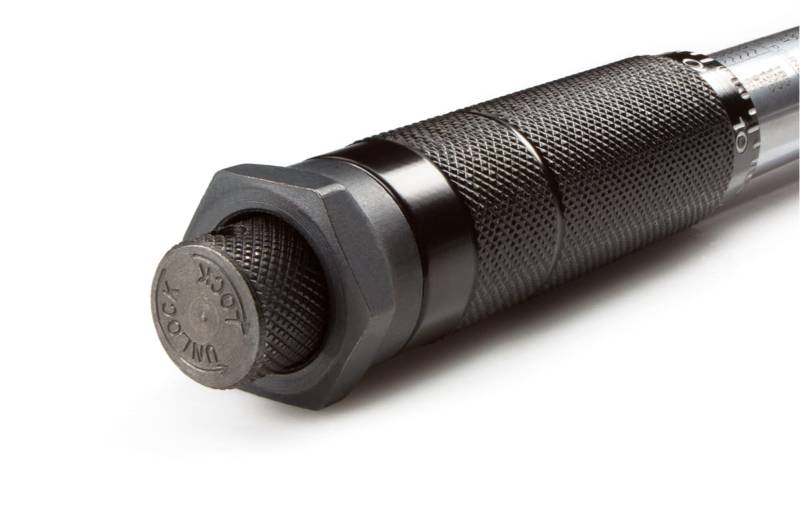

Spring-Loaded Locking Collar
Pulls down smoothly so you can turn the handle to the desired torque setting—let go, and the setting locks in place



Quick-Release Drive
Easily drops sockets off the drive tang with the push of a button

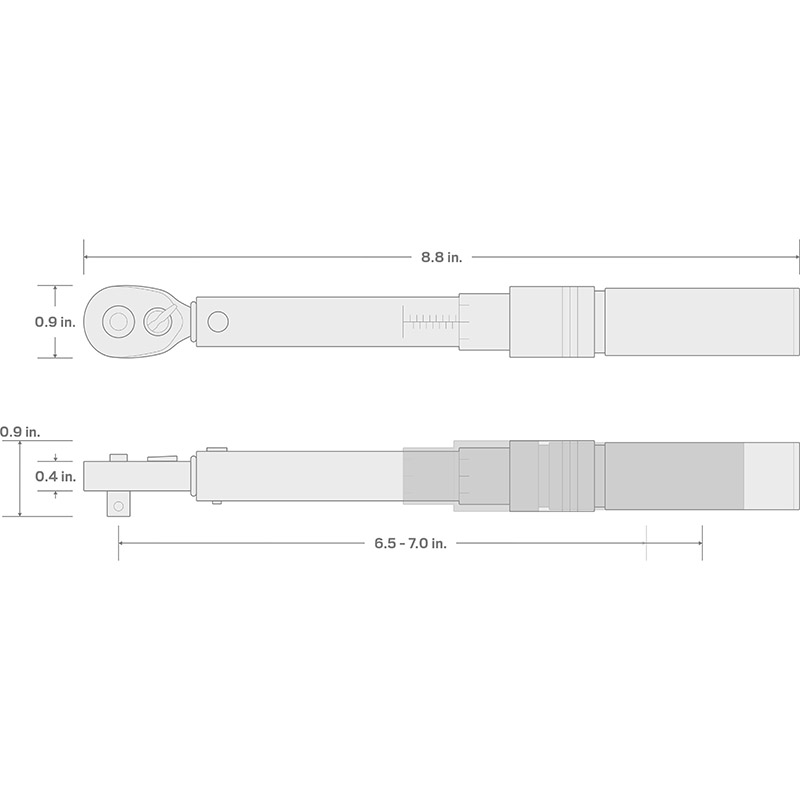

Specifications

  • Drive Size: 1/4 in.
  • Torque Range: 10 - 150 in-lb
  • Torque Range N-m: 1.1-16.9 Nm
  • Accuracy: ±4% Clockwise ; ±6% Counterclockwise
  • Measuring Direction: Clockwise/Counterclockwise
  • Scale Increment: 1.0 in.-lb. ; 0.11 Nm
  • Tooth Count: 72
  • Country of Origin: Taiwan
  • Item Weight: 0.8 lb.
