For uniform spacing of rivets, bolts, nails, etc. Unique fan design expands to 36". Equally spaces up to 20 holes between two given points. Made of 301 stainless steel.
Made in the USA.
Sturdy tool and of course very handy. holes are nice and straight and Ive got plenty to work with!
Works perfectly to space holes across a panel. Dont leave home without it.
Well made and worked as advertised.
handy tool, prompt delivery
Great tool. Works just as described, and makes layout so easy. Just installed stabilizer strakes on a 421, and being able to line the rivets up easily and accurately whilst working overhead was a GREAT help. I got the smaller of the two sizes because it was easier to handle in the position I was working in, and it really helped. If you are not doing restricted locations, get the 20-hole version, if you are working in tight quarters, (like I was) then the 10 hole will probably suit you better.
Works great and is usable where the 20-hole version is too large or clumsy. Mine seemed a bit stiff when brand-new, but a quick shot of WD40 made it work totally smooth and easy.
Just like the one I had back 20 yrs ago, they work great for pattern layout and a bunch of other uses. Every structures guy should make this one of their standard tools in their toolbox
perfect size, dont always need the 20 hole spacings
This is an invaluable tool that you will use both on your build as well as in the shop. Takes all the guess work and measurement out of rivet layouts as well as woodworking projects. Solid, smooth.
Per the vendor, when extended, the max distance they will be is 1 inch apart.
Part Number 12-00184: Closed (5-1/4" L x 2-3/4" Top x 5-1/4" Bottom) / Opened (17-1/2" L)

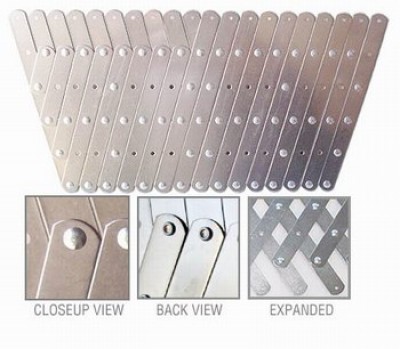

Part Number 12-11700: Closed (5-1/4" L x 8" Top x 10-3/4" Bottom) / Opened (36" L)
When the unit is closed, the hole spacing is approx. 9/16" center hole to center hole.
