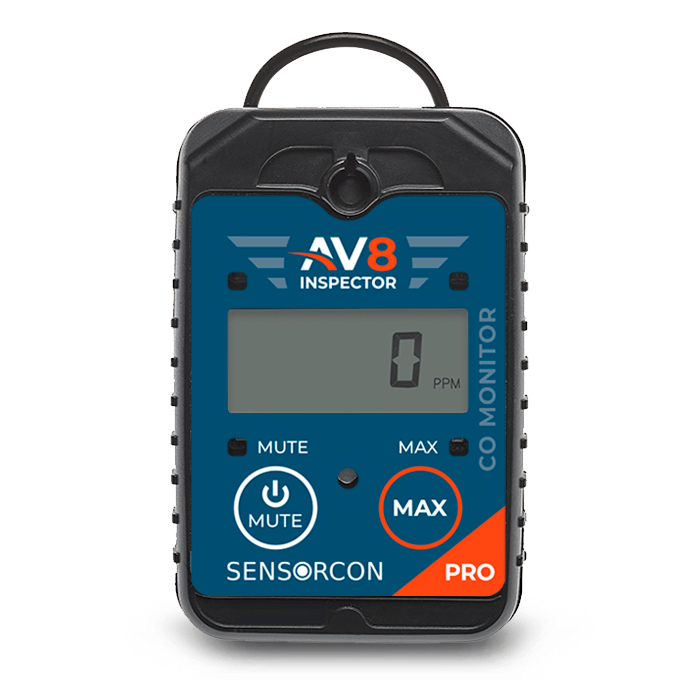

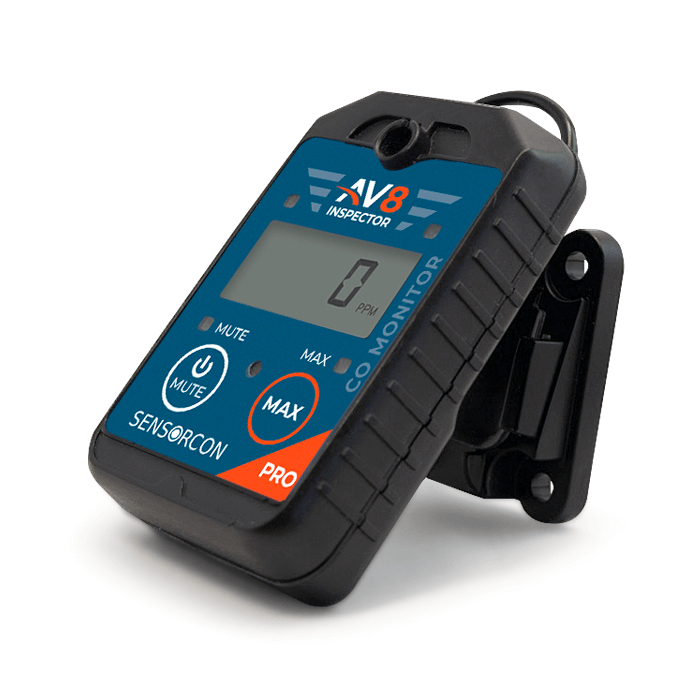

SENSORCON AV8 INSPECTOR PRO PORTABLE CARBON MONOXIDE MONITOR

$229.95/Each
Quantity
Add to Wishlist
Part# 10-07328
MFR Model# AV8-CO-03

Overview

In aviation, CO is commonly produced by equipment such as piston-driven aircraft, ground servicing equipment, and airside vehicles. Turbine engine aircraft exhaust and auxiliary power unit (APU) exhaust can also contribute to the accumulation of unsafe levels of CO. Being aware of the potential for carbon monoxide (CO) exposure and poisoning is crucial for eliminating safety hazards and preventing accidents. The AV8 Inspector’s advanced sensor technology allows for accurate readings of carbon monoxide concentrations, before it becomes a problem

Features

  • 2 Year Warranty
  • Water Resistant
  • Shock Proof
  • Pre Set Low Alarm (35 ppm)
  • Pre Set High Alarm (200 ppm)
  • Visual Alarm
  • Audio Alarm
  • Vibrating Alarm
  • Alarm Adjust
  • 24 Hour TWA

Specifications

  • Measuring Range: 0-500ppm
  • Display Range: 0-1999ppm
  • Resolution: 1ppm
  • Accuracy: +/- 10% of reading at ambient conditions (0-500 ppm)
  • Response time: (T90): < 20 seconds
  • Size: ~3.2” x 2.2” x 0.9”
  • Unit Weight: 4 ounces
  • Battery Life: > 2 yrs (depending on alarm conditions)
  • Battery Type: Panasonic CR123A
  • Alarm setpoints: 35 ppm low, 200 ppm high
  • Alarm types: Visual LCD/LED, Audible Buzzer (80-85dB), and
  • Vibrate Mode (vibrate in AV8 Inspector Pro model only)
  • Temperature Range : -4 to +122 °F (-20 to +50 °C)
  • Humidity Range: 20%-90% RH continuous (0-99% intermittent)
  • Sensor Type: electrochemical

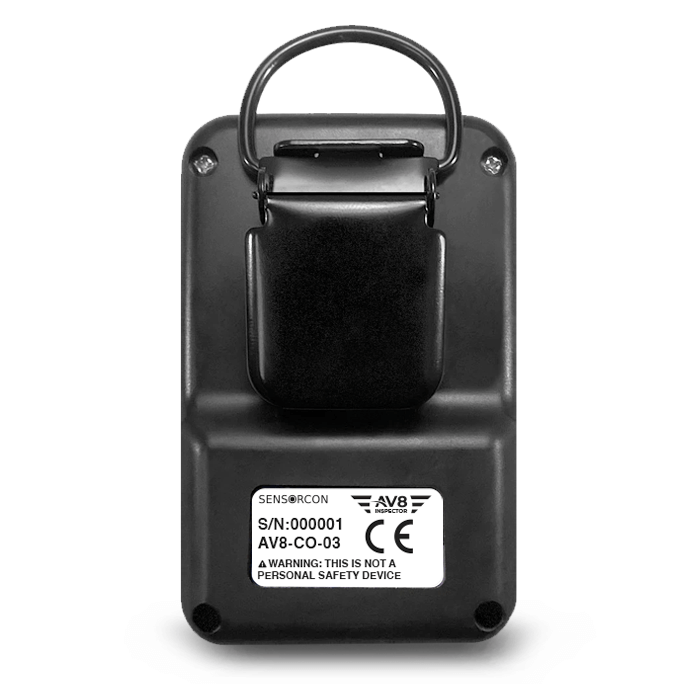

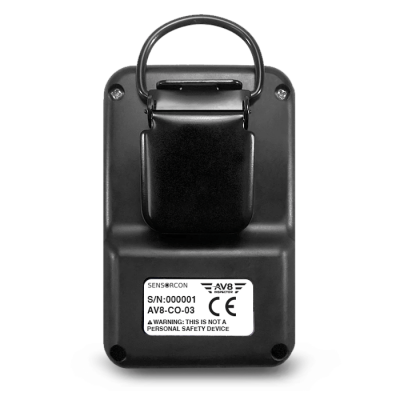

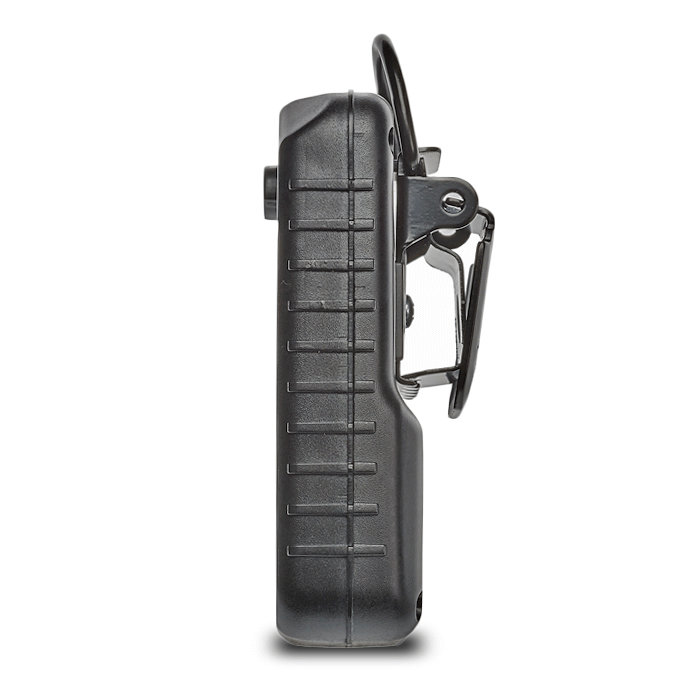

  • Steel alligator clip with lanyard loop

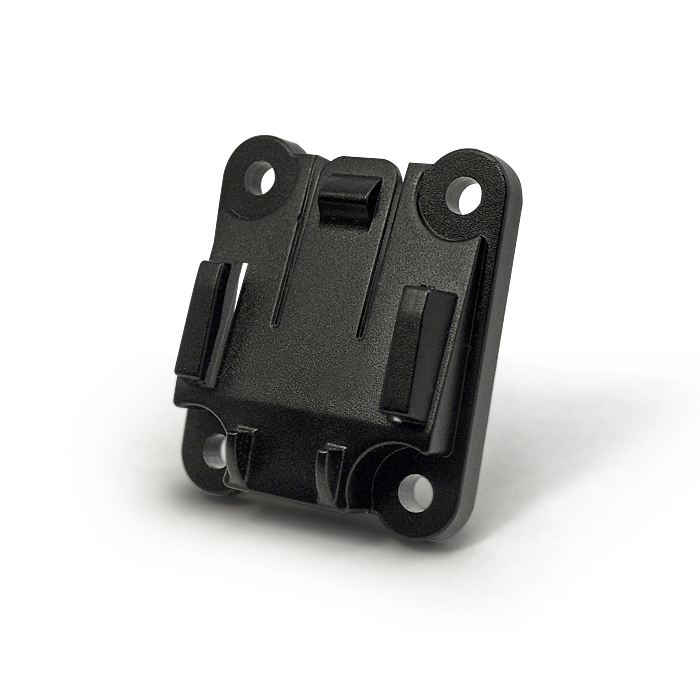

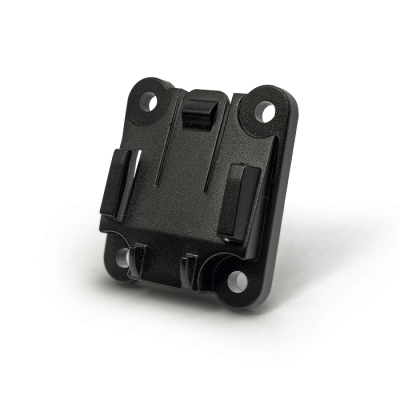

  • Removable mount

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The instruction manual does not include information about battery replacement (that I found find). Is the battery replaceable by the owner/user or must it be done by the manufacturer?

Yes the batteries are replaceable and you can buy anywhere. Lithium CR123A.

Q: What is the difference between the standard AV8 Inspector and the PRO?

The Pro version adds Vibrating Alarm, Alarm Adjust, and 24 Hour TWA. Vibrating alarm adds another layer of notice capability by vibrating the unit when the alarm is triggered. Alarm adjust allows you to adjust the high and low values for alarm trigger (they are preset for the standard model). Finally, 24 hour TWA is Time Weighted Average which displays the maximum 8 hour average in the last 24 hours.

Q: Most CO monitors have a limited life sensor that must be returned to the factory for update/replacement. Does this SENSORCON AV8 unit have a limited life before the sensor must be replaced?

Per the manufacturer, it must be replaced every 2 years.

Q: Is the electrochemical sensor replaceable?

Yes. Per the manufacturer, it must be replaced every 2 years.
