CAMLOC 4002 RECEPT # 214-16ND

$12.95/Piece
Part# 214-16ND
MFR Model# 214-16ND
DescriptionPart No.
4002 Series - Fixed Depth, Rigid Receptacle,
Narrow Width, Csk Rivet Holes
214-16ND

Overview

2600 Series - Small enough to fit in limited mounting space and light weight. These Camloc fasteners have a 600# ultimate tensile load capacity.

4002 Series - The Modern Standard in Quick Release Fastening Systems. They have an 800# working strength and 1050# Ultimate Tensile load capacity.

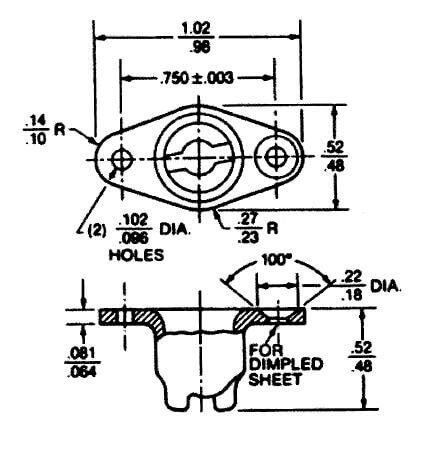

Drawing

212-12 Series


  • Frequently Purchased With
  • Customers Also Viewed

Reviews

These are perfect for our project. We elected for the non-countersunk version. It is important to know what length of fastener to order along with these though. I suggest ordering a few different lengths to allow for some options.

Patrick S
May 10, 2021

Excellent service, price, and delivery on every order of this frequently purchased part.

Sharon R
March 11, 2021

Exactly what I needed.

Don
September 23, 2019

Works well on schools Piper Aztec

Edward B
February 21, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the rivet spacing for these 212-12 receptacles? I'm looking to replace some worn out Airloc fasteners. Thanks

The rivet spacing is 3/4" from center hole to center hole on the unit.

Q: What is the difference between the Camloc receptacles that take plain and CSK rivets?

Regarding 214-16N, this would take a plain rivet for the mounting holes. For P/N# 214-16ND, this would use a countersunk (CSK) rivet for the mounting holes. The mounting holes are laid out differently for the type of rivet it requires.

Q: What is the rivet spacing on the 214-16N receptacle?

The rivet spacing is 1" +/- .003" .

Q: Is there any standards or certification this product complies?

Per the vendor certs, this meets TSO C148.

Q: In maximum grip length, must I also calculate depth of receptacle?

You would just need to measure the total material thickness.
