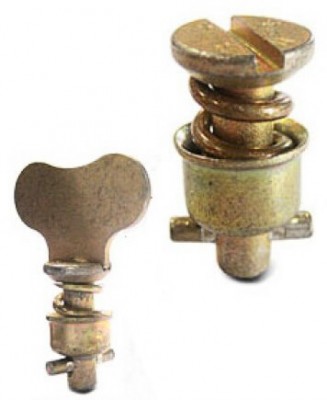

CAMLOC 4002 SERIES STUDS

From $3.75 to $52.75
Type Dash No. PN Price Buy
Cad Plated Slotted-2
4002-2
$13.50
Quantity
Cad Plated Slotted-3
4002-3
$4.70
Quantity
Cad Plated Slotted-4
4002-4
$11.50
Quantity
Cad Plated Slotted-5
4002-5
$4.45
Quantity
Cad Plated Slotted-6
4002-6
$8.85
Quantity
Cad Plated Slotted-7
4002-7
$3.75
Quantity
Cad Plated Slotted-8
4002-8
$10.70
Quantity
Cad Plated Slotted-9
4002-9
$5.95
Quantity
Cad Plated Slotted-10
4002-10
$7.50
Quantity
Cad Plated Slotted-11
4002-11
$12.75
Quantity
Cad Plated Slotted-12
4002-12
$10.75
Quantity
Cad Plated Slotted-14
4002-14
$17.50
Quantity
Cad Plated Slotted-15
4002-15
$10.50
Quantity
Stainless Steel Slotted-2
4002-2S
$20.50
Quantity
Stainless Steel Slotted-3
4002-3S
$52.75
Quantity
Stainless Steel Slotted-4
4002-4S
$11.90
Quantity
Stainless Steel Slotted-5
4002-5S
$16.50
Quantity
Stainless Steel Slotted-6
4002-6S
$16.50
Quantity
Stainless Steel Slotted-7
4002-7S
$22.50
Quantity
Stainless Steel Slotted-8
4002-8S
$17.00
Quantity
Stainless Steel Slotted-9
4002-9S
$29.50
Quantity
Cad Plated Phillips-2
40S5-2
$5.40
Quantity
Cad Plated Phillips-3
40S5-3
$5.95
Quantity
Cad Plated Phillips-4
40S5-4
$6.60
Quantity
Cad Plated Phillips-5
40S5-5
$13.50
Quantity
Cad Plated Phillips-6
40S5-6
$24.50
Quantity
Cad Plated Phillips-7
40S5-7
$8.50
Quantity
Cad Plated Phillips-8
40S5-8
$4.80
Quantity
Cad Plated Phillips-9
40S5-9
$8.85
Quantity
Cad Plated Phillips-10
40S5-10
$8.85
Quantity
Cad Plated Phillips-11
40S5-11
$14.50
Quantity
Cad Plated Phillips-12
40S5-12
$8.95
Quantity
Cad Plated Phillips-13
40S5-13
$20.50
Quantity
Cad Plated Phillips-14
40S5-14
$12.50
Quantity
Cad Plated Phillips-15
40S5-15
$10.50
Quantity
Stainless Steel Phillips-2
40S5-2S
$13.50
Quantity
Stainless Steel Phillips-3
40S5-3S
$4.85
Quantity
Stainless Steel Phillips-4
40S5-4S
$3.75
Quantity
Stainless Steel Phillips-5
40S5-5S
$4.35
Quantity
Stainless Steel Phillips-6
40S5-6S
$4.35
Quantity
Stainless Steel Phillips-7
40S5-7S
$4.85
Quantity
Stainless Steel Phillips-8
40S5-8S
$4.60
Quantity
Stainless Steel Phillips-9
40S5-9S
$7.50
Quantity
Stainless Steel Phillips-10
40S5-10S
$13.50
Quantity
Cad Plated Wing Stud-3
4002-3W
$36.50
Quantity
Cad Plated Wing Stud-4
4002-4W
$22.85
Quantity
Cad Plated Wing Stud-5
4002-5W
$20.50
Quantity
Cad Plated Wing Stud-6
4002-6W
$20.50
Quantity
Cad Plated Wing Stud-7
4002-7W
$42.85
Quantity
Cad Plated Wing Stud-8
4002-8W
$29.60
Quantity
Cad Plated Wing Stud-9
4002-9W
$22.99
Quantity
Cad Plated Wing Stud-10
4002-10W
$18.50
Quantity
Stainless Steel Wing Stud-5
4002-5SW
$44.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

To select the proper length stud, first select the grommet, for example 4002-G. Next, select the receptacle, such as 214-16. After determining the total grip thickness, use the grommet column under which the selected grommet and receptacle appear. Use the dash number which appears opposite the determined total grip thickness.

Example: If the total determined grip thickness G was. 144, the stud dash number for the above 4002-G grommet and 214-16 receptacle would be -4. The stud part number would be 4002-4.

Total Grip Thickness Range "G"
Stud Dash Number
4002-G Grommet & 214-16 Receptacle
4002-N, 4002-0 Grommet & 214-16 Receptacle
.021-.050
--*
-1
.055-.080
--*
-2
.081-.110
-2*
-3
.111-.140
-3
-4
.141-.170
-4
-5
.171-.200
-5
-6
.201-.230
-6
-7
.231-.260
-7
-8
.261-.290
-8
-9
.291-.320
-9
-10
.321-350
-10
-11
.351-380
-11
-12
.381-.410
-12
-13
.411-.440
-13
-14
.411-.470
-14
-15
.471-.500
-15
-16
.501-.530
-16
-17
.531-.560
-17
-
*4002-G grommet requires .090" minimum grip.

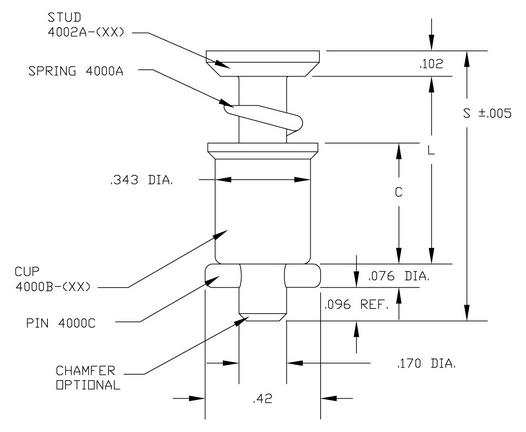

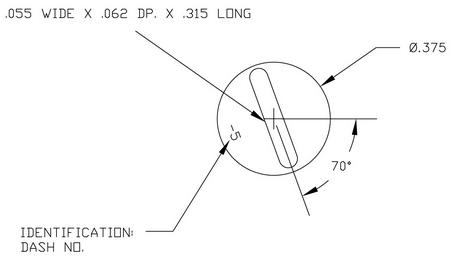

Drawing & Specs


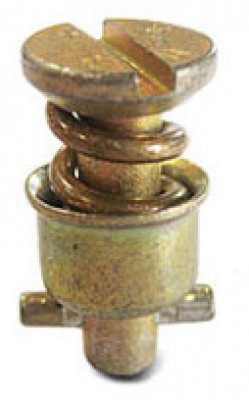

4002 CAP PLATED SLOTTED
Dash Number
Total Panel Thickness
L
S
C
Part Number
-2
.051-.080
.413-.423
.69
.220
4002-2
-3
.081-.110
.443-.453
.72
.257
4002-3
-4
.111-.140
.473-.483
.75
.257
4002-4
-5
.141-.170
.503-.513
.78
.292
4002-5
-6
.171-200
.533-.543
.81
.322
4002-6
-7
.201-.230
.563-.573
.84
.352
4002-7
-8
.231-.260
.593-.603
.87
.382
4002-8

4002 STAINLESS STEEL SLOTTED
Dash Number
Total Panel Thickness
L
S
C
Part Num.
-2
.051-.080
.413-.423
.69
.220
4002-2S
-3
.081-.110
.443-.453
.72
.257
4002-3S
-4
.111-.140
.473-.483
.75
.257
4002-4S
-5
.141-.170
.503-.513
.78
.292
4002-5S
-6
.171-200
.533-.543
.81
.322
4002-6S
-7
.201-.230
.563-.573
.84
.352
4002-7S
-8
.231-.260
.593-.603
.87
.382
4002-8S
-9
.261-.290
.623-.633
.90
.412
4002-9S

4002 CAD PLATED PHILLIPS
Dash Number
Total Panel Thickness
L
S
C
Part Num.
-2
.051-.080
.413-.423
.69
.220
40S5-2
-3
.081-.110
.443-.453
.72
.257
40S5-3
-4
.111-.140
.473-.483
.75
.257
40S5-4
-5
.141-.170
.503-.513
.78
.292
40S5-5
-6
.171-200
.533-.543
.81
.322
40S5-6
-7
.201-.230
.563-.573
.84
.352
40S5-7
-8
.231-.260
.593-.603
.87
.382
40S5-8
-9
.261-.290
.623-.633
.90
.412
40S5-9

STAINLESS STEEL PHILLIPS
Dash Number
Total Panel Thickness
L
S
C
Part Num.
-2
.051-.080
.413-.423
.69
.220
40S5-2S
-3
.081-.110
.443-.453
.72
.257
40S5-3S
-4
.111-.140
.473-.483
.75
.257
40S5-4S
-5
.141-.170
.503-.513
.78
.292
40S5-5S
-6
.171-200
.533-.543
.81
.322
40S5-6S
-7
.201-.230
.563-.573
.84
.352
40S5-7S
-8
.231-.260
.593-.603
.87
.382
40S5-8S
-9
.261-.290
.623-.633
.90
.412
40S5-9S
-10
.291-.320
.653-.663
.93
.442
40S5-10S

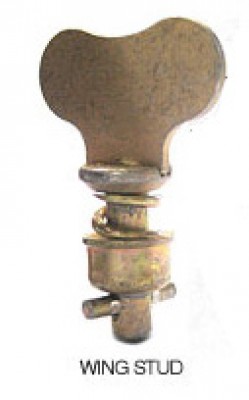

CAD PLATED WING STUD
Dash Number
S
Part Num.
-2
.69
4002-2W
-3
.72
4002-3W
-4
.75
4002-4W
-5
.78
4002-5W
-6
.81
4002-6W
-8
.87
4002-8W
-9
.90
4002-9W
-10
.93
4002-10W

-11

.96

4002-11W
-12
.99
4002-12W
