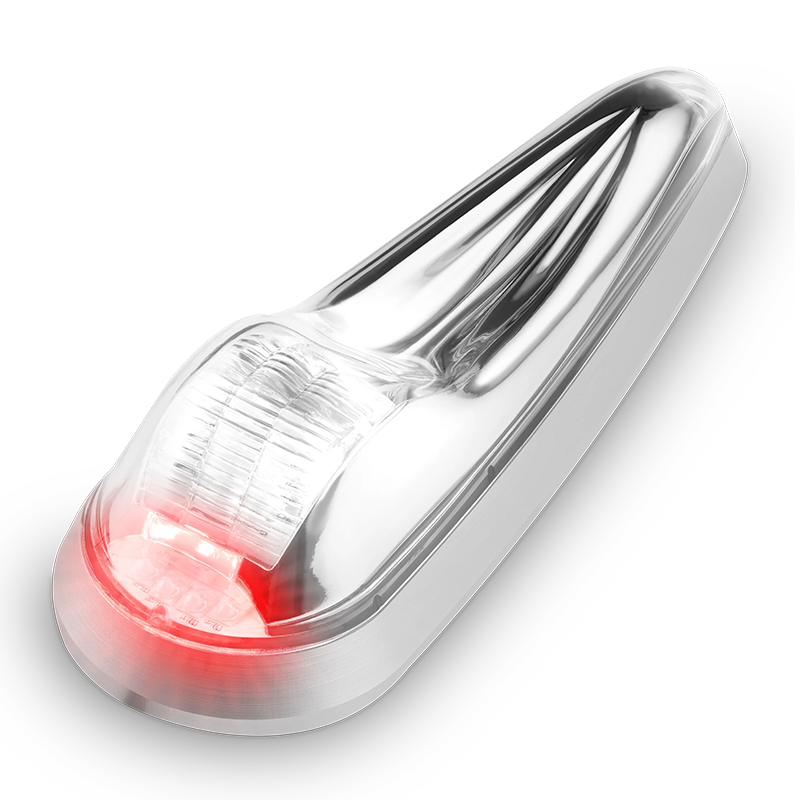

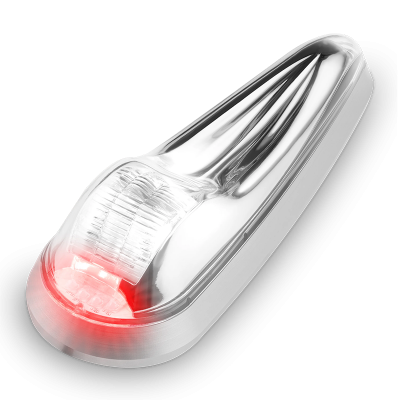

AeroLEDs Pulsar 600 Navigation / Strobe / Position Light Pair Faa TSO 12V

$2103.00/Each
Part# 11-15567
MFR Model# 11-1100-12

Overview

The Pulsar 600 wingtip lights are designed to be installed on the wingtips of an aircraft where the navigation (red and green) and position (white) lights can be seen to determine the direction of the aircraft.

TSO Certified: TSO-C30c Type I, Type II, and Type III and TSO-C96a Class II approved.

Features

  • Three-in-One: Navigation, strobe, and rear-facing position light.
  • Power Options: Compatible with 14V and 28V systems.
  • Energy Efficient: Low power consumption, no external power supply required.
  • Easy Installation: Standard mounting pattern with patented bracket.

Specifications

  • Max Current: 0.6A@14VDC(average) 4.9A@14VDC(peak), 0.4A@28VDC(average) 3.2A@28VDC(peak)
  • Weight: 0.25 lbs.
  • Length: 5.6" Width: 1.9" Depth: 1.4"
  • Includes patented three-position mounting bracket

Benefits

Legacy Product Part Number Legacy Product Model Number Pulsar™ 600 Part Number Pulsar™ 600 Model Number
01-0790006-03 A600PR28 11-1100-24-L Pulsar 600 - 28V RED
01-07900006-01 A600PG28 11-1100-24-R Pulsar 600 - 28V GREEN
01-0790006-02 A600PR14 11-1100-12-L Pulsar 600 - 14V RED
01-0790006-00 A600PG14 11-1100-12-R Pulsar 600 - 14V GREEN
01-0790340-03 9034003 11-1100-24-R Pulsar 600 - 28V GREEN
01-0790340-04 9034004 11-1100-24-L Pulsar 600 - 28V RED
01-0790340-01 9034001 11-1100-12-R Pulsar 600 - 14V GREEN
01-0790340-02 9034002 11-1100-12-L Pulsar 600 - 14V RED
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Easy to mount. Nice looking lights. I wish the strobes had two quick flashes instead of one though.

Dennis
April 17, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these AeroLeds Pulsar Nav / Strobe / Position Lights sold in pairs? Can I install them on a certified aircraft?

Yes, they are sold in pairs. Currently, they CANNOT be installed in certified aircraft without a Form 337 field approval. (as of 10/1/13)

Q: Does the PULSAR-NS90 come with the mounting kit? If not, do you have the mounting kit?

Yes, the mounting kit is included.

Q: What is the AeroLEDs Pulsar warranty?

5 years from date of purchase.
