- Photo may represent series and not specific product
- SHARE

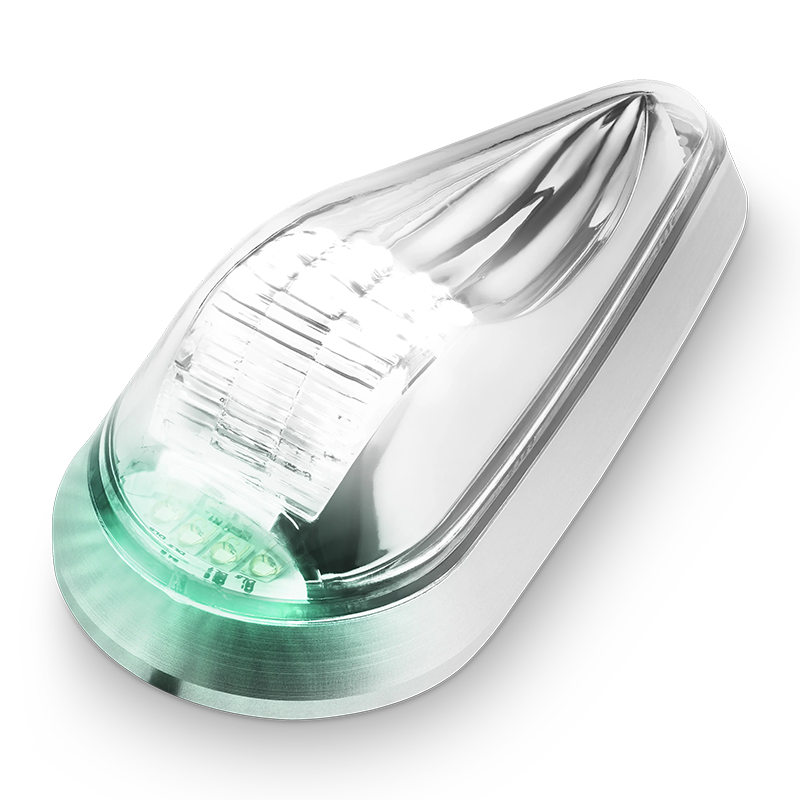

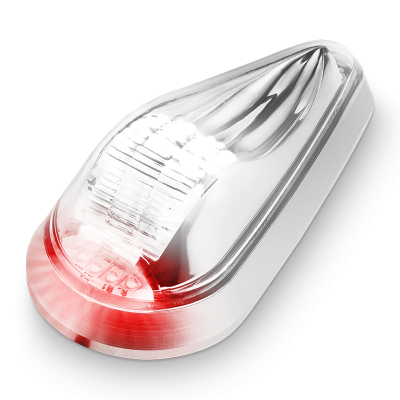

AeroLEDs Pulsar 650 EXP Wingtip Navigation / Strobe Light Pair Non TSO 28V
$1448.00/Each
Part# 11-15279
MFR Model# 01-1380-B-24
MFR Model# 01-1380-B-24
Overview
|
PULSAR™ 650 EXP (formerly Pulsar NS Experimental) navigation LEDs deliver exceptional performance in a design tailored for Experimental and Light Sport Aircraft. Engineered to perform in the most demanding flight environments, they offer exceptional reliability and visibility in all conditions, with refined optics and an enhanced lens interface to support long-term durability.
PULSAR™ 650 EXP PROVIDES TWO HIGH PERFORMANCE FUNCTIONS: POSITION (Red | Green): Directional aviation red and green LEDs provide clear aircraft orientation for safe, compliant operation. ANTI-COLLISION STROBE: High-intensity white strobe dramatically enhances aircraft visibility in both day and night operations, aiding in recognition and collision avoidance. PULSAR™ 650 EXP is designed with an industry-standard three-position screw pattern and includes a mounting bracket, making them ideal for legacy light replacements. No external power supply is required, and the updated configuration maintains this footprint while incorporating improved internal architecture for long-term durability and stability.  |
Features
- 5 YEAR WARRANTY
- HIGH-EFFICIENCY, LOW-POWER LEDS
- LONG-LIFE, LOWMAINTENANCE DESIGN
- SHOCK AND VIBRATION RESISTANT
- BUILT-IN THERMAL PROTECTION
- UV HARDCOATED POLYCARBONATE LENS
- ALUMINUM CLEAR ANODIZED BASE
- AeroLEDs STROBE SYNCHRONIZATION W/SunTail 550 EXP
- AERODYNAMIC, LOW-DRAG PROFILE
Specifications
- Max Current: 0.65A@14VDC(average) 4.9A@14VDC(peak), 0.4A@28VDC(average) 3.05A@28VDC(peak)
- Weight: 0.24 lbs.
- Length: 4" Width: 1.9" Depth: 1.5"
- Includes patented three-position mounting bracket
Benefits
| Legacy Product Part Number | Legacy Product Model Number | Pulsar™ 650 Part Number | Pulsar™ 650 Model Number |
|---|---|---|---|
| 01-0770054-01 | A650PG28 | 11-1280-B-24-R | Pulsar 650 - 28V GREEN |
| 01-0770054-03 | A650PR28 | 11-1280-B-24-L | Pulsar 650 - 28V RED |
| 01-0770054-00 | A650PG14 | 11-1280-B-12-R | Pulsar 650 - 14V GREEN |
| 01-0770054-02 | A650PR14 | 11-1280-B-12-L | Pulsar 650 - 14V RED |
| 01-0771110-03 | 7111003 | 11-1280-B-24-L | Pulsar 650 - 28V RED |
| 01-0771110-04 | 7111004 | 11-1280-B-24-R | Pulsar 650 - 28V GREEN |
| 01-0771110-01 | 7111001 | 11-1280-B-12-L | Pulsar 650 - 14V RED |
| 01-0771110-02 | 7111002 | 11-1280-B-12-R | Pulsar 650 - 14V GREEN |
| 01-0770001-42 | W1285PG28 | 11-1280-B-24-R | Pulsar 650 - 28V GREEN |
| 01-0770001-52 | W1285PR28 | 11-1280-B-24-L | Pulsar 650 - 28V RED |
| 01-0770001-41 | W128514 | 11-1280-B-12-R | Pulsar 650 - 14V GREEN |
| 01-0770001-51 | W128514 | 11-1280-B-12-L | Pulsar 650 - 14V RED |
| 01-0771105-03 | 7110503 | 11-1280-B-24-L | Pulsar 650 - 28V RED |
| 01-0771105-04 | 7110504 | 11-1280-B-24-R | Pulsar 650 - 28V GREEN |
| 01-0771105-01 | 7110501 | 11-1280-B-12-L | Pulsar 650 - 14V RED |
| 01-0771105-02 | 7110502 | 11-1280-B-12-R | Pulsar 650 - 14V GREEN |
NOTE: Any highlighted RED ITEMS will require extra wiring for anti-collision function of Pulsar™ Series.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Does the AeroLED Pulsar NS Strobe need a power supply?
Correct, these do not need a power supply.
Q: Does the mounting bracket KIT-0008 which is shown on the Aeroleds website come with the lights? It says the mounting kit is required.
The KIT-0008 is included in the box.
Q: Will the AeroLED Pulsar 650 replace existing Whelen wing tip nav lights with integrated strobes?
Whelen offers the LED Orion 650 series with an anti-collision light facing forward in 14 and 28 volt units
