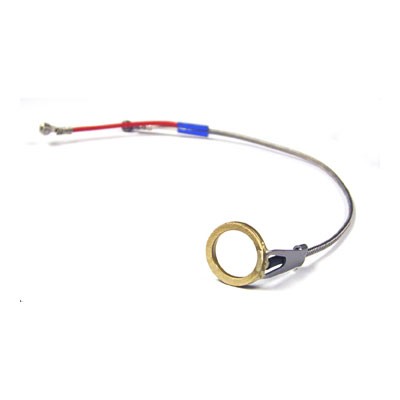

Insight is the world's largest manufacturer of aviation temperature probes. The temperature probe measures the engine's pulse and therefore is crucial to optimum performance. Insight's probes are built and tested to the highest quality control standards to ensure long life and high performance. The Gasket Probe uses the same J-Type thermocouple as the Spring Probe. This probe replaces the gasket on 18mm spark plugs. The J-Type thermocouple has red and white color coded wires. Note that the spark plug plugs in some engines may run 50 to 100 Fahrenheit degrees hotter than the thermowell. The copper gasket can be annealed just like a standard spark plug gasket.
The gasket probe is recommended for use anytime the spring probe cannot be used. Aircraft fitted with thermowell TANIS preheaters should use the CHT Gasket probes.
Installed in aircraft and test flight showed it working fine. John Deasy
INSIGHT CHT GASKET PROBE # 2853
tried 2 other brands before this one, its the best for dynon source of cht from plugs. Worth buying first!!
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The probes end in 2 ring terminals that incorporate a threaded insert. The wires to the instrument are trimmed to length, two ring terminals are crimped on and the ends are screwed together.
Yes, the gasket probe comes as a complete assembly and will ship as shown in the product image.
This has a type J thermocouple.
