Aerospace Logic - Oil Pressure & Temperature Gauge Kit 2-1/4

$1536.00/Each
Quantity
Add to Wishlist
Part# 10-04465
MFR Model# OPT200K

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

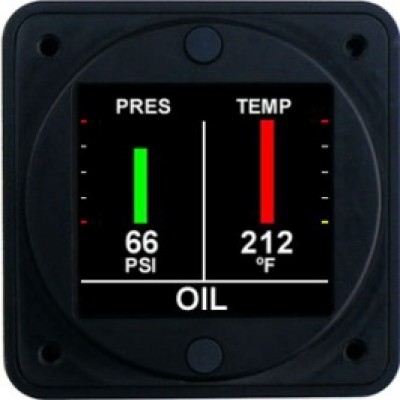

The OPT200 is an advanced, next generation oil pressure and temperature combinational instrument.

Oil temperature functionality is TSO'd and meets the temperature accuracy requirements of SAE AS8005, while oil pressure meets the requirements of AS408C.

Instruments with a part numbers with a suffix “V” include an additiona display screen with a full function voltmeter.

Functional displays include:

  • Real-Time analog data depiction and digital value display for both
    pressure and temperature
  • Graphical trend display of both oil pressure and temperature data
  • Include both sensors
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Excellent replacement instrument,easy to install and very good quality.

Frank H
July 11, 2019

Excellent product. Compact, accurate, super high definition display, perfect finitions. One regret, if the temperature can be display in Farenheit or centigrade, the pressure can only be displayed in PSI, not in bar

Beroud O
August 3, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this Aerospace Logic oil pressure kit FAA TSO Approved?

Yes, this gauge is FAA TSO Approved.

Q: What oil temperature sensor should be used for this Aerospace Logic Oil Pressure and Temperature kits?

This instrument will include both required sensors in the box.

Q: What size is this gauge?

This is a 2-1/4 inch gauge.

Q: Does this Aerospace Logic gauge have an STC document?

No, there is no STC. It is TSO approved.

Q: What is the Oil temperature range on this unit, Where does red line Begin?

Display Units Oil Temperature: 32B:F - 302B:F (User selectable B:F or B:C) Oil Pressure: 0 - 125PSI

Q: Does this Aerospace Logic temp gauge include an 8130 certificate?

No. It includes a Transport Canada Form One release certificate, with a copy of the FAA STC paperwork, and EASA / FAA / TC release information. It does not include a 8130 form, if an export 8130-3 is needed, it must be requested at the time of checkout (additional fees will apply).

Q: Is there an alarm or other indicator that is active when limits are exceeded?

Per the manufacturer, yes.

Q: What size are the temp and pressure probes?

The pressure sender is 1/8 NTP and the temperature probe is 5/8-18 UNF.

Q: Is this FAA Approved for certified aircraft?

Yes, this is FAA TSO approved.
