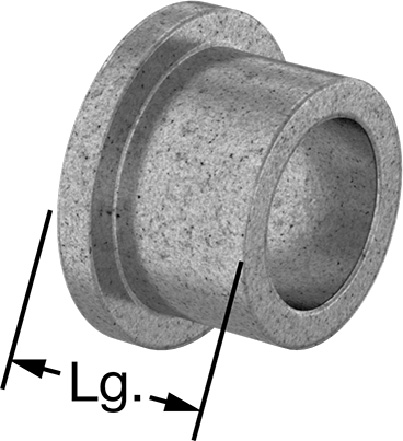

Oil-Embedded Flanged Sleeve Bearing

0 Reviews 0 Answered Questions
$9.65/Each
Quantity
Add to Wishlist
Part# 04-04259
MFR Model# 6338K473

Overview

Startup friction causes these porous bronze bearings to release a thin layer of oil on the bearing’s surface. They are also known as Oilite® bearings.

Note: Dynamic load capacity is the maximum load a bearing can withstand at a given shaft speed. If your application’s load and speed requirements are below the values listed, the bearing will work.

Specifications

  • System of Measurement: Inch
  • Bearing Type: Plain
  • Plain Bearing Type: Flanged
  • For Load Direction: Combined Radial and Thrust
  • Material: 841 Bearing Bronze

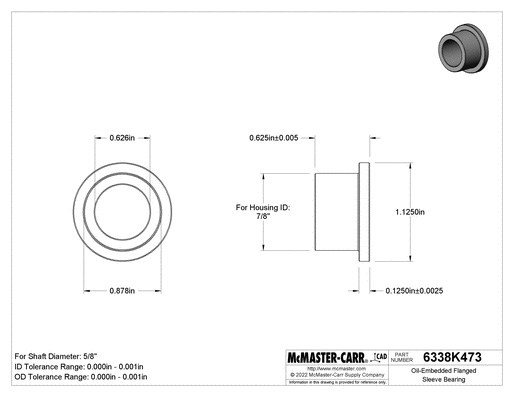

  • For Shaft Diameter: 5/8"
  • ID: 0.626"
  • ID Tolerance: 0" to 0.001"
  • For Housing ID: 7/8"
  • OD: 0.878"
  • OD Tolerance: 0" to 0.001"
  • Length: 5/8"
  • Length Tolerance: -0.005" to 0.005"
  • Flange OD: 1 1/8"
  • Flange Thickness: 1/8"
  • Flange Thickness Tolerance: -0.0025" to 0.0025"
  • Dynamic Radial Load Capacity: 780 lbs. @ 60 rpm
  • Dynamic Thrust Load Capacity: 1,350 lbs. @ 60 rpm
  • Lubrication: Lubricated
  • Lubrication Method: Embedded
  • Lubricant: SAE 30 Oil
  • For Shaft Type: Round
  • Shaft Mount Type: Slip Fit
  • Temperature Range: -35° to 300° F
  • RoHS: RoHS 3 (2015/863/EU) Compliant
  • REACH: REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant
  • DFARS: Specialty Metals COTS-Exempt
  • Country of Origin: United States
  • USMCA Qualifying: No
  • Schedule B: 848330.8090
  • ECCN: EAR99
