CESSNA & BEECH FAA / PMA REPLACEMENT MUFFLERS & EXHAUST COMPONENTS
From $8.50 to $1785.00
| Image | Description | PN | Price | Buy |
|---|---|---|---|---|
 | Cessna 120 & 140 Exhaust System Includes one left and one right muffler, shroud, tailpipe and clamps. | 05-05279 | $1785.00 | |
 | Cessna 150 Exhaust Systems Includes one left and one right muffler, shroud, tailpipe and clamps. | 05-05280 | $1764.00 | |
 | CESSNA 120, 140, 150 MUFFLER LH | 05-05271 | $755.00 | |
 | CESSNA 120, 140, 150 MUFFLER RH | 05-05272 | $569.00 | |
| -- | CESSNA 120, 140, 150 LH SHROUD W/ 2 2" OUTLETS | 05-05281 | $310.00 | |
| -- | CESSNA 120. 140, 150 RH SHROUD | 05-05282 | $293.95 | |

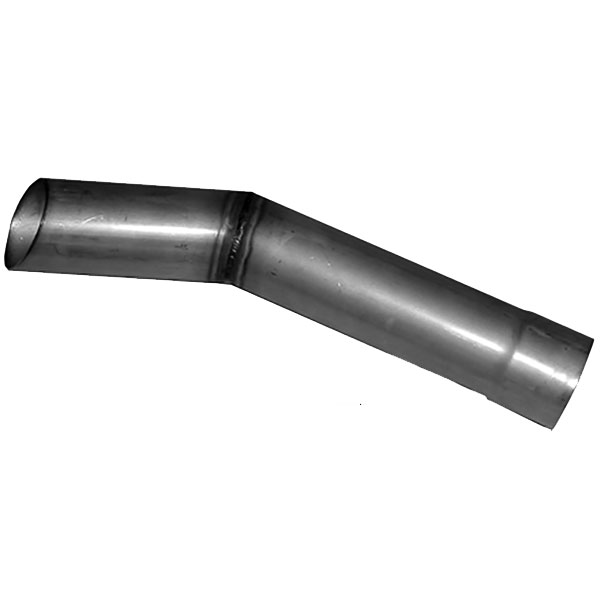

 | CESSNA 150 TAILPIPE, LH | 05-05273 | $183.75 | |

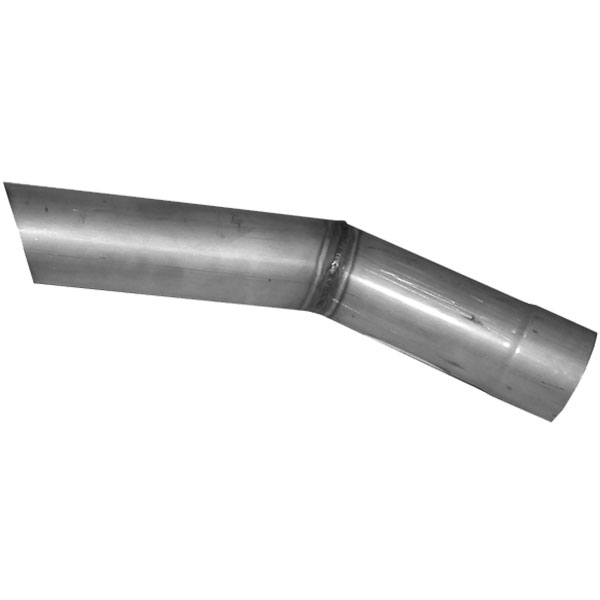

 | CESSNA 150 TAILPIPE RH | 05-05274 | $183.75 | |

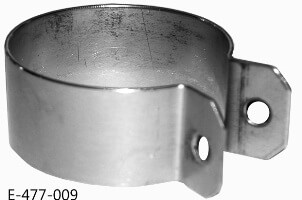

 | MUFFLER TO TAILPIPE CLAMP | 05-05275 | $60.75 | |
 | CESSNA 120, 140 TAILPIPE, LH | 05-05276 | $147.75 | |
| CESSAN 120, 140 TAILPIPE, RH | 05-05277 | $148.75 | |
 | CESSNA 150 TAILPIPE BRACE CLAMP | 05-05278 | $63.75 | |
| -- | S/S LYCOMING FLANGE | 05-05292 | $8.50 | |
| -- | RISER, #4 CYLINDER | 05-05294 | $73.75 | |
| -- | RISER, #1 CYLINDER | 05-05295 | $64.75 | |
| -- | RISER, #3 CYLINDER | 05-05296 | $64.75 | |
| -- | CLAMP ASSY | 05-05297 | $16.50 | |
| -- | MUFFLER SHROUD | 05-05298 | $483.00 | |
| -- | CESSNA 152 MUFFLER ONLY | 05-05299 | $721.00 | |
 | CESSNA 172 MUFFLER, S/N 17259224 TO 59223 | 05-05250 | $662.00 | |
 | CESSNA 180 MUFFLER | 05-05262 | $776.00 | |
 | CESSNA EXTENSION TAILPIPE | 05-05269 | $344.00 | |
 | CESSNA 180 TAILPIPE EXTENSION | 05-05270 | $123.90 | |
 | MUSKETEER MUFFLER | 05-05263 | $604.00 | |
 | MUSKETEER MUFFLER SHROUD | 05-05264 | $303.00 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
Replacement mufflers & exhaust components for Cessna/Beech Aircraft, all are FAA/PMA approved equivalents.
Cessna 120, 140, 150 Exhaust Systems: Include one left and one right muffler, shroud, tailpipe and clamps. Cessna 120, 140, 150, 150A thru H, J, K, A150K, L & M Muffler Systems: Muffler with attached stacks. Original Cessna 120 & 140 shrouds will not fit the mufflers below. Cessna 152 & 152A STC'D Exhaust System: For Cessna 152 S/N 15279406-15283591; F15201429-F15201673; A1520735-1520878; FA1520337-FA1520357. Ideal for homebuilts using 0-235, L2C, N2C and 0-320 Lycombing Engines. Cessna Tailpipe Extensions: Cessna 150, 170 and early model 172 replaces original exhaust pipe Cessna P/N 0450338-66, 0550157-3 and 055015733. Extends 2" past original tailpipe, 2" OD stainless steel, Bolt-on, End cowling smudges and Reduces cabin noise. |
Reviews
Fit was good. the hole for pin was missing but not a biggie, just drilled out the right size and installed the tailpipe on my Cessna 150G. Good quality product.
Amuldeep
March 31, 2021
Q&A
Q: What is the length and OD of the Extended Tailpipe PN 05-05302?
The length of the tailpipe is 12-1/2" long and the OD is 2-1/4".
Q: What is the diameter of the tail pipe clamp P/N 05-05275?
The ID is 1-7/8.
Q: What hardware should I plan to use with the CESSNA 150 TAILPIPE BRACE CLAMP PN 05-05278?
We recommend using stainless 1/4 bolts and all metal lock nuts.
