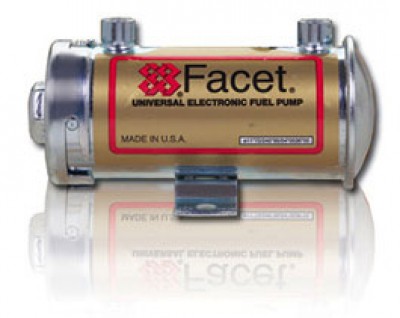

Facet Gold-Flo Interrupter Type Pumps

From $206.95 to $224.95
Facet No. Part No. Price Buy
40131E-12V Neg. Ground, 4-5 psi, 30gph. Incl. anti-siphoning valve. Lift Min. Dry 24"
480545
$211.95
Quantity
476088E - 24V Negative Ground, 4-5 psi, 30 gph Lift Min. Dry 24"
476088
$206.95
Quantity
480534E - 12V Negative Ground, 8-6 psi, 45gph, 1/4-18 fitting Lift Min. Dry 24"
05-00802
$224.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Fuel Compatibility:
All models of the Facet High Performance Gold-Flo Solid State Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.

Reliability:
The new Gold-Flo Solid State Fuel Pump is an enhanced version of our Interrupter model. It has Solid State circuitry and will meet or exceed all performance specifications and is totally interchangeable. (These pumps have demonstrated an endurance life almost double that of the nearest competitor, according to our test data).

Easy to Install-Easy to Service:
Two bolt mounting makes installations easy. Nothing to adjust. For best results, mount the pump close to the fuel tank and below the fuel level. The pump is self-priming to 24 inches vertical fuel lift. Vertical mounting is preferred to assure maintenance of rated pressures. An installation kit is available for replacement applications. The only service normally required is a simple cleaning of the filter and fuel inlet cavity.

Eliminates Vapor Lock:
When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

Features

  • 12 - 24 inches dry lift
  • 20 - 45 GPH
  • 1 - 8 PSI
  • Transient Protection - 24 volt only
  • State of the art Electronics
  • Sealed Electronics
  • Built in Anti-Siphon Valve (Positive shut-off)
  • UL Certified
  • VCA Certified
  • Complies to Mil-std-461D
  • Replaceable 74 micron filter
  • Built in magnet to collect metal particles for additional filtration
  • 1.6 amp average
  • Self Priming and Self Regulating
  • 32 ounces and 5 inches
  • Corrosion Resistant over 100 hours of salt spray
  • Operating Temperature Range: -40F to 180F

Specifications

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

High quality product ⭐️⭐️⭐️⭐️⭐️

Paul P Verified Purchase

476088E FACET GOLD-FLO FUEL PUMP 24V

November 30, 2022

Facet name speaks for itself

Delbert W Verified Purchase

476088E FACET GOLD-FLO FUEL PUMP 24V

March 30, 2022

Direct replacement for my old Bendix and without points that wear out.

John R Verified Purchase

40131E FACET RND SOL ST PUMP

May 29, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: This pump looks exactly like the pump currently on my 1968 Cherokee 140. I've read from various sources that some of these pumps are FAA approved and others aren't. Are these Gold pumps FAA approved for replacement use? I'm wondering if I need an STC or any other applicable paperwork aside from a logbook entry. Thanks in advance.

The Facet pumps we stock are not FAA approved. In most cases they are physically the same, but approved units have to be ordered from the original manufacturer of the aircraft. They own the STC or PMA, not Facet. We can usually special order them for you.

Q: Will these 40131E pumps allow flow through in case of failure? In other words, do they require a separate check valve in parallel to provide fuel flow if the pump fails? Thanks, Peter

Per the manufacturer, the 40131E has an internal positive shutoff valve which is designed to stop fuel flow when the pump is turned off. So to answer your question, NO this pump will not work as a flow thru fuel pump
