| Description | Part Number | Price | Buy |
|---|---|---|---|

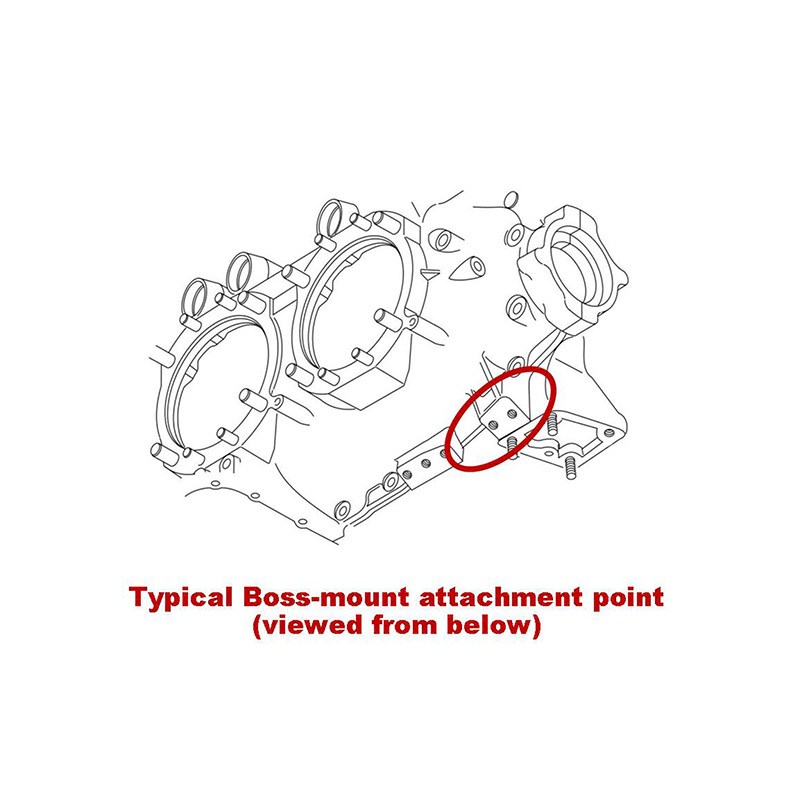

| B&C Lx60 Alternator Boss Mount Kit with LR3D-14 14V Homebuilt | 07-27293 | $1857.00 | |
| B&C Lx60 Alternator Boss Mount Kit with LS-1B Amp 28V Homebuilt | 07-27294 | $1857.00 | |

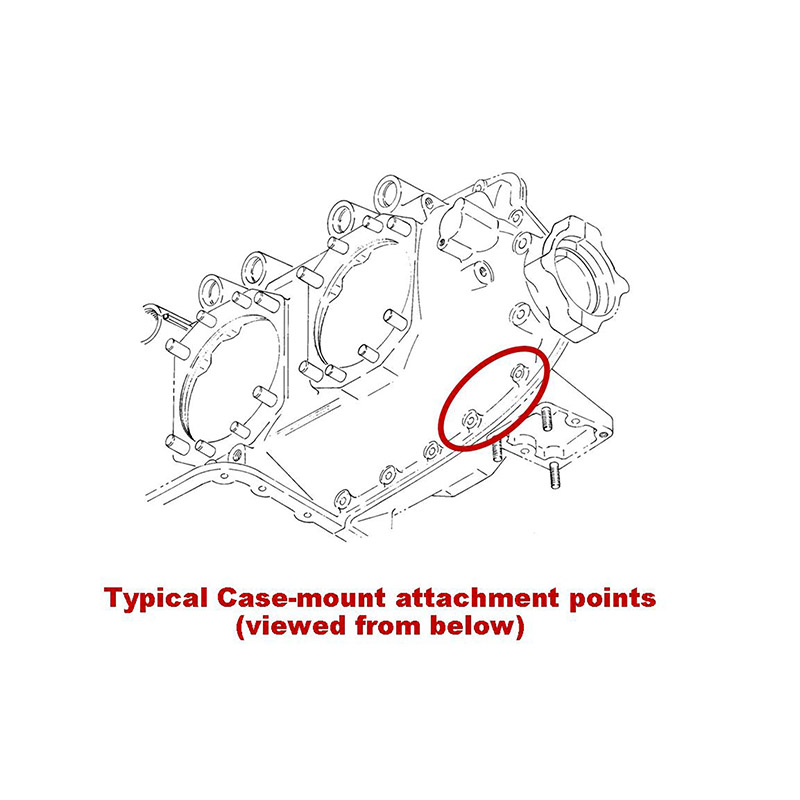

| B&C Lx60 Alternator Case Mount Kit For Other Starter with LR3D-14 14V Homebuilt | 07-27295 | $1857.00 | |
| B&C Lx60 Alternator Case Mount Kit For B&C Starter with LR3D-14 14V Homebuilt | 07-27297 | $1857.00 | |
| B&C Lx60 Alternator Case Mount Kit For Other Starter with LS-1B Amp 28V Homebuilt | 07-27296 | $1857.00 | |
| B&C Lx60 Alternator Case Mount Kit For B&C Starter with LS-1B Amp 28V Homebuilt | 07-27298 | $1857.00 |
- JUMP TO
- Overview
- Documents
- Accessories
- Reviews
- Q&A
Overview
|

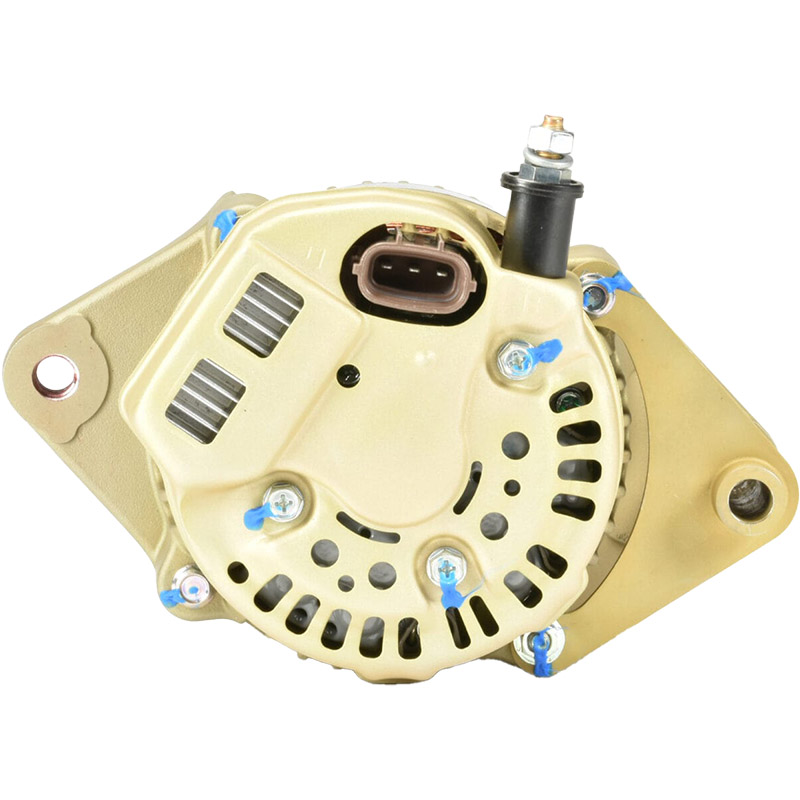

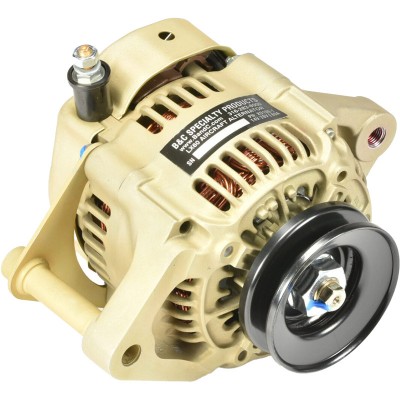

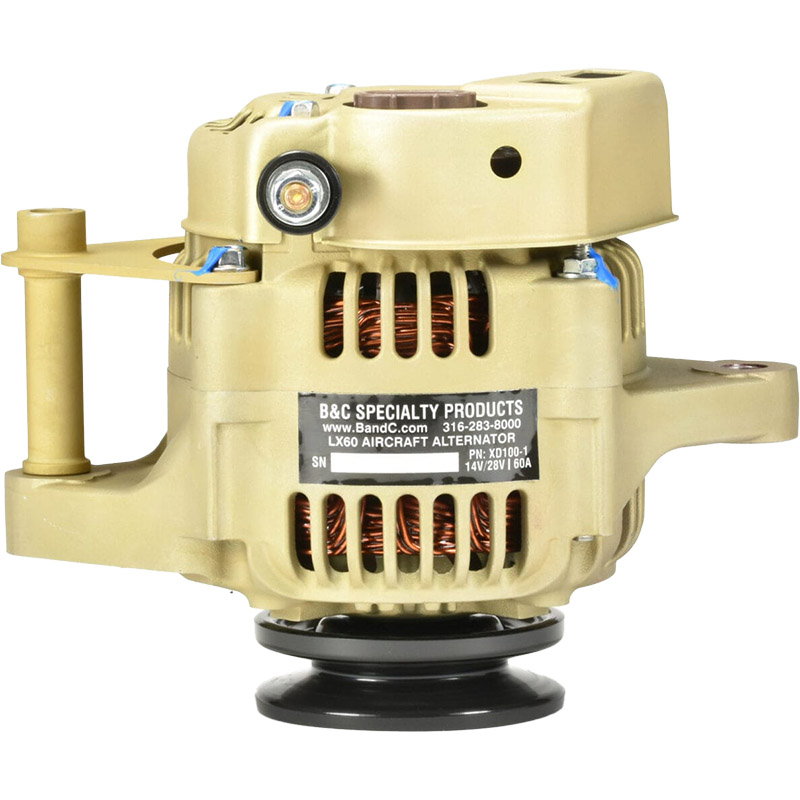

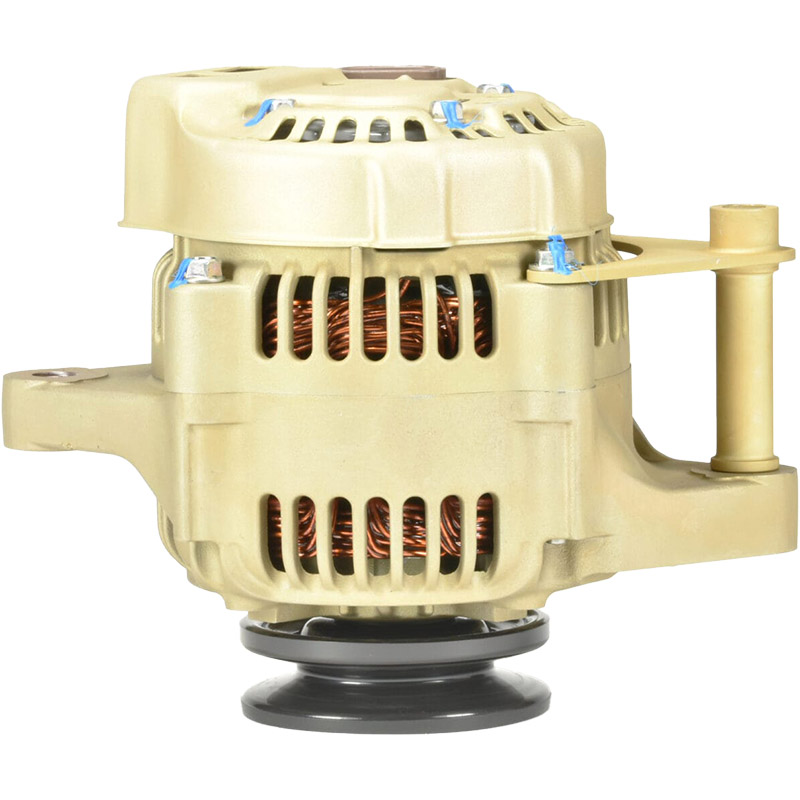

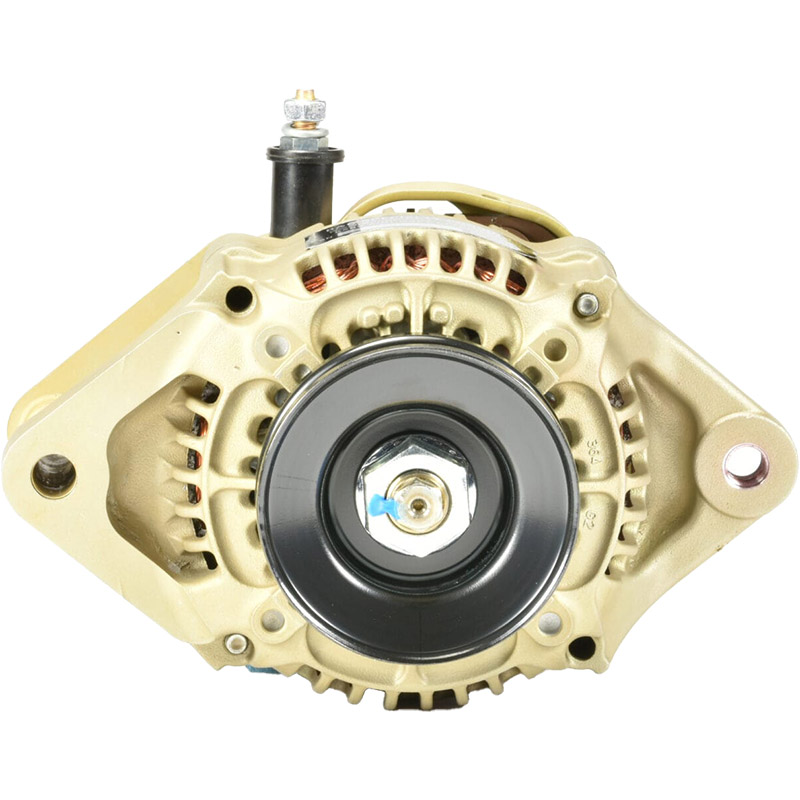

An unshakable commitment to excellence and an unchanging focus on providing genuine value — those are the roots of our new LX60 Alternator. Built on the reliability of our acclaimed L-60 and the superior efficiency of our BC460-H, the LX60 combines robust 60A output and unmatched durability in a compact 7.1 lb. frame. With the features that you would expect from a B&C – heavy-duty sealed ball bearings, two internal cooling fans, and a precision dynamically-balanced rotor – the LX60 is produced to exacting tolerances, with three attachment points for stable mounting, and configured for external aircraft-style alternator control with over-voltage protection and low-voltage warning. Fully compatible with our LR3D-14 or LS1B Controllers – for 14V systems, use the LR3D-14 (or equal); for 28V systems, use the LS1B (only). Each replacement LX60 includes a pre-wired field connector assembly.
NOTE: Use of non-B&C regulators/controllers may damage the alternator. or Experimental Aircraft ONLY. |
