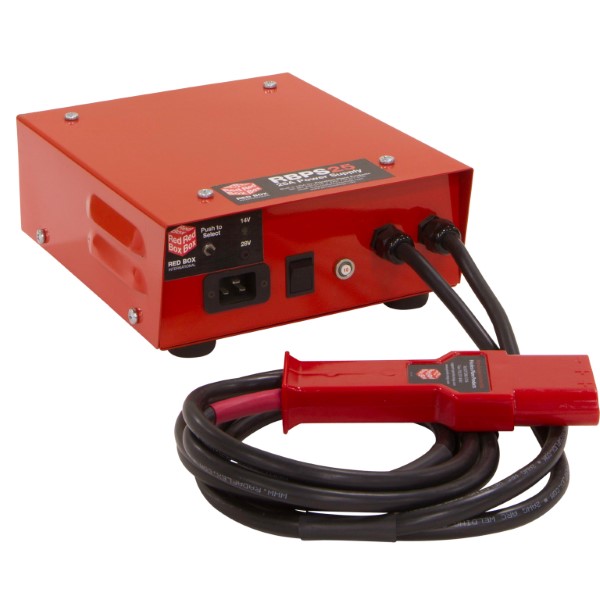

RED BOX AVIATION CONTINUOUS DC POWER UNIT

Output Current up to:
25 Amps50 Amps75 Amps100 Amps
Quantity
Add to Wishlist

Overview

Compact, lightweight and highly portable power units. Red Box systems may be carried safely on board all aircraft.

They are designed to give continuous high quality DC power for crew training, aircraft servicing in the workshop, on the ramp or in the field. This continuous power supply is ideal for diagnostic work, pre-flight checks or for continuous powering of equipment during operations, without draining the onboard aircraft batteries. There is a range of built in safety features and the units are simple to use. This switchable unit will produce a steady 14.4 or 28.8 Volts up to the fully rated output current with power factor correction. The power supplies are multi-fan cooled with built-in thermal management for operation up to 50C ambient environments. The safety features include over current and short circuit protection. The power modules conform to EMC standards for noise emissions and immunity.

Features

  • Direct connection to aircraft or land vehicle
  • Rugged steel case
  • Fan cooled
  • User switchable between 14V and 28V

Safety and EMC

  • EN60950-1: 2006
  • Emission - EN55022-B

Protection

  • Overload
  • Over Voltage
  • Over Current
  • Short Circuit

Documents

In The Box

  • Delivered as standard this unit is supplied with a 2m heavy duty lead, fitted with a 3 pin NATO connector for direct aircraft connection.
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the RBPS50 have a digital voltage and amp readout?

Yes per the vendor.
