Guardian smartPower Single USB 2.7 Amp - Round Faceplate

Add to Wishlist
Part# 13-19775
MFR Model# 75-2


Reliable USB Power in your Panel
Approved for Installation in Certified Aircraft and Rotorcraft!

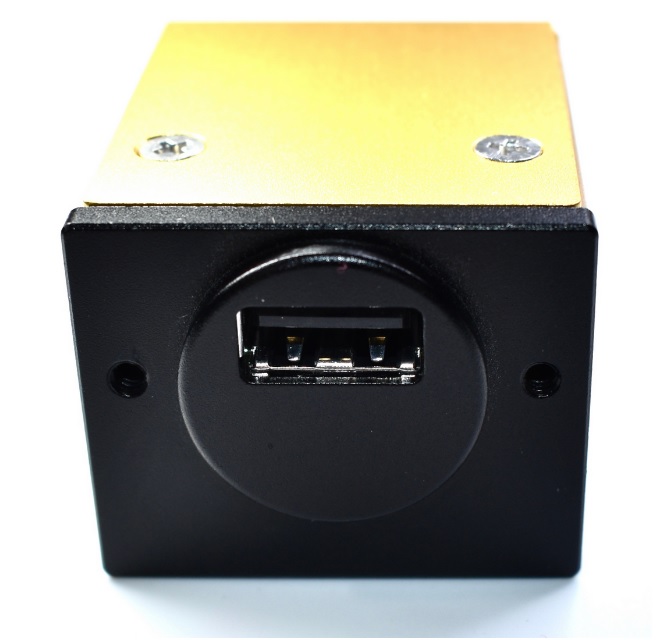

The Guardian smartPower Single USB 2.7 Amp - Round Faceplate is a cockpit flush mounted USB-A power / charging unit designed to provide reliable power for most consumer products with USB charge capabilities such as smartphones and tablets. The Guardian smartPower Single USB 2.7 Amp - Round Faceplate provides 2.7 amps at 5 VDC 0.25 (10 watt). The unit can accept 9-48 VDC aircraft power and will convert down to 5 VDC. The unit features green LED backlit ports for easier use in night flying conditions.

The smartPower unit is a smart USB charger and features a feedback loop to keep the 2.7 amp current stable at all times. The units are EMI shielded and also feature reverse polarity protection.

Available with Round Faceplate Fits a 0.9 round faceplate for panel cuts used for cigarette lighter ports as a replacement.

Approved for FAA Certified Part 23 Aircraft and Part 27 and 29 Rotorcraft
All iFDR Power 250 USB Power Supplies from Guardian Avionics are approved for installation in certified aircraft and rotorcraft under 14 CFR Part 23, 27 and 29 as "Non-Required Safety Enhancing Equipment" (NORSEE) as outlined in FAA memorandum number PS-AIR-21.8-1602. Power supplies and mounts may be installed as a minor alteration.Please refer to this link for the Guardian Avionics NORSEE Letter of Authorization.


  • Smartphones / iPhones / Cell and Mobile Phones
  • Tablets and iPads
  • GPS Units
  • Cameras / GoPros
  • GPS Receivers / Augmenters


  • 2.7 amps (Output Current)
  • Input Voltage: 9 - 48 VDC
  • Output Voltage: 5 VDC +/- 0.25 per port (10 watt)
  • Green LED Internal Backlighting
  • Weight: 2.6 ounces
  • Dimensions: 1.5" W x 1.5" H x 2.1" D (panel cut 0.785" x 0.785")
  • One year limited warranty
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items


GREAT product! Lightweight and easy to install, provides rock solid charhing for my onboard iPad with second port available to passengers.- Otis

March 31, 2019

Great power port. Highest amp rating of all the FAA approved USB power ports (even with both ports in use at the same time). Smallest panel hole so most existing cigarette lighter ports can be converted if there is enough back panel space for this power port. As far as the DSub pins the soldering isnt a big deal but I just ignored the included connector and used a more common standard Dsub connector with quality barrel connectors using a quality crimp tool. Works great. I made a template for the two attachment screws on my computer and printed it out at 100% scale on package mailing label paper. Then stuck it to the panel to drill the holes in the right place. This port has the most power and best bang for the buck compared to all other FAA approved models.

October 9, 2017

I installed the unit in my C182 in 2017. I recently upgraded my tablet from an iPad Air 2 to an iPad Pro 11. The new iPad will not work at all with the Ifdr 250-101. I have contacted Guardian and they confirmed that the new iPad Pros will not work with their unit and they have been unable to provide a fix for the problem.

Barry B
July 25, 2019

I purchased this a couple years ago. It can charge a phone and an iPad, but not two iPads. When I try to charge two iPads, the unit shuts down and wont charge either.

May 21, 2019

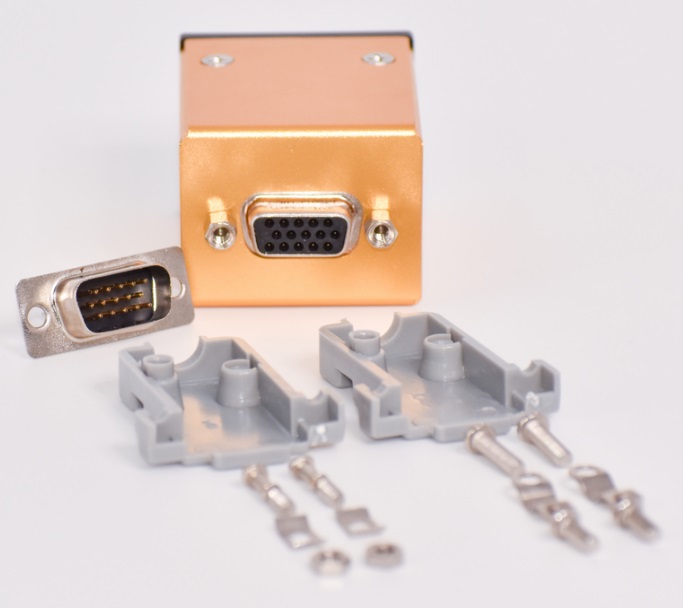

Very disappointed in the unit. The electrical connection is attached to the charger via a DB15 VGA monitor connector that we have to solder and piece together. The homemade connector adds a couple of inches to the depth of the installed unit. Only two terminals are needed. Makes no sense. Also, they do not provide a metal pattern of the panel layout. Good luck with the laying out the counter sunk holes. There are others on the market, think twice before purchasing this unit.

June 9, 2017


Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: We want to install one in our 1999 172 to power iPads, etc. Do we need to add a voltage converter to drop the power from 28 volts down to 12 volts?

No, this unit can be used in either 12v or 28v aircraft environments.

Q: Is the the iFDR Dual USB 250-101 Power Supply for Instrument Panels shielded to prevent radio interference?

Yes, this unit is Electromagnetically (EM) shielded to prevent static and noise on your VHF radio when charging.

Q: I see in your installation drawings that only a circuit breaker is shown. Is it acceptable to install unit with an inline fuse instead and if so what amp fuse is required?

You can use a fuse but a circuit breaker is highly recommended.
