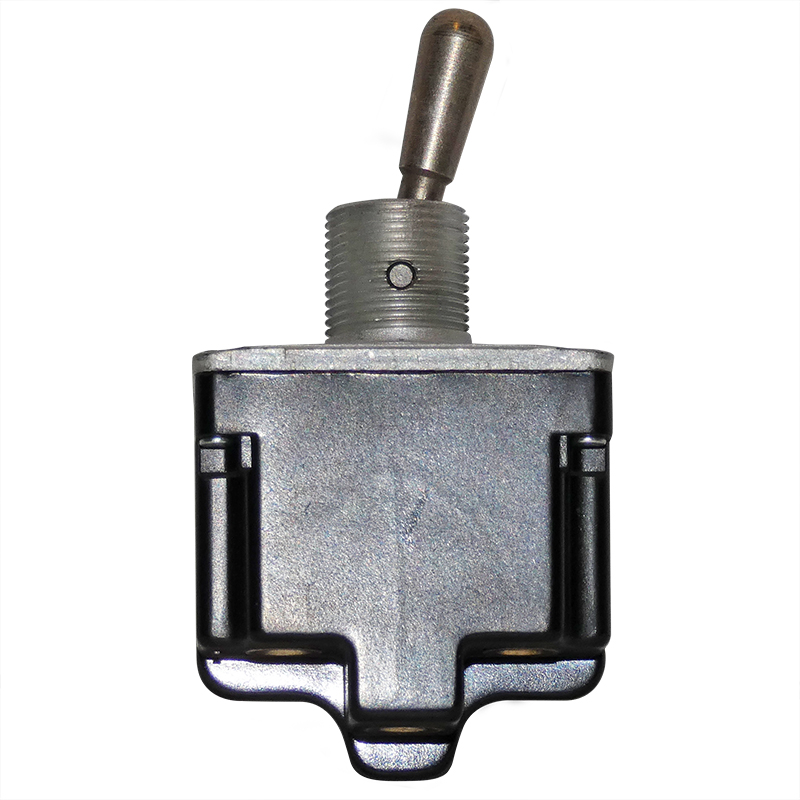

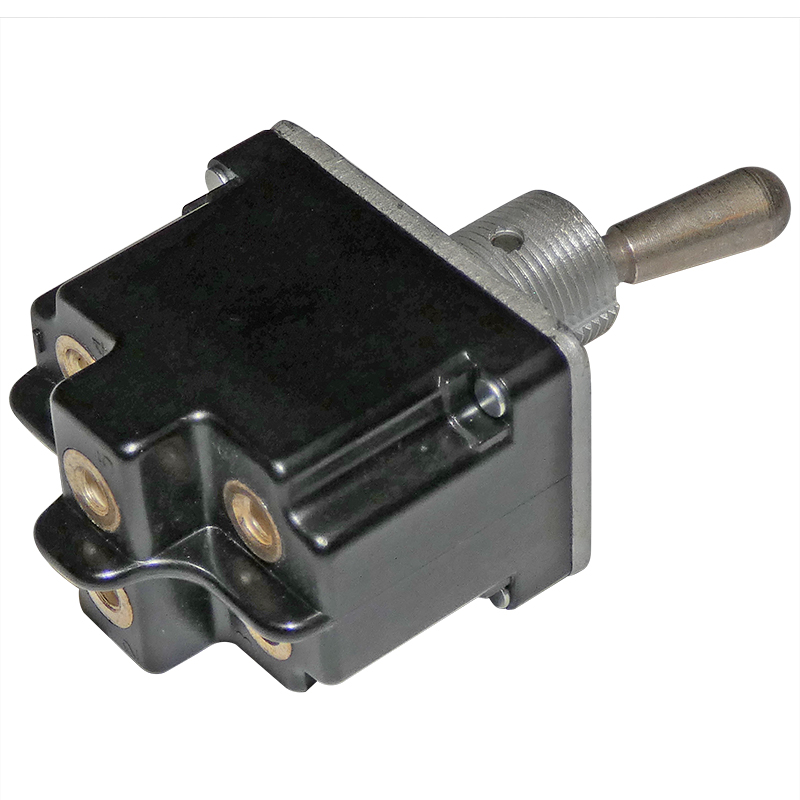

Honeywell MS24524-23 Switch Toggle On/On
MFR Model# MS24524-23
Overview
| Honeywell MS24524-23 Switch Toggle (On/On). |
Specifications
- ECCN (US): EAR99
- Part Status: Active
- Pole Throw Configuration: DPDT
- Actuator Style: Round Lever
- Switch Configuration: ON ON
- Bushing Type: Threaded
- Maximum Current Rating (A): 20@28VDC
- Maximum Power Rating (VA): 745.7@(CSA/UL)
- Actuator Length (mm): 17.27
- Mounting: Panel Mount with Threads
- Termination Style: Screw
- Number of Terminals: 6
- Terminal Length (mm): 3.3
- Seal: Complete/Environment-Proof/Panel/Body
- Seal Location: N/A/N/A/Panel/Body
- Seal Description: Complete/Environment-Proof/N/A/N/A
- Body Orientation: Straight
- Minimum Operating Temperature (°C): -65
- Maximum Operating Temperature (°C): 71
- Thread Size: 15/32-32
- Body Length (mm): 33.5
- Bushing Length (mm): 11.9
- Body Depth (mm): 22.6
- Body Height (mm): 29.46
- Product Length (mm): 33.5
- Product Depth (mm): 22.6
- Product Height (mm): 63.47
Reviews
This is not a locking switch do not let the picture for you I ordered one to use it on my landing gear and when it arrived it did not have the locking mechanism
Verified Purchase
HONEYWELL SWITCH MS24524-23
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is not a locking switch.
Correct, there is not an off position, both sides are "ON".
