GILL^® 7243-14 LT SEALED LEAD ACID BATTERY

(0) review this

Part # 11-13534

Quantity:

ADD TO CART

Pin It

Overview
Application Guide
Specifications
Documents & Warranty
Reviews
Q+A

The 7243-14 is a “sealed lead acid battery upgrade” to the popular Gill® G-243
Maintenance Free –Shipped Fully Charged and No Electrolyte or Water Required
Non-Spillable and Proven for Aerobatic Maneuvering
2 Year Factory Warranty After Installation
Robust Starts, Higher Residual Power & Faster Re-Charge Times
First Capacity Check Not Required Until 18 Months/1800 Hours
Cost Competitive and Best Shelf Life in Lead Acid Chemistry
Advanced Valve Regulated Lead Acid (VRLA) Design
FAA/PMA Approved, TSO Authorized and Tested to DO-160E
LT® Series Batteries Are Fully Recyclable
LT® Series Batteries Ship Hazmat Exempt

Start strong with the Gill® 7243-14 for your 24V Cessna, Cirrus, Piper, Mooney, Commander, Diamond and Maule piston-powered aircraft plus the Sikorsky Schweizer Helicopters. See application chart to locate your aircraft and review your battery options.

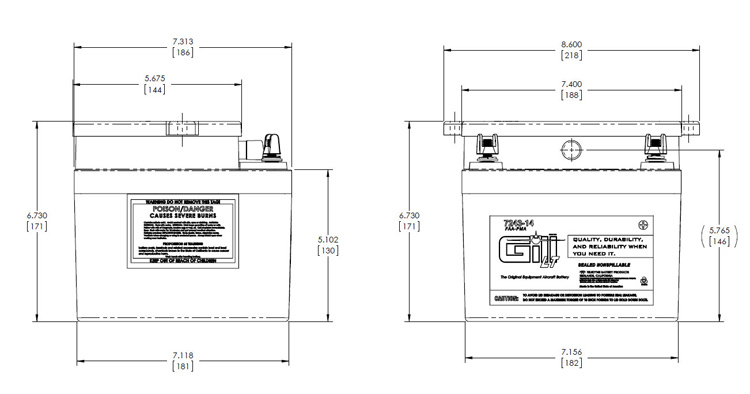

MODEL	VOLTS	AMP HOURS	30 MINUTE CAPCITY	BATTERY DIAGRAM
7243-14	24	14	22	Full Battery Specifications

Manufacturer	Model	PMA SUP. #
Cessna	152, A152, F152, FA152, 172N, 172P, 172Q, 172R, 172RG, 172S, F172N, F172P, FR172K, R172K, 182Q, 182R, 182S, 182T, F182Q, R182, T182, T182T, TR182, A188B, T303	70
Cirrus	SR20, SR22, SR 22, SR22T, SR 22T	70
Commander	114B, 114TC	70
Diamond	DA 40, DA 42	70
Maule	M-4-180V, M-6-180, M-6-235, M-7-235, M-7-235A, M-7-235B, M-7-235C, M-7-260, M-7-260C, M-7-420A, M-7-420AC, MT-7-235, MT-7-260, MT-7-420, MX-7-160, MX-7-160C, MX-7-180, MX-7-180A, MX-7-180AC, MX-7-180B, MX-7-180C, MX-7-235, MXT-7-160, MXT-7-180, MXT-7-180A, M-8-235	70
Mooney	M20J, M20K, M20L, M20M, M20R, M20S, M20TN	70
Piper	PA-28-161, PA-28-181, PA-32-301FT, PA-32-301XTC, PA-32R-301 (HP), PA-32R-301(SP), PA-32R-301T, PA-46-310P, PA-46-350P	70
Sikorsky	269C, 269C-1	70

24
Type: Sealed
Weight: 30
1 Hr (C1) 14
30 Min (2C) 22
Electrolyte: Not Needed

Does the Gill LT7243-16 have more cranking power than the LT7243-14? Do both have more power than the G-243?
The 7243 is rated with a higher IPP-IPR than the dry cell batteries. Also, the 7243 is a VRLA battery.

What is a VRLA battery?
VRLA stands for valve regulated lead acid.

Do Gill batteries have a date code on them, and were is it located?
All batteries are laser engraved with the date of manufacture. It will be in different locations for different batteries.
