Concorde RG-390E/LH Aircraft Heated Battery

$10553.00/Each
Quantity
Add to Wishlist
Part# 11-11723
MFR Model# RG-390E/LH

Overview

Concorde® recombinant gas (RG® Series) valve regulated lead acid (VRLA) heated batteries for engine starting and emergency / essential power applications are constructed with cutting edge Absorbed Glass Mat (AGM) technology. Concorde’s proprietary PolyGuard® Microporous Polyethylene Separator shields the positive plates against shorting, shock or vibration. No other manufacturer offers this dual layer insulation protection feature.

The RG-390E/LH is a Concorde® Platinum Series® Aircraft Battery. The Platinum Series® is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.
  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Low impedance design
  • Maintenance free
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Internal AC Heater - 115 VAC
  • Internal DC Heater - 28.25 VDC
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness
  • Shipped fully charged
  • RG® Series batteries ship HAZMAT EXEMPT
RG-390E/LSH is a powdered coated aluminum container with vent tubes, fabric lifting straps and stainless steel hold down bar.

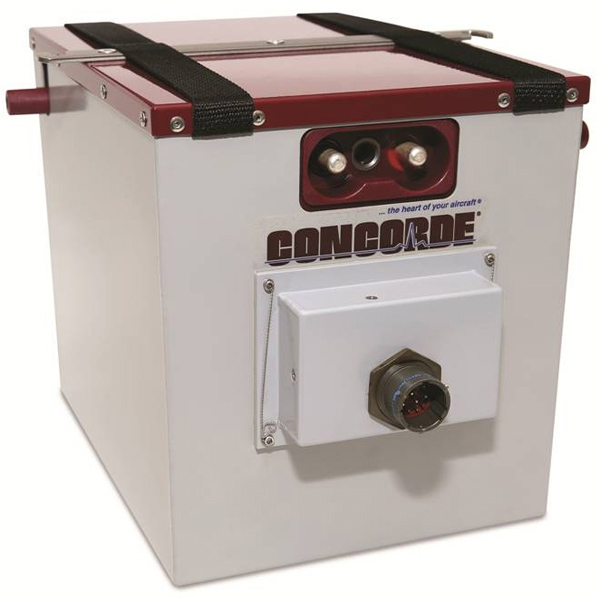

Concorde RG-390E/LH assembly as shown in the photo above consists of the RG-390E/LH battery and a Heater Control Unit (HCU). HCU types vary in style for use in multiple configurations.

Specifications

  • Primary Aircraft Purpose: Turbine Starting Aircraft Battery
  • Voltage: 24v
  • Rated Capacity C1 = 1 hr. rate in ampere hours: 28.00
  • Max Weight: 64.00 lb / 29.0 kg
