LED Replacement Bulb For Beacons

35 Reviews 6 Answered Questions
Select Color:
Cool WhiteRedGreen
Quantity
Add to Wishlist

Overview

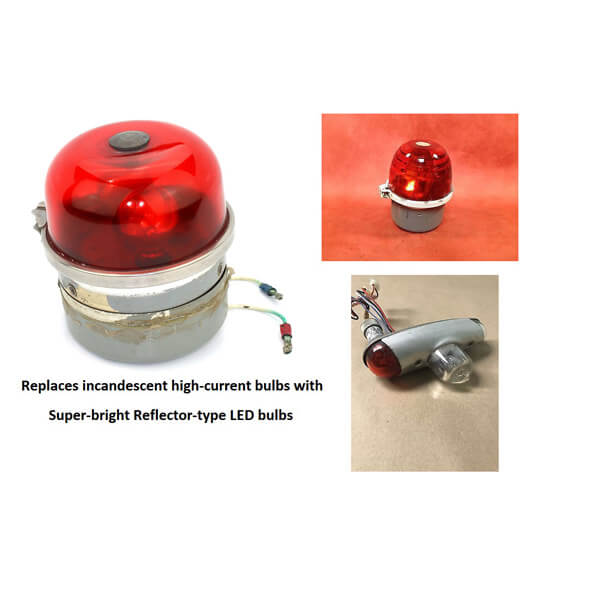

An affordable, long life, super-bright LED replacement for high-current demand incandescent bulbs for Whelen/Grimes Rotating Beacons and position lights.

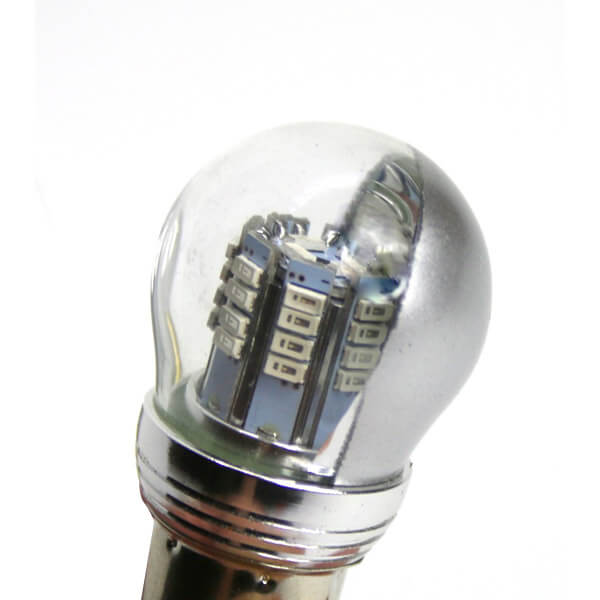

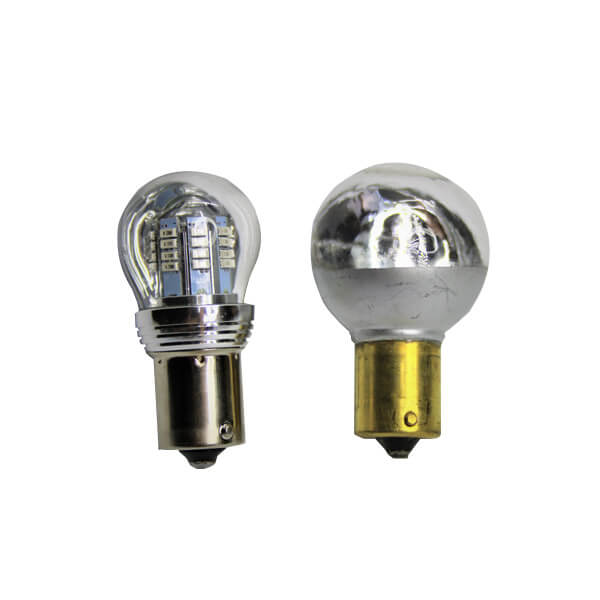

This glass dome LED is an exact replacement for BAY15s-base incandescent bulbs. Super bright 3W design. Mirror-gloss reflector concentrates and directs lighting.

Very low power consumption. Cool white LEDs are super-bright (300 lumens). Mirror-reflector mimics OE bulb function and ensures a bright rotating-light effect. Exact fit replacement in most older rotating beacons

Note: Not suitable for flash-tube type strobes.

Features

  • Super bright cool white output
  • Replaces common Grimes / Whelen incandescent reflector bulbs (12V or 24V)
  • Sealed glass dome for superior dust/moisture resistance
  • Super bright 3W design – brighter than incandescent it replaces
  • Low current consumption – about 12% of an similar incandescent
  • Exact fit replacement for common Grimes / Whelen bulbs used in rotating beacons and position lights
  • Experimental Aircraft Only (for Certified aircraft - these bulbs meet FAA illumination guidelines but have no STC/PMA)

Specifications

  • BAY15s base (single contact, dual off-set retainers)
  • Exact replacement for Grimes/Whelen/GE incandescent reflector bulb
  • Rated at 50,000 hours
  • 300 lumens
  • Power consumption is less than 220mA at 13.8VDC
  • Mirror-gloss reflector

Benefits

  • Super bright 3W design
  • Low power consumption (less than 220mA)
  • 10-36VDC (works on both 12V and 24V electrical systems)
  • Cool White LEDs and mirror-gloss reflector produces a very bright lighting effect
  • Long life LEDs – rated at 50,000 hours

In The Box

  • 1- BAY15s bulb,
  • 1- Reflector-series, cool white LED
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Replaced Whelen incandescent bulb. Works perfectly and much lower current draw. Great visibility.

Stephen A Verified Purchase

Reflector Series LED Replacement Bulbs Cool White
April 8, 2026

Bright LEDs nice replacement, much brighter than standard issue

Anthony L Verified Purchase

Reflector Series LED Replacement Bulbs Cool White
December 15, 2025

This was a great upgrade! It fit perfect unlike some other reviews and when used with the stock colored glass lens it was easily twice as bright as the factory light. If used with the clear glass cover lens I would say it is 3 times brighter than stock!

Stephen O
October 30, 2025

5-Stars on this product

Michael L Verified Purchase

Reflector Series LED Replacement Bulbs Cool White
August 21, 2025

Replaced a 21W incandescent bulb with a 2W LED that is brighter in lumens as well. It was ridiculously expensive, but, hey, I’ve spent more on dumber stuff, so I’ll take the “win” and move on with my highly impractical Starduster Too.

Scott W Verified Purchase

Reflector Series LED Replacement Bulbs Green
July 5, 2025

Brighter than my old bulb. So, take care installing it. Its built weak. Be carefull when turning it in the socket

Daniel P Verified Purchase

Reflector Series LED Replacement Bulbs Cool White
May 28, 2025

Very bright and easy to install

Chris C Verified Purchase

Reflector Series LED Replacement Bulbs Red
March 26, 2025

Very bright and easy to install

Chris C Verified Purchase

Reflector Series LED Replacement Bulbs Green
March 26, 2025

Easy and fast improvement for an airplane owner to improve aircraft visibility for safety. Put the latest technology in your old can.

Sam M Verified Purchase

Reflector Series LED Replacement Bulbs Green
February 19, 2025

I am very happy with the two LED bulbs I put in my rotating beacon, much brighter on less power draw

Paul B Verified Purchase

Reflector Series LED Replacement Bulbs Cool White
July 23, 2023

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will Part# 13-22036 replace GE1939X 28V?

It will not, the posts on 13-22036 are offset and they are level on GE1939X.

Q: Does it flash on and off on its own, or does it need to be wired through a flasher?

No. This bulb does not have an internal flasher.

Q: Is the mirro-gloss reflector material inside the glass bulb or coated on the outside? Can the reflector material be easily removed from the bulb without damaging the bulb glass to make it 360 deg illumination?

This is coated on the outside and it could probably be removed. Removal would be at your own risk and could damage the bulb.

Q: Is this a replacement for NLI-7512-12?

Yes this is the led replacement for a 7512 style bulb.

Q: What is the overall height of this bulb?

1.75 overall.

Q: does this replace a whelen w1290-14? and does it come with a clear lens?

Yes, this can replace the W1290-14. No this will not come with a clear lens.
