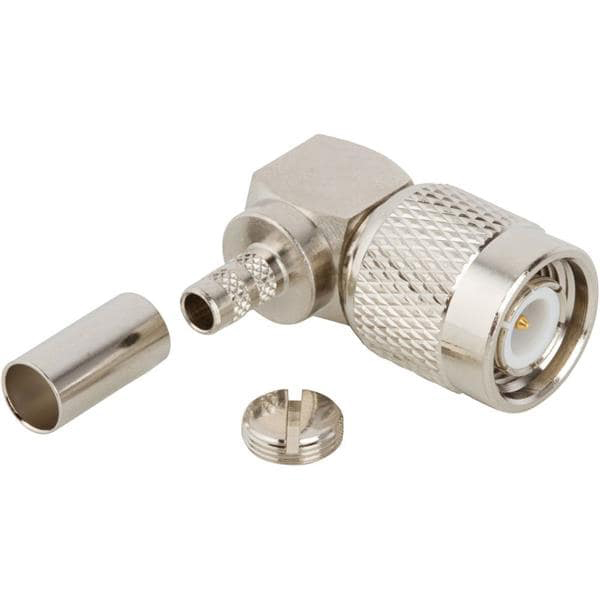

AMPHENOL TNC 400 RIGHT ANGLE MALE

3 Reviews 2 Answered Questions
$10.50/Each
Quantity
Add to Wishlist
Part# 11-15368
MFR Model# 122430

Overview

RF Connectors / Coaxial Connectors TNC R/A PLUG RG55 223 142 400.

Amphenol RF TNC Threaded Connector Series are miniature, threaded weatherproof units with a constant 50Ω impedance that operate from 0-11GHz. There are two types of TNC connectors: Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.Many TNC connectors are recognized under the component program of Underwriter's Laboratories and have undergone stringent testing from an independent laboratory.

Specifications

  • Product Category: RF Connectors / Coaxial Connectors
  • Manufacturer: Amphenol
  • RoHS: RoHS Compliant By Exemption Details
  • Product: Connectors
  • RF Series: TNC
  • Gender: Plug
  • Impedance: 50 Ohms
  • Maximum Frequency: 11 GHz
  • Termination Style: Cable - Crimp
  • Orientation: Right Angle
  • Mounting Type: -
  • Cable Type: RG-55, RG-142, RG-223, RG-400
  • Packaging: Bulk
  • Body Finish: Nickel
  • Body Material: Brass
  • Brand: Amphenol RF
  • Contact Material: Brass
  • Contact Plating: Gold
  • Contact Termination: Solder
  • Coupling Mechanism: Threaded
  • Isolation Type: Not Isolated
  • Mating Cycles: 500
  • Series: TNC
  • Factory Pack Quantity: 1
  • Voltage Rating: 500 V
  • Unit Weight: 0.697013 oz

Documents

  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Submit a Review

Right angle TNC connector worked well, need to solder center wire but the fitting crimped well on RG400 . I had tried the straight TNC fitting but the crimping barrel was too stiff and did not grip RG400 and the fitting came apart, breaking center pin. The crimp tool was set at proper dimension.

Gary K
February 18, 2021

Needed two of the right angle TNC connectors for a GDL-82 Install in my Pitts S2B. Worked Perfect! Make sure you have the correct crimping tools for this connector and any BNC connectors. I used RG400 Coax for my install, and these TNC connectors made the GPS antennae install clean.

Dave H
January 10, 2020

This connector is well made and easy to install.

Rusty
October 27, 2018

Q&A

Submit
Q: The description says miniature but the connector looks like normal size. I need a threaded 90 degree male for my gps antenna. Is this a normal sized connector?

This is a standard TNC male connector. If your antenna has a TNC female connector on the end, it will fit it.

Q: Trim and connect to coax. Is the wire soldiered to the pin?

Yes, the center conductor is soldered onto the connector. The barrel is crimped on.

View in Catalog

View Image View in Catalog
