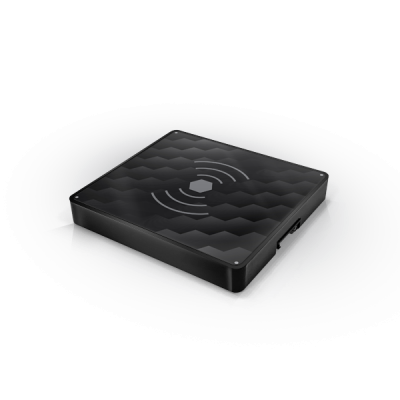

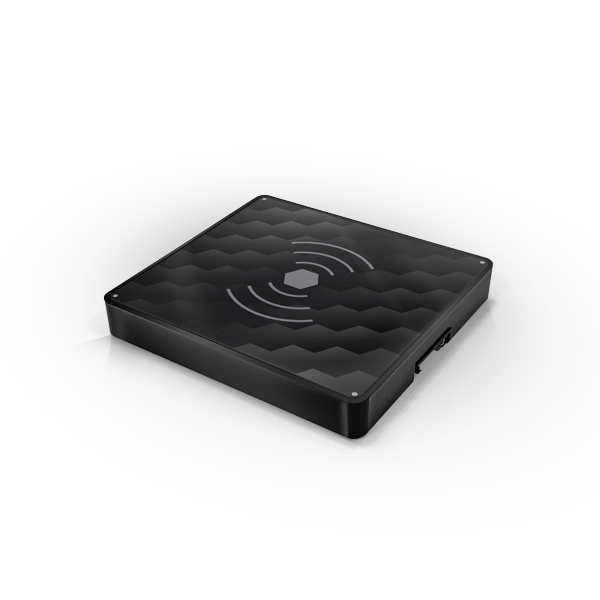

True Blue Power TW15 Wireless Charger 15W 6430015-21

0 Reviews 0 Answered Questions
$913.00/Each
Quantity
Add to Wishlist
Part# 10-07770
MFR Model# 6430015-21

Overview

Charge personal electronic devices, including smartphones, earbuds, and more with True Blue Power’s second-generation wireless chargers. The quick-charging TWC15 Wireless Charger can be mounted in a variety of locations throughout the aircraft, is quick charging, and Qi/Qi2 compliant.

Features

  • Output Power: 15 watts (maximum)
  • Input Power: 26 watts (maximum)
  • Input Voltage: 12 – 32 VDC (2.2A at 14 VDC and 0.9A at 28 VDC)
  • Charging Depth: Up to 0.4” (10 mm)
  • Charging, Charge Complete and Fault status indication
  • Short circuit, power surges, overload, over-temperature, reverse polarity and foreign object detection protection
  • Ideal for in-seat, cabin and cockpit applications
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Output Power: 15 watts (maximum)
  • Input Power: 26 watts (maximum)
  • Input Voltage: 12 – 32 VDC (2.2A at 14 VDC) (0.9A at 28 VDC)
  • Charging Depth: Up to 0.4” (10 mm)
  • Weight: 5.0 ounces (141 grams)
  • Dimensions: 2.28″L x 2.45″W x 0.39″H
  • Mating Connector Kit: P/N 9019739-1 (included)
  • Mounting: (4) #2-56 threaded holes
  • Installation: In-seat, cabin and cockpit
  • Case: Anodized aluminum, black
  • Certification:
  • FAA TSO C71
  • RTCA DO-160G
