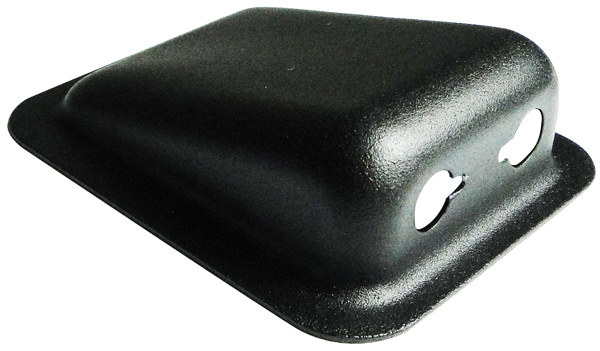

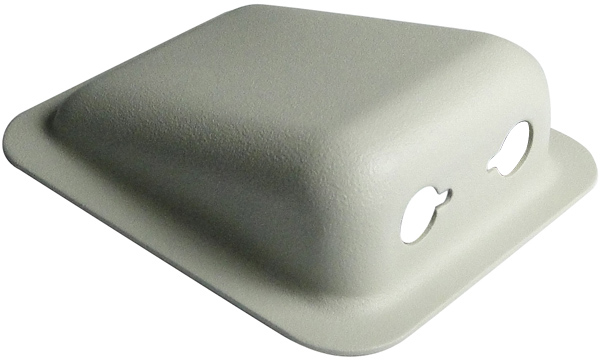

Metal housing available in Powdercoat finish, 2-hole .380 w/key, can be used on mic & phone jacks, intercoms, fuses, switches etc. Can mount with (4) small screws on outer flange.
(Flange NOT predrilled & hardware NOT included)

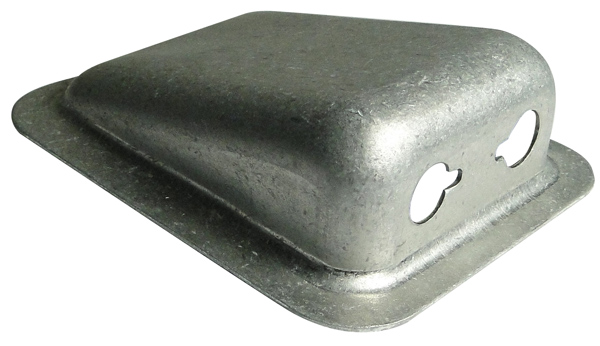

Powdercoat finish Aluminum .040
Dimensions W 2.9" X L 3.56" to outer edge of flange X H 1.06
Outer flange 1/4"
Holes .380 dia x 1.0 between centers
Was supposed to be finished but came bare aluminum.
SURF MTD MIC & PHN JACK HS ALM
These are ideal for mounting mic and audio jacks, either surface mounted or recessed. First off, enlarge the jack holes if necessary, with a correctly sized step drill. If you find that the angle of the installed jack will not allow the plug to be inserted, simply use a punch, inserted into the jack, to slightly bend the jack outward to allow the plug to be inserted without interference. When surface mounting, a hole large enough to insert a jack, must be drilled. This will be hidden when the housing is attached to the panel. If you flush mount the housing, cut a square hole in the panel, JUST large enough to allow the body of the housing to drop in, leaving the rim of the housing on the surface of the panel. These are extremely handy items due to their versatility. Just have to use some imagination.
Quality material, and great price.
I am not sure about the other low reviews on this product. Put in one two-jack and one four-jack in the back of a cabin Waco for a PS 3000 system. Jacks fit perfect and easy to install. Bought the aluminum one and powder coated to match. NO issues.
There are many variety of this housing with different hole designs check with AS. Also the connectors can be first installed in housing then can be easily be bent for wiring or desired plug angles.
Appears to be well made and was as advertised. Usual great service and delivery
Does what it needs - simple. Basic. I ended up having to use a step-bit to ream out the holes for the jacks. I needed to go up a size to accommodate the insulating washers. Not a big deal. I also drilled out 4 corners so I could use sheet metal screws to surface mount these.
As others have stated, to use the shoulder washers, one has to modify (increase) the hole size. Not a big deal, but shouldnt be required.
Lightweight and attractive, this housing would be 5 stars if one of the holes was large enough to properly mount the mic jack without grounding it to the jack. As received, both holes are the correct size to mount a phone jack. Mounting holes have to be drilled for surface mounting.
this unit will not work in a recessed manner
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, both sides are powder coated.
