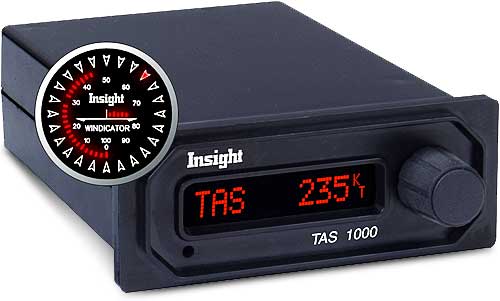

Insight Tas 1000 Multi-Function Data Source

Select Model:
with Windicator (Front Mount)with Windicator for TurbosWindicator only (Front Mount)Windicator only (Rear Mount)with Windicator for Jets
Quantity
Add to Wishlist

Overview

Required Order Form must be completed prior to order.

Today's modern avionics integrate many functions with your GPS, but standard installations leave many important features untapped. The TAS 1000 Multi-Function Data Source was specifically designed to supply all the information needed to fill in the missing pieces of your GPS or MFD display in real-time. TAS 1000 provides the pilot with a wealth of useful information all based on real time measurements of airspeed, altitude, temperature, fuel flow, heading, ground speed and track. Designed to interface with many brands of GPS, TAS 1000 unlock many previously hidden data pages in most GPS navigators, In addition to TAS 1000s in flight advisory function, TAS 1000 can also serve as a backup altimeter, airspeed indicator or fuel flow meter. The TAS 1000 is designed for use in any piston, turboprop, or jet aircraft and provides a full compliment of features when interfaced to a slaved compass system or HSI, fuel transducers, and compatible GPS system. TAS 1000 will deliver a useful subset of features even if all the interfaces are not available.

The Windicator is an integral part of the TAS1000 system. It presents a previously unavailable graphical display of the winds aloft in real time. The Windicator information alone is so useful that it makes the TAS 1000 installation worthwhile. TAS 1000 system options include an altitude encoder to provide altitude information to a transponder or GPS unit as well as alerting the pilot with overspeed, altitude, approach & altitude difference alerts.

Features

Air Data Instrument
Pressure Altitude
Barometric Setting
Density Altitude
Density Altitude Difference
Indicated Air Speed
True Air Speed
Ground Speed
MACH Number
IVSI
Climb/Descent Gradient
Total Air Temperature
Static Air Temperature
ISA Temperature
Battery Voltage

Built-In Alerter Instrument
Altitude Alerts

Encoder Module Instrument
Converts Altitude To Gray Code - For Transponder or GPS
Overspeed Warning

Fuel Data Instrument
Total Fuel Flow
Total Fuel Used
Total Fuel Remaining
Left Fuel Flow
Left Fuel Used
Right Fuel Flow
Right Fuel Used
Fuel Flow Left/Right
Fuel Efficiency

Wind Aloft Data Instrument
Wind Speed
Wind Direction
Wind Component
Wind Correction Angle

Jet Data Instrument
Take-Off Decision Speed
Rotation Speed
Take-Off Distance
Take-Off Power Setting
Climb Speed
Approach Speed
Landing Distance
Current Aircraft Weight
Static Error Correction

Required Order Form

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the TAS-1000 interface wit a King KLN 90B?

Per the manual, yes this will interface with a KLN 90B.
