RAMI AV-5 Base Station Antenna

$293.95/Each
Quantity
Add to Wishlist
Part# AV-5
MFR Model# AV-5

Overview

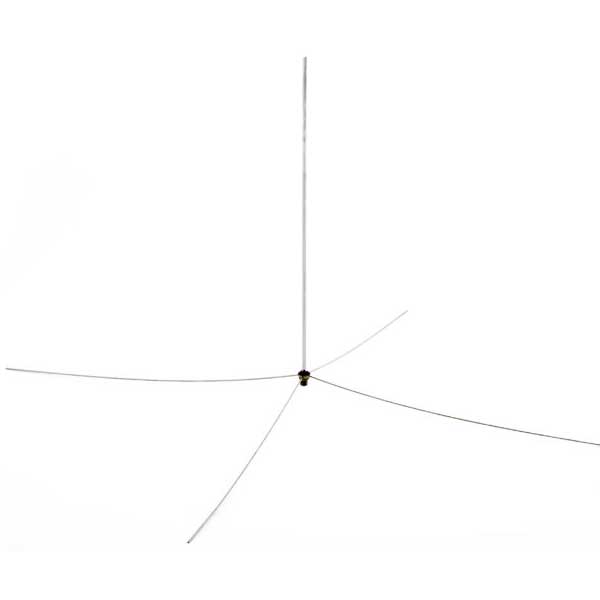

The AV-5 is an economical Ground Plane base station antenna. It is ideally suited for use with Unicom transceivers and is field tune-able for the frequency band desired. The radial arm angle is designed to give optimum VSWR at the tuned frequency. Durably constructed of high quality materials for a long operational life, the antenna is designed to withstand wind speeds up to 100 mph.

Specifications

  • Application: VHF Communications
  • Frequency: 118 to 137 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 1.5 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type PL-259
  • Max Weight: 1.0 lb
  • Max Height: 34"
  • RF Power Capacity: 100 Watts

Documents

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

A bit flimsy. Got what I paid for. Works great.

Avionique.ca Verified Purchase

RAMI AV-5 BASE ANTENNA

November 16, 2021

Looks like this is what I wanted. Didnt need extra radial.

Don B
August 11, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How does the AV-5 mount on the roof?

Please refer to the documents tabs as we added the install manual which will clarify.

Q: Rami says the connector is a SO239 which is female version of PL259. But you guys state that it’s PL259 which is the male side of SO239………. Sooo, which one is actually on this antenna? The female SO239 or male PL259?

The antenna will have the SO239 and requires the PL259 to connect.
