Home - Airframe Parts - Baffling Material - Cessna - 180 / 182 Early Models

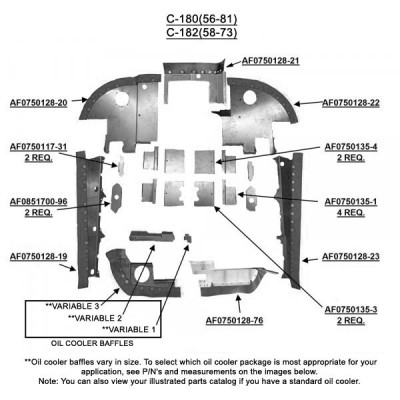

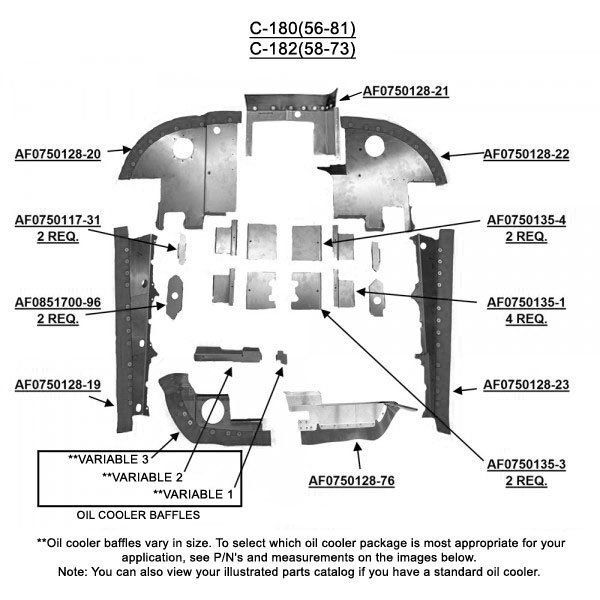

CESSNA 180 (56-81) / 182 (58-73) ENGINE BAFFLE COMPONENTS

See Below for Parts, Pricing, and Ordering

From $39.90 to $537.00

(0) review this

ADD TO CART

Pin It

Enter the quantity desired of each item in the Buy column.

Description	Part Number	Price	Buy	Sub-Total
AF0750117-31 BAFFLE COMPONENT	05-01582	$83.75
AF0750117-30 BAFFLE COMPONENT	05-01552	$68.90
AF0750128-19 BAFFLE COMPONENT	05-01530	$220.95
AF750128-20 BAFFLE COMPONENT	05-01528	$537.00
AF0750128-21 BAFFLE COMPONENT	05-01531	$162.75
AF0750128-22 BAFFLE COMPONENT	05-01533	$537.00
AF0750128-23 BAFFLE COMPONENT	05-01532	$220.95
AF0750128-76 BAFFLE COMPONENT	05-03182	$286.95
AF0750135-1 BAFFLE COMPONENT	05-01536	$109.85
AF0750135-3 BAFFLE COMPONENT	05-01540	$52.99
AF0750135-4 BAFFLE COMPONENT	05-01561	$52.99
AF0750148-1 BAFFLE COMPONENT	05-01544	$85.75
MCFARLANE AF0750148-20 BAFFLE ASSEMBLY	05-20117	$85.75
AF0750152-2 BAFFLE COMPONENT	05-01556	$39.90
AF0750152-3 BAFFLE COMPONENT	05-01554	$45.99
AF0755002-3 BAFFLE COMPONENT	05-01546	$83.85
AF0755002-31 BAFFLE COMPONENT	05-01547	$83.85
MCFARLANE AF0755002-90 BAFFLE ASSEMBLY	05-20118	$85.75
MCFARLANE AF0755050-9 BAFFLE ASSEMBLY	05-20603	$361.00
AF0755050-10 BAFFLE COMPONENT	05-01542	$356.00
AF0755050-11 BAFFLE COMPONENT	05-01543	$354.00
AF0755052-1 BAFFLE COMPONENT	05-01541	$356.00
MCFARLANE AF0755149-1 OIL COOLER BAFFLE	05-20604	$361.00
AF0851700-96 BAFFLE COMPONENT	05-01538	$49.50
MCFARLANE AF1250134-2-WELD WELDED PLATE	05-20605	$106.95
Add To Wishlist				Current Total

Click Add to Cart to add them to your shopping cart
or Add to Wishlist to store them for ordering later.

Overview
Eligibility
Alternate Items
Reviews
Q+A

Engine Baffle Components for Cessna 180 (56-81) / 182 (58-73).

Airforms is the premier manufacturer of FAA-PMA replacement baffle components.

Individual components only with Black Seals and no Powder Coating.

Note:

If aftermarket components of differing dimensions have been installed, it is the installer's responsibility to adjust the baffles to fit. Components include: starters, alternators, exhaust, etc.
Mounting hardware is not included (nuts, bolts, screws, washers, retaining springs, and Tinnerman clips).

C-180 (1956 - 1981)
S/N 32151 thru 53203
C-182 (1958 - 1973)
S/N 34754 thru 18262465
FAA-PMA Approved
Engine: Continental O-470 -L, -R

Do the selected baffles come with the seals pre-installed, or must the seals be ordered separately?
Yes, they come with the seals pre-installed. You can order these without the seals installed as well. They will come with the product separately along with the hardware for installation. Just make sure you mention this in the "special instructions" box after you add this to your cart.

Part Number	Description	Price

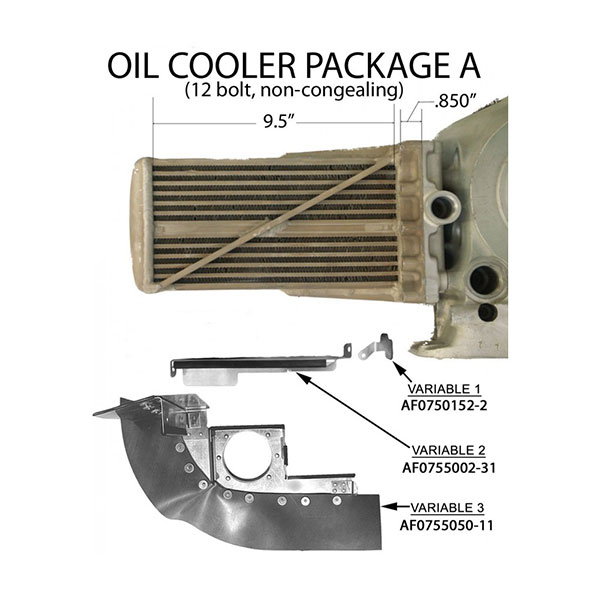

05-22573	CESSNA 180 1956-81 182 58-73 PKG A ENGINE BAFFLE KIT, BARE, BLACK SEALS	N/A	Click here for details
05-22574	CESSNA 180 1956-81 182 58-73 PKG A ENGINE BAFFLE KIT, BARE, BLUE SEALS	N/A	Click here for details
05-22575	CESSNA 180 1956-81 182 58-73 PKG A ENGINE BAFFLE KIT, BARE, ORANGE SEALS	N/A	Click here for details
05-22576	CESSNA 180 1956-81 182 58-73 PKG A ENGINE BAFFLE KIT, POWDER COAT, BLACK SEALS	N/A	Click here for details
05-22577	CESSNA 180 1956-81 182 58-73 PKG A ENGINE BAFFLE KIT, POWDER COAT, BLUE SEALS	N/A	Click here for details
05-22578	CESSNA 180 1956-81 182 58-73 PKG A ENGINE BAFFLE KIT, POWDER COAT, ORANGE SEALS	N/A	Click here for details

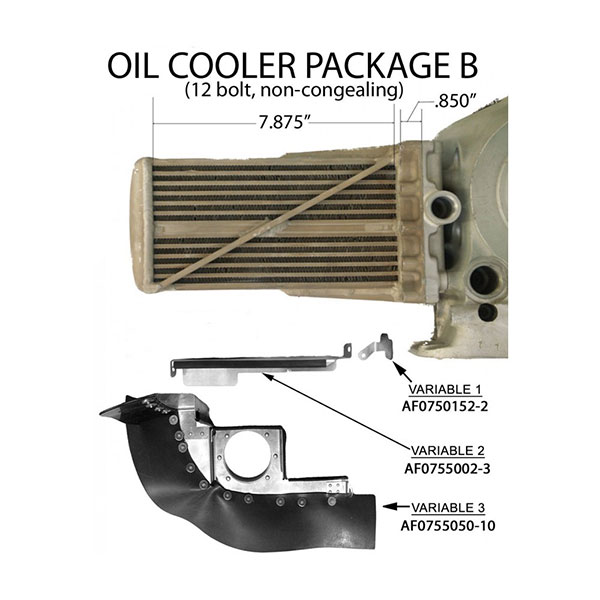

05-22579	CESSNA 180 1956-81 182 58-73 PKG B ENGINE BAFFLE KIT, BARE, BLACK SEALS	N/A	Click here for details
05-22580	CESSNA 180 1956-81 182 58-73 PKG B ENGINE BAFFLE KIT, BARE, BLUE SEALS	N/A	Click here for details
05-22581	CESSNA 180 1956-81 182 58-73 PKG B ENGINE BAFFLE KIT, BARE, ORANGE SEALS	N/A	Click here for details
05-22582	CESSNA 180 1956-81 182 58-73 PKG B ENGINE BAFFLE KIT, POWDER COAT, BLACK SEALS	N/A	Click here for details
05-22583	CESSNA 180 1956-81 182 58-73 PKG B ENGINE BAFFLE KIT, POWDER COAT, BLUE SEALS	N/A	Click here for details
05-22584	CESSNA 180 1956-81 182 58-73 PKG B ENGINE BAFFLE KIT, POWDER COAT, ORANGE SEALS	N/A	Click here for details

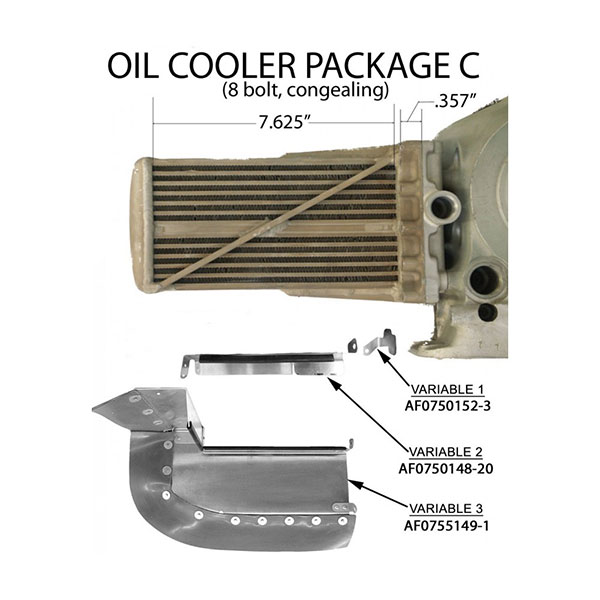

05-22585	CESSNA 180 1956-81 182 58-73 PKG C ENGINE BAFFLE KIT, BARE, BLACK SEALS	N/A	Click here for details
05-22586	CESSNA 180 1956-81 182 58-73 PKG C ENGINE BAFFLE KIT, BARE, BLUE SEALS	N/A	Click here for details
05-22587	CESSNA 180 1956-81 182 58-73 PKG C ENGINE BAFFLE KIT, BARE, ORANGE SEALS	N/A	Click here for details
05-22588	CESSNA 180 1956-81 182 58-73 PKG C ENGINE BAFFLE KIT, POWDER COAT, BLACK SEALS	N/A	Click here for details
05-22589	CESSNA 180 1956-81 182 58-73 PKG C ENGINE BAFFLE KIT, POWDER COAT, BLUE SEALS	N/A	Click here for details
05-22590	CESSNA 180 1956-81 182 58-73 PKG C ENGINE BAFFLE KIT, POWDER COAT, ORANGE SEALS	N/A	Click here for details

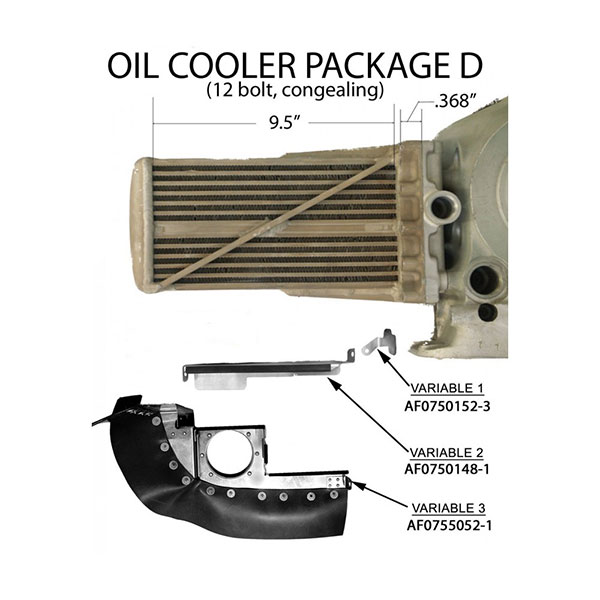

05-22591	CESSNA 180 1956-81 182 58-73 PKG D ENGINE BAFFLE KIT, BARE, BLACK SEALS	N/A	Click here for details
05-22592	CESSNA 180 1956-81 182 58-73 PKG D ENGINE BAFFLE KIT, BARE, BLUE SEALS	N/A	Click here for details
05-22593	CESSNA 180 1956-81 182 58-73 PKG D ENGINE BAFFLE KIT, BARE, ORANGE SEALS	N/A	Click here for details
05-22594	CESSNA 180 1956-81 182 58-73 PKG D ENGINE BAFFLE KIT, POWDER COAT, BLACK SEALS	N/A	Click here for details
05-22595	CESSNA 180 1956-81 182 58-73 PKG D ENGINE BAFFLE KIT, POWDER COAT, BLUE SEALS	N/A	Click here for details
05-22596	CESSNA 180 1956-81 182 58-73 PKG D ENGINE BAFFLE KIT, POWDER COAT, ORANGE SEALS	N/A	Click here for details
