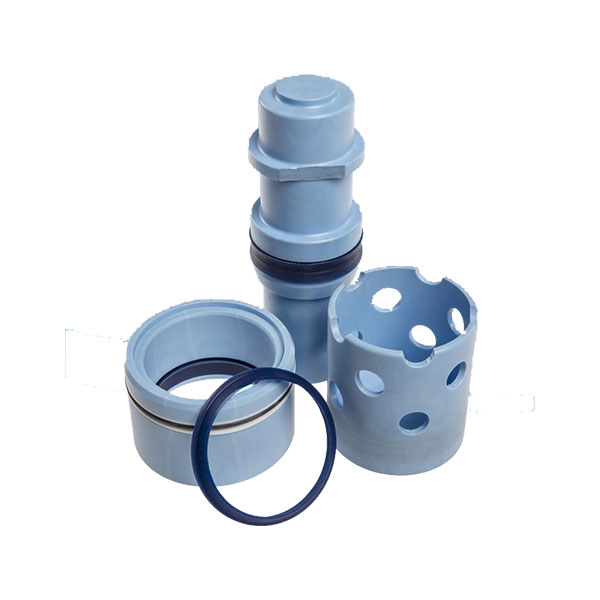

Main Landing Gear Oleo Kit For Aerostar Aircraft Models

$5617.00/Each
Quantity
Add to Wishlist
Part# 05-21707
MFR Model# M1004

Overview

Main landing gear oleo kits from Marsh Brothers Aviation are for all models of Aerostar aircraft. One kit will cover one main landing gear.

This preventative maintenance solution will ensure that you will never have the complications with traditional metal components and rubber seals can exhibit.

Be proactive: The cost to repair greatly exceeds the price of prevention. Don’t wait for disasters to occur. Make the change now!

Features

An essential part of optimal landing gear shock strut performance is seal integrity. The Marsh Brothers Oleo Kit assures optimal landing gear performance when you need it.

  • Proprietary lip-seal design coupled with advance materials engineering provides a more robust dynamic seal eliminating the possibility of extrusion or roll failures.
  • Use of non-metallic lower bearings, upper cap and floating pistons eliminate the possibility of score marks on dynamic sealing surfaces leading to leakage.

Our kit is insurance against the possibility of future problems.

Specifications

  • Approved for installation in U.S. registered aircraft by Federal Aviation Administration Supplemental Type Certificate # SA03484NY.
  • Approved for installation in Canadian registered aircraft by Transport Canada Supplemental Type Certificate # SA14-43.
  • List of approved Aerostar models: 600, 601, 601P, 602P and 700P.

In The Box

This kit will not include the Floating Piston and the Floating Piston Seals to US customers as MBA is waiting for the FAA Approval. All other items listed in the content section will be included in the kit.
This kit with the Floating Piston and Floating Piston seals are available to Canadian customers as MBA has received TC Approval.


MBA Part # Description Qty Reference OEM Part #
MBA10016 Gland 1 400071-501
MBA10020 Floating Piston 1 400069-501
MBA10071 Floating Piston Seal 2 MS28774-326 (qty.2), MS28775-326 (qty.1)
MBA10017 Oleo Cap 1 400066-501
MBA10024 Oleo Wiper Seal 1 AN6231-23
MBA10025 Gland Seal 1 MS28775-331(qty.1), MS28774-331(qty.2)
MS28774-148 Back-up Ring 2 MS28774-148
MS28775-148 O-Ring 1 MS28775-148
