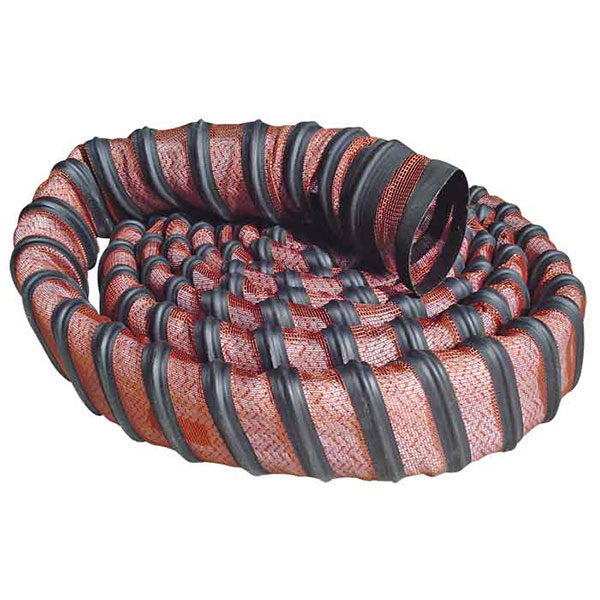

Aeroduct Jet Starter Hose And Scruffer Jets
Select Version:
Hose OnlyLeno Weave Jacket + ScufferHose + Leno Weave Jacket AssemblyHose + HV Leno Weave Jacket AssemblyOverview
|
Sold by the length of 50 feet.
Aeroduct Jet Starter Hose features a specially compounded silicone rubber tube that withstands temperatures up to 500º F and as low as minus 80º F. Light enough to be handled easily by one person, the hose construction features a synthetic yarn reinforcement that assures high burst strength (400 PSI and higher), dimensional stability, and maximum flexibility. Plus, it’s resistant to heat, solvents, mildew, and fuels. In addition, replaceable lenoweave or open-braided scuffer jackets extend service life and provide an extra measure of abrasion-resistance and durability by shielding the jet starter duct from the damage that often results from being dragged and scuffed over the ramp. HBD Thermoid is the standard in Jet Start Hose. This hose meets or exceeds the highest quality standards required by the military, aircraft operators, equipment OEMs, and ground operations personnel. |

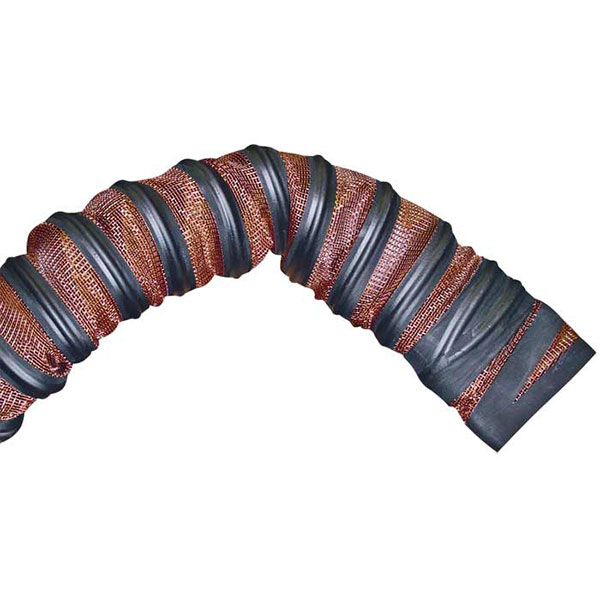

Scuffer Jackets
- Aeroduct replacement scuffer jackets protect the hose from damage caused by dragging the hose over the concrete ramp.
- Lenoweave Jacket consists of closely woven, treated fabric with extruded abrasion-resistant rubber vulcanized in a spiral to the lenoweave. Open Braided Jacket features synthetic yarn with extruded abrasion-resistant rubber vulcanized in a spiral to the braided jacket.
Specifications
- High Temperature: +500º F
- Low Temperature: -80º F
- Bust Strength: Over 450 psig
- Max Static Load: 2000 Pounds
- Proof Pressure Tested: 200 psig
- Operating Pressure: 100 PSI
- Proof Pressure: 200 PSI
- Wall Thickness: 3/16” +/- 1/32”
- Weight per Foot: 1.1 Pounds
- Inside Diameter: 3 1/2”
- Length: 50 feet
