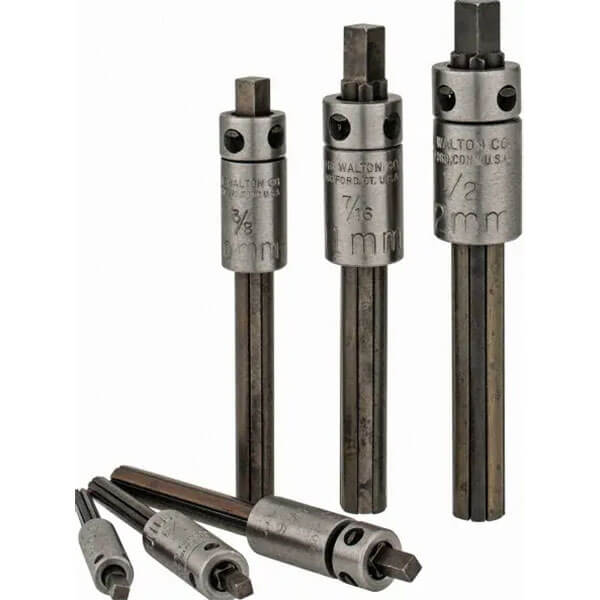

Tap Extractor Set No.1 6Pc

$169.95/Each
Quantity
Add to Wishlist
Part# 12-02352
MFR Model# 18001

Overview

Remove broken taps and save the threads! Walton Tap Extractors let you remove broken taps without drilling, lasers, damaged threads, scrapped parts or repair inserts.

The hardened steel fingers of Walton Tap Extractors fit in the flutes of a broken tap to back it out simply and safely. This effective method has been used since 1908. They are available in every tap size, both inch and metric, as handy sets or individual pieces. The Tap Extractors will fit both NC and NF taps.

Sizes: 3/16", 1/4",5/16",3/8",7/16",1/2"

Three simple steps for removing broken taps – the easy way!

Step 1: Thoroughly remove all chips of the broken tap. Insert the Extractor fingers into the flutes of the broken tap, pushing them gently, but firmly, into position.

Step 2: Push the holder down until it touches the broken tap. Slide the sleeve down until it touches the work.

Step 3: Apply a tap wrench to the square end of the holder. Twist forward and backward a few times to loosen, then back out the broken tap.

Specifications

  • Minimum Tap Size (Inch): 3/16
  • Maximum Tap Size (Inch): 1/2
  • Number of Flutes: 4
  • Number of Pieces: 6

In The Box

  • 1 - 3/16"
  • 1 - 1/4"
  • 1 - 5/16"
  • 1 - 3/8"
  • 1 - 7/16"
  • 1 - 1/2"

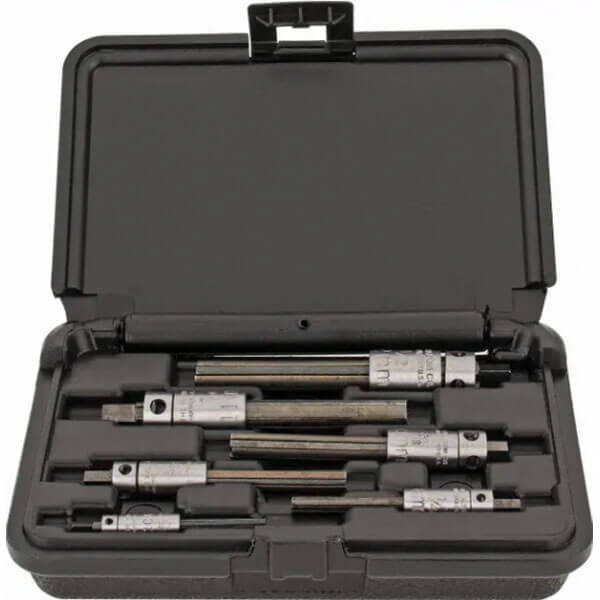

  • 1 - Plastic Compartment Case
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

5 star quality, worked like a champ.

Ricky R Verified Purchase

TAP EXTRACTOR SET NO.1 6PC

March 5, 2023

Great Product, Good Service, Fast Delivery

Dave D Verified Purchase

TAP EXTRACTOR SET NO.1 6PC

September 25, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this set a four finger set?

They are four flute.
