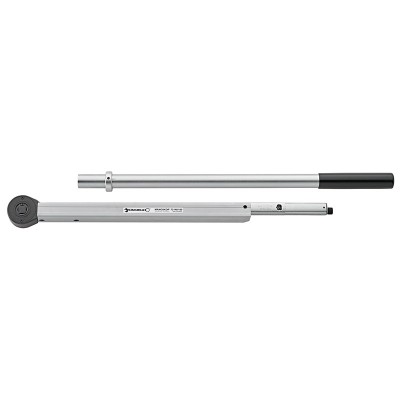

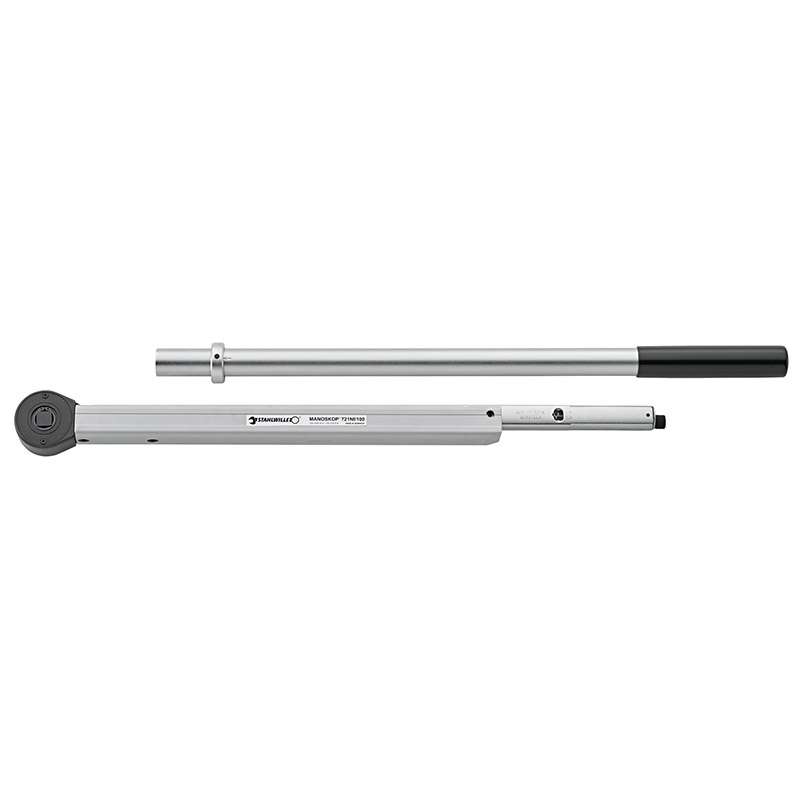

STAHLWILLE Torque Wrench Standard MANOSKOP® with Fixed Ratchet

0 Reviews 0 Answered Questions
Select Model:
Size 80 (120-600 FT-LB) Size 100 (150-725 FT-LB)
Quantity
Add to Wishlist

Overview

STAHLWILLE Torque Wrench Standard MANOSKOP® with Fixed Ratchet

Low-wear bending beam system
Our torque wrench is equipped with a low-wear release system with a bending beam. Unlike conventional torque wrenches with coiled springs, the bending beam is not subjected to any load until the tool is in operation, which means that the spring does not need to be reset to '0' after use.

DIN EN ISO 6789-2
Our torque wrenches and torque screwdrivers are professionally calibrated in accordance with DIN EN ISO 6789-2 and delivered with a corresponding calibration certificate. We also calibrate angle-controlled torque wrenches in accordance with VDI 2648-2. This ensures the accuracy and traceability of our tools.

Features

  • clicking type with dual stop signal
  • Quick adjustment thanks to easy-to-operate locking lever in handle
  • with permanently installed ratchet
  • 30 teeth
  • dual scale N·m/ft·lb
  • anti-clockwise tightening through a reversible square
  • all sensitive parts are protected by the robust tubular steel housing in alu-U-profile
  • optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
  • easy adjustment without disassembly via 2 external adjustment screws
  • delivered in a textile bag
  • calibration certificate in accordance with DIN EN ISO 6789-2:2017
  • accuracy ± 4%

Benefits

  • Adjustment does not require disassembly.
  • Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum & minimum values.
