GO-NO GO SLEEVE GAUGE

$17.50/Each
Quantity
Add to Wishlist
Part# 13-03814
MFR Model# GA-1P

Overview

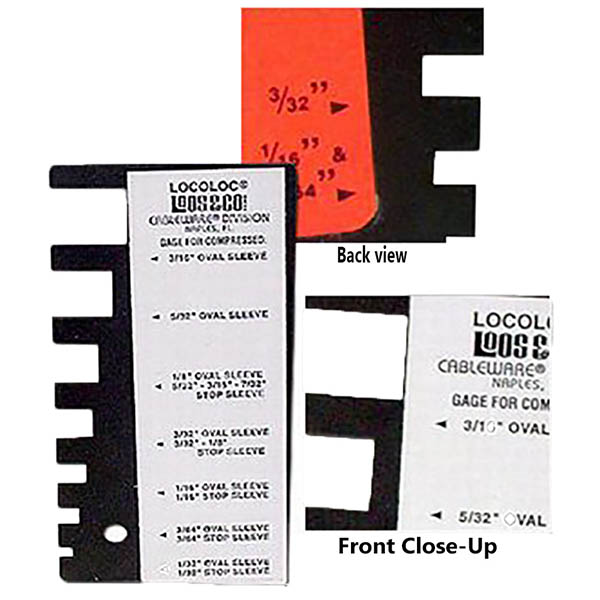

When the proper slot in the gauge slips over the compressed area of the sleeve after swaging then your swage is satisfactory. If the proper slot doesn't fit over the compressed area of the sleeve after swaging then your tool is out of adjustment & your cable assembly will not hold the rated breaking strength of the cable which should be the result when oval sleeves are used to form a loop or eye in a cable assembly. GA-1P: Gauges all swages performed on 1/32", 3/64", 1/16" 3/32", 1/8", 5/32", and 3/16" oval and stop sleeves.

Reviews

Works well

Edwin S
April 11, 2020

New products very satisfying with.

Ramon B
September 14, 2019

New products very satisfying with.

Ramon B
September 14, 2019

Would give 5 stars except the labeling on the gauge is paper, not engraved as others are. In order for the labels to remain legible I have to cover them with packing tape. Otherwise the oils and grease turn them black

Tommy L
December 17, 2018

Used a paper label for the markings. that will soon wear off and you wont know which is which.

Randall H
March 17, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can we get calibration certs with the go-no go sleeve gage #13-03814? Is there an extra charge?

Per the supplier: No certs are available for this gauge.

Q: Does this work for Nicopress sleeves as well?

Yes, this does nicopress sleeve sizes, 1/32, 3/64, 1/16, 3/32, 1/8, 5/32, 3/16
