EI CGR 4 CYL COMBO PACKAGE 30P & 30C

$7472.00/Each
Part# 10-06564
MFR Model# CGR-30-COMBO-4

Overview

FAA Approved Primary Replacement
  • FAA TSO’d, STC’d, TCCA Validated, EASA Validated
  • Remove your old primary engine instruments, including RPM, Manifold, EGT/CHT, Fuel Level, Oil Pressure, Oil Temperature, Volts, Amps, OAT, Fuel Flow, Fuel Pressure, TIT and more!
  • Upgrade your aircraft panel with the best engine analyzer combo available.
Clean Install
  • CGR-30P and CGR-30C fits into your existing 3 1/8″ holes (remove your old Tach and MP).
  • Engine Data Converter (EDC) accepts all inputs. Only 2 wires run to the back of the instruments.
Accurate, Dependable & Easy To Use
  • Electronics International consistently has been a leader in digital engine instrumentation since 1979.
Data Recording of Every Flight
  • All monitored functions are stored up to three times per second.
  • Up to 1,500 most recent flights stored, downloaded via a USB port.


*IMPORTANT: Marking requirement form must be filled out at time of ordering. Please click the link below to download the PDF form. It must be faxed in to 951-372-0555 or emailed in before order can be processed.

CGR-30 Combo Configuration Worksheet *(Required for Order)

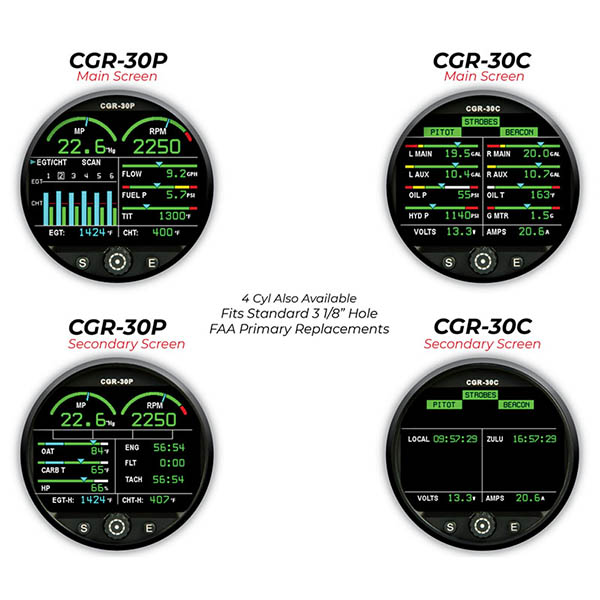

This combo package includes the CGR-30C & CGR-30P.

TSO’d & STC’d as Primary Replacements. Instruments Fit Standard 3 1/8” Hole.


For Twin Engine Options: Easily replace several of your aircraft’s primary and non-primary aircraft engine instruments with the Twin CGR-30 Combo Package which includes two CGR-30Ps and one CGR-30C. The STC’d and TSO’d CGRs can replace and consolidate many of your primary and non-primary instruments. Each CGR will mount flush through a 3 and 1/8 inch hole and will not protrude from your panel.

Package Includes:
  • CGR-30P Instrument
  • CGR-30C Instrument
  • EDC-33 Engine Data Converter
  • Primary Replacement RPM
  • Primary Replacement Manifold Pressure
  • Primary Replacement Fuel Level (up to 4 Fuel Tanks)
  • Primary Replacement EGT/CHT Bargraph
  • Primary Replacement Oil Pressure
  • Primary Replacement Oil Temperature
  • Primary Replacement Volts
  • Primary Replacement Amps
  • Primary Replacement OAT
  • Primary Replacement Fuel Flow
  • Fuel Remaining and Fuel Used
  • GPS/Fuel Flow Data
  • Engine Time and Tach Time
  • Flight Timer
  • Local Time and Zulu Time
  • Pilot Programmable Checklists
Options (No Charge)
  • Primary Replacement Fuel Pressure*
  • Primary Replacement Hydraulic Pressure*
  • Primary Replacement TIT*
  • Primary Replacement Carb Temp or OAT*
  • Second Amps Measurement*
  • On Screen Annunciators
  • Return Fuel Flow Transducer (Pressure/Carb)*
  • G-Meter
  • Horsepower
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the EI CGR30 have a USB port to program it? Does it store engine data to dump?

The CGR30 does provide a USB port to upload configuration data and to download flight data. This port is accessed via a usb connector under the instrument panel, or the USB-6A can optionally be added (our part number 10-05911) to have access to this port within the instrument panel. It can record up to 1500 flights before the oldest flight is overwritten and includes RPM and temperatureinformation.

Q: Does this come with EDC-30 data controller?

Yes, this package includes the EDC-30 data converter.

Q: Precisely what sensors are included in the combo package? I would like to see a detailed list of what is included and what may be optionally purchased and their prices.

The sensors that are included are the ones that the customer selects in the configuration worksheet. Please review the worksheet to see what functions you would like to have.
