|A.N.D No.||Size (In.)

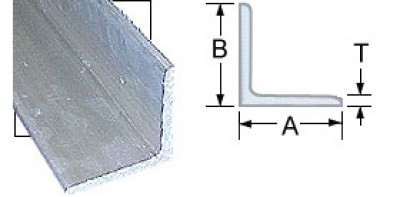

"A" x "B" x "T"
|10133-0401||1/2 x 1/2 x 1/16||0.070||03-46800||$7.50|| |
|10133-0501||5/8 x 5/8 x 1/16||0.095||03-46900||$6.75|| |
|10133-0601||3/4 x 3/4 x 1/16||0.109||03-47000||$4.45|| |
|10133-0703||7/8 x 7/8 x 1/8||0.238||03-47100||$10.50|| |
|10133-1001||1 x 1 x 1/16||0.154||03-47200||$5.40|| |
|10133-1003||1 x 1 x 1/8||0.282||03-47300||$8.99|| |
|10134-1404||1 x 1-1/2 x 1/8||0.354||03-47400||$11.50|| |
|10133-1401||1-1/2 x 1-1/2 x 1/16||0.229||03-47500||$9.90|| |
|10133-1403||1-1/2 x 1-1/2 x 1/8||0.432||03-47600||$9.95|| |
|10133-2002||2 x 2 x 1/8||0.581||03-47625||$14.60|| |
|If manufacturing test reports are required, there is a minimum $15.00 charge per order. Please indicate in the special instructions box at the time of order that certs are required.|
Very very good service.
worked well for its intended use
My order was complete, shipped the next day and my over the phone person was easy to work with. Thank you, Paul
The product was Ok
Perfect just what I ordered.
I have been a regular customer and for years I get my orders right away, but this is changing, Its been two and a half weeks I placed an order only to get part of this order, Still ave not gotten the rest of the order.. Same happened with my previous order, took almost three weeks, The current shipping method is worsening, Because undue delay in my products, I am now reluctant to continue ordering from Aircraft Spruce..
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, this aluminum angle meets AMS-QQA-200/3 standards.
No, the same cert would be good for all the 03-47400 material on the order.
It is extruded angle, and does not have any finish. Per the material certification this material meets: AMS-QQ-A-200/3REV.N/C,ASTMB221REV.14
The corner is sharp.
This has a rounded inside corner.
These are priced and sold in foot lengths.
