United Airspeed Indicators TSO'd

From $1665.00 to $1887.00
Part Number Range Lighted Price Buy
10-00190
40-200 mph/40-170 knotsNo$1665.00
Quantity
10-00190-1
40-200 mph/40-170 knotsYes$1887.00
Quantity
10-00191
40-250 mph/40-200 knotsNo$1665.00
Quantity
10-00191-1
40-250 mph/40-200 knotsYes$1887.00
Quantity
10-00192
40-300 mph/40-260 knotsNo$1665.00
Quantity
10-00192-1
40-300 mph/40-260 knotsYes$1887.00
Quantity
10-00198
0-170 knotsNo$1665.00
Quantity
10-00198-1
0-170 knotsYes$1887.00
Quantity
10-00201
0-260 knotsNo$1665.00
Quantity
10-00201-1
40—260 KnotsYes$1887.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

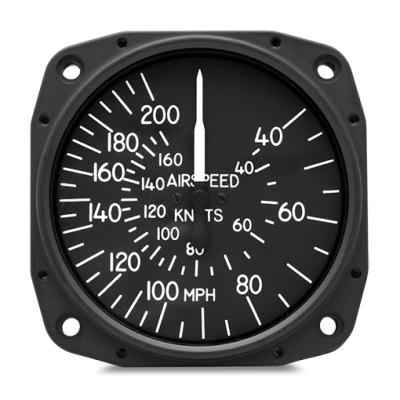

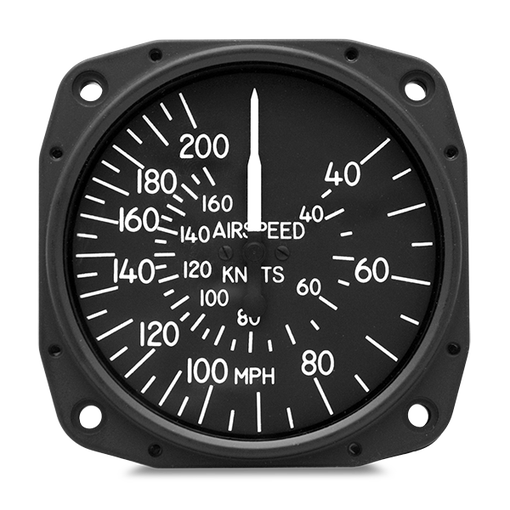

The 8000 Series Airspeed Indicator is intended for use on an aircraft to indicate the speed relative to the air at sea level and at any other altitude, to indicate the equivalent speed corresponding to the actual force of the air. When properly connected to an airspeed tube, mounted so as to be in undisturbed air, the airspeed indicator measures the differential pressure developed between the pitot and static opening. The pressure is indicated in units of airspeed (mph and/or knots).

These 8000 series United airspeeds are TSO’d for installation on certificated aircraft. Factory new. Available in dual scale MPH/knots, or in MPH or knots only. Fits standard 3-1/8” panel hole. Wt: 0.7 lb.

Available with custom range marks see "Options" tab.

*NOTE* - All lit instruments require a light tray. Light tray sold separately. See accessories.

Specifications

  • Certification: FAA TSO C2b
  • Case configuration: MS33638, 3inch
  • Typical Weight: 0.7 pounds
  • Static, Pitot Pressure Connector: 1/8 - 27 ANPT
  • Installation: Removable spring nuts and #6-32 screws
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How can I add specific range markings to the Mid-Cont airspeed indicator?

You can order part number 10-02614 with the gauge to add custom range markings.

Q: What are the instrument dimensions? How deep is it? Thanks

This is 3 1/8" with a depth of 2.30".

Q: What is the part number for the custom color markings for this United ASI? And where are United instruments made?

The custom markings option part # is 10-02614. When you add the main instrument to the shopping cart, it will offer the custom markings as an option. United Instruments are manufactured in the USA.
