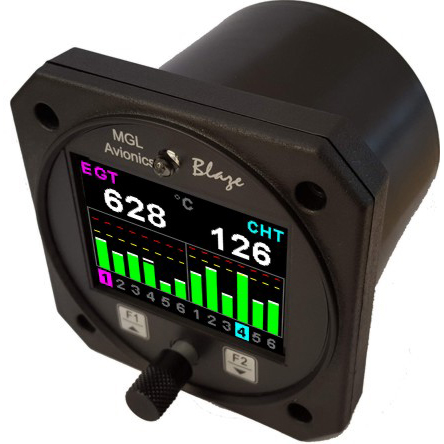

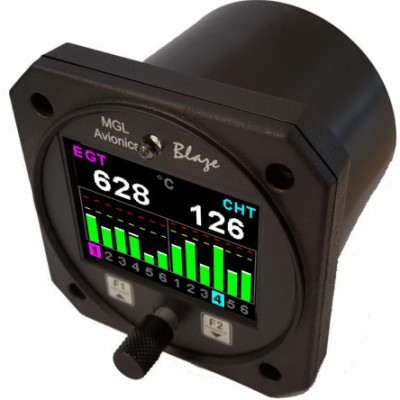

MGL Color 12-Channel Thermocouple Temp Display - Blaze Series
MFR Model# TC-6
Overview
|
12-channel Thermocouple (EGT/CHT) Monitor The TC-6 is a 3 1/8” sunlight readable 12 channel thermocouple color display instrument that contains all the features necessary to monitor EGT’s and CHT’s. The TC-6 can be configured to display up to 12 thermocouples in an easy to read bargraph format. In addition the TC-6 has an individual programmable EGT and CHT alarm with an external output that can switch an external visual alarm indicator such as a lamp. The TC-6 also has a EGT and CHT trend graph and maximum values display screen. The TC-6’s high accuracy is due to its built in thermocouple linearization curves and cold junction compensation techniques. Temperature probes can be common J, K or E type thermocouple probes as used in CHT and EGT senders. Temperatures can be displayed in degrees Celsius or degrees Fahrenheit from -100ºC to 1200ºC (-148ºF to 2192ºF). The TC-6 also features a built in engine leaning facility which allows the pilot to optimize the fuel mixture according to peak EGT temperatures as well as a cruise mode facility to provide instant identification of changing EGT/CHT trends. The TC-6 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Unit). This allows for easier installation as the RDAC unit is normally mounted in the engine compartment. |
Features
- 5 different temperature display screens
- Supports J, K and E type thermocouple probes
- Temperatures can be displayed in ºC or ºF from -100ºC to 1200ºC (-148ºF to 2192ºF)
- High accuracy: Built in thermocouple linearization curves and cold junction compensation
- Records maximum temperatures reached for each channel
- Includes a trend graph display of each thermocouple channel
- Engine leaning function according to peak EGT temperatures
- Engine cruise mode to instantly identify changing EGT/CHT trends
- External RDAC interfacing via the CAN bus (optional)
- An external output activates when a high alarm condition has been reached
Documents
Reviews
Excellent instrument bright, easy to read and understand.
Verified Purchase
MGL COLOR 12 CHANNEL THERMOCOUPLE TEMP DISPLAY BLAZE SERIES
works well., but should come with a 6 harness, I had to deal with a professional welder to start the harness..!!
Verified Purchase
MGL COLOR 12 CHANNEL THERMOCOUPLE TEMP DISPLAY BLAZE SERIES
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, this is not intended for use in certified aircraft.
Yes, this will include the harness, but no probes
The TC-6 can be configured to display up to 12 thermocouples in an easy to read bargraph format This removes the necessity for the RDAC unit.
Per the manufacturer, it is not plug and play. It would require new connectors to match the new unit.
