TANGS

From $3.80 to $5.75
Part No. OEM PN No. Description Price Buy

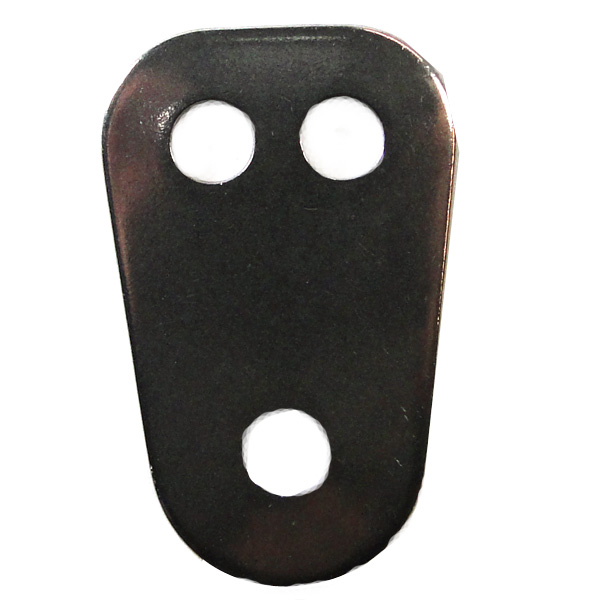

05-02077
T287833-Hole Flat$5.75
Quantity

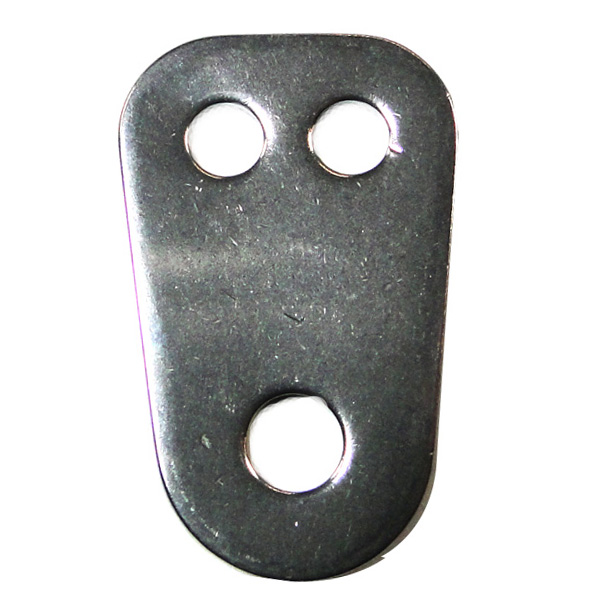

05-02078
T288033-Hole Flat$5.45
Quantity

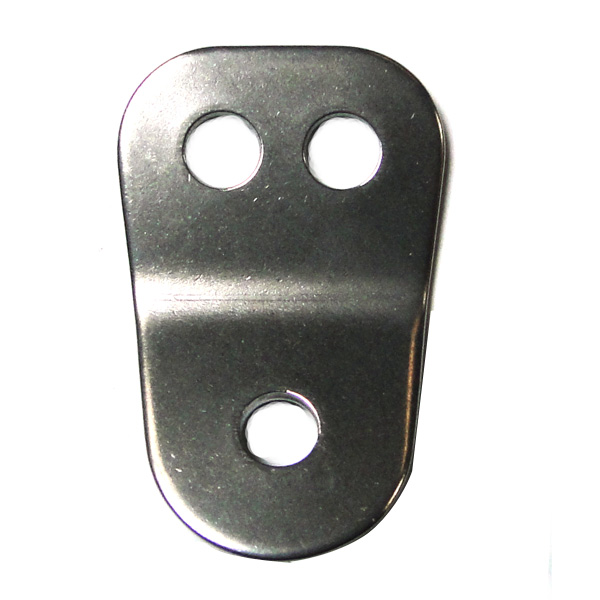

05-02079
T288333-Hole Flat$3.80
Quantity
Subtotal $0.00
Add to Wishlist

Overview

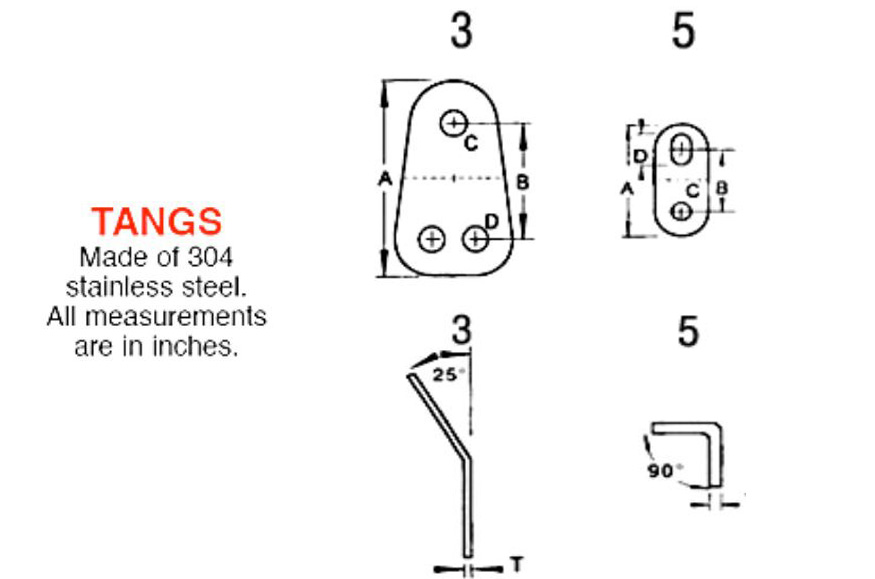

Made of 304 stainless steel. All measurements are in inches

Specifications


PN OEM PN No. Max Air Description T A B C D
05-02072 T2850 2 -- 2-Hole Flat 16G 2.0 1.25 .26 .26
05-02077 T2878 3 T11-DFT 3-Hole Flat 14G 1.91 1.09 .26 .26
05-02078 T2880 3 T8-DFT 3-Hole Flat 12G 1.91 1.09 .32 .26
05-02079 T2883 3 T9-DAT 3-Hole Bent 14G 1.86 1.04 .26 .26

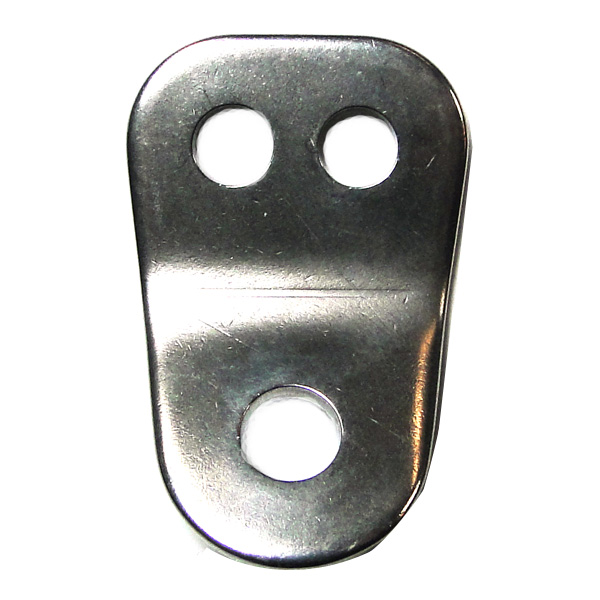

05-02080 T2885 3 T6-DAT 3-Hole Bent 12G 1.86 1.04 .32 .26

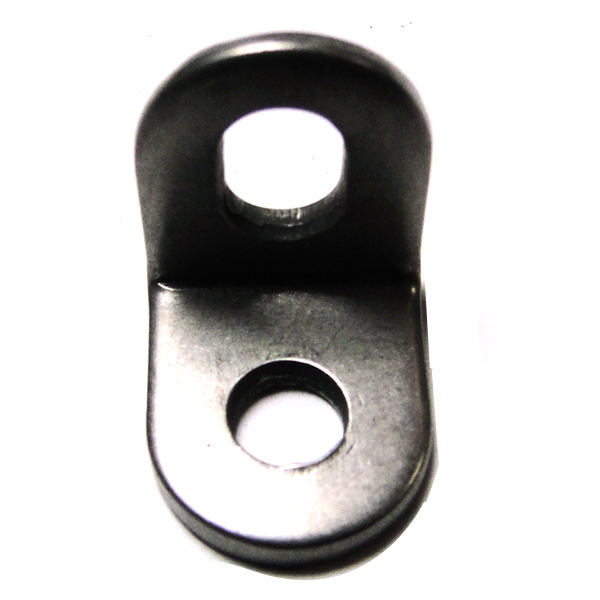

05-04371 T3825 5 -- SS EYE Bent 13G 1.13 .563 .188 --

Reviews

Q&A

Q: What size holes are these tangs?

The hole sizes are referenced as dimensions C and D in the chart on the web page. The dimension referenced is diameter of the hole in inches.

Q: What does 14G to refer to sheet thickness?

14 gauge stainless steel is .078"
