Tube OD |
Pipe Thd. |
A | B | C | D | E | Part Number | Price | Buy |
---|---|---|---|---|---|---|---|---|---|
1/4 | 1/8 | 1-13/64 | 1 | 5/8 | 15/64 | 15/32 | 268-N04X02 | $3.80 | |
1/4 | 1/4 | 1-25/64 | 1-3/16 | 5/8 | 15/64 | 11/16 | 268-N04X04 | $3.80 | |
3/8 | 1/4 | 1-17/32 | 1-21/64 | 13/16 | 5/16 | 9/16 | 268-N06X04 | $4.65 | |
3/8 | 3/8 | 1-19/32 | 1-25-64 | 13/16 | 11/32 | 11/32 | 268-N06X06 | $3.90 |
Nylo-Seal tube fittings are exceptionally strong. The bodies, made of nylon, are stronger than machined fittings of similar composition. They are furnished complete with nut/sleeve assemblies, made of acetal copolymer. Since the sleeve snaps into and is retained by the nut there is no fumbling for a loose sleeve. Just insert tube into the fitting and tighten the nut 2 to 2-1/2 full turns. Note: The most frequently used combination of tube and pipe sizes are 1/4" Tube x 1/8" Pipe and 3/8" Tube x1/4" Pipe.
For Nylo-Seal tubing, see "Accessories" tab Less 10% on 50 pieces per size, Less 20% on 100 pieces per size |
259-N Insert (Nylon) | Sleeve Assembly | |||||||||||||||||||||||
![]() |
| ![]() |
|
| |||||||||||||||||||
![]() |
|
264-N Union Tee | ||||||||||||||||
![]() |
|
| ||||||||||||||||||||||||||||||||||||
![]() |
|
| ||||||||||||||||
![]() |
|

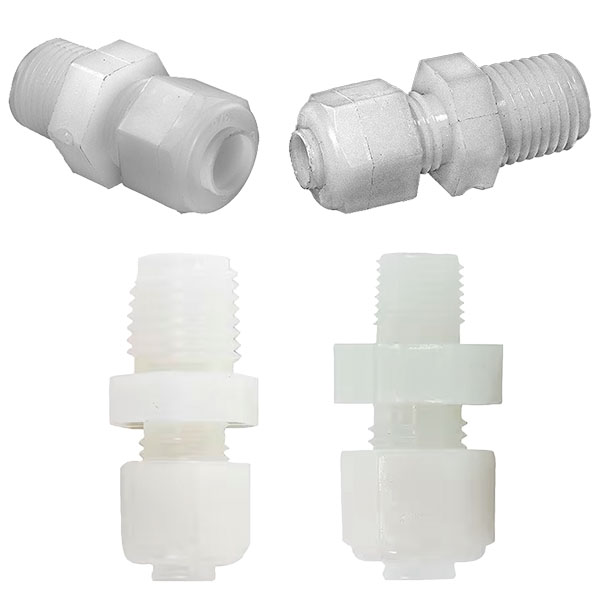

268-N Male Connector | ||||||||||||||||||||||||||||||||||||
![]() |
|
| ||||||||||||||||||||||||||||||||||||
![]() |
|
| ||||||||||||||||||||||||||||||||||||
![]() |
|
| ||||||||||||||||||||||||||||||||||||
![]() |
|
| ||||||||||||||||||||||||||||
![]() |
|
*Use 259N inserts w/all Poly-Flo tubing connections. Not needed w/ Nylo-Seal tubing. | |
Some new instruments I installed required access to the pitot and static lines but did not come with a fitting to connect the tubing. These fittings fit perfectly and attached securely to the tubes.
One end is pipe thread, and will seal without teflon tape or compound.
You would need a tap for 1/8th NPT.
They are just from different manufacturers, they will both work with nyloseal.
