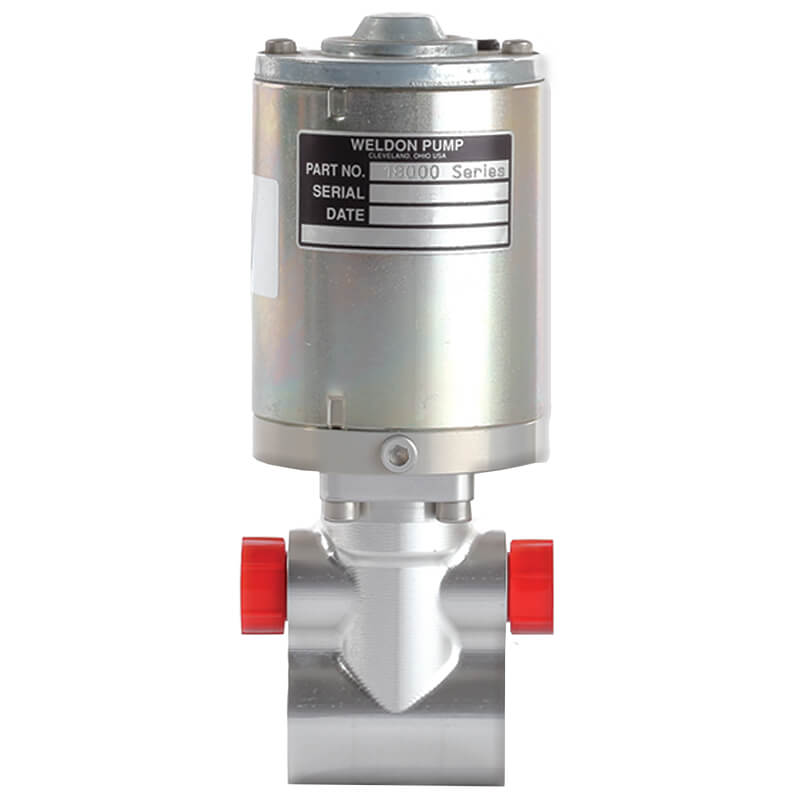

New PMAD Weldon 18000 Fuel Pumps

Select Voltage:
14 Volt28 Volt

Overview

Weldon 18000-A (14Volt) Replaces:
Cessna C291504-0101
Dukes 4140-00-17

Weldon 18000-B (28Volt) Replaces:
Cessna C291504-0201
Dukes 4140-00-15

Current Applications
  • Emergency Fuel Boost
  • Priming Injected Engines
  • Primary Fuel Pump
Performance
  • Rated Flow Range: 23.5 to 118 GPH
  • Rated Pressure: 6 to 40 PSI
  • Temperature Range: -65°F to 185°F
Current Fluids
  • Aviation Gasoline
  • Jet Fuels
  • JP-8
Special Features
  • Slung Vane
  • Self Priming
  • High Suction Lift
  • Integral Pressure Relief Valve
  • Built-in Bypass Valve
  • Permanent Magnet Motor
  • 2.7 LBS

Elegibility

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

We replaced a Duke pump with this Weldon pump in our Cardinal RG 900 hours ago. While its normally only used for priming, its also the emergency backup to the engine mechanical fuel pump. Its been working perfectly ever since installation.

Keith M
October 23, 2023

I purchased this pump to replace the Dukes pump originally installed in July 2017. It failed after 5 years and only 120 flight hours. The pump is only used for take off and landing as an aux pump so in reality it failed in a much shorter operational time. The warranty is only 18 months or 150hrs so I was out of warranty. I would expect this pump to have lasted longer than it did given the amount of use it had. Because of this and lack of warranty, I only give it two stars.

Chris S
December 19, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this Weldon pump an approved replacement for the Dukes 4140-00-17? Regarding Part # 08-07082

Yes, the 14 Volt model is approved to replace Dukes 4140-00-17.

Q: Is the Weldon 18000-A a direct replacement for the Dukes 4140-00-19A

Per the supplier: No, 08-07082 is the same as Dukes 414-00-17...no replacement shown at this time for the 19a.

Q: Is there a Weldon fuel pump replacement of a Dukes 1499-00-19NV?

Per the supplier: No, we do not have a replacement fuel pump for a Dukes 1499-00-19NV at this time. (June 10, 2013)

Q: Can this Weldon 18000-A be delivered with a dual release 8130-3 or EASA Form 1?

This does not come standard with a dual release. A letter for EASA release can be obtained but must be requested at the time of order.

Q: Can this Weldon 18000-A be delivered with a dual release 8130-3 or EASA Form 1?

This does not come standard with a dual release. A letter for EASA release can be obtained but must be requested at the time of order.

Q: Will the Weldon 18000-A replace a Dukes 4140-00-17N? I see it replaces a standard -17. I am not sure what the N denotes on the pump.

Per Vendor: The Dukes part number that I have to cross reference with our 18000-A is 4140-00-17 (OEM PN C291504-0101).

Q: Is this pump overhauled or new?

This is new condition.

Q: How many amps does the 24V operate at (average and spike)?

The pumps are tested and draw less than 3 amps.

Q: Will this fuel pump replace cessna P/N C291504-0101?

Yes, this is the main supplement for C291504-0101.

Q: Is this pump a direct replacement for the boost pump on a Cirrus SR 20

Per Weldon, Weldon Pump cannot claim FAA/PMA Installation Eligibility on the SR20 with an 18000-A. This part is not approved for the Cirrus aircraft.
