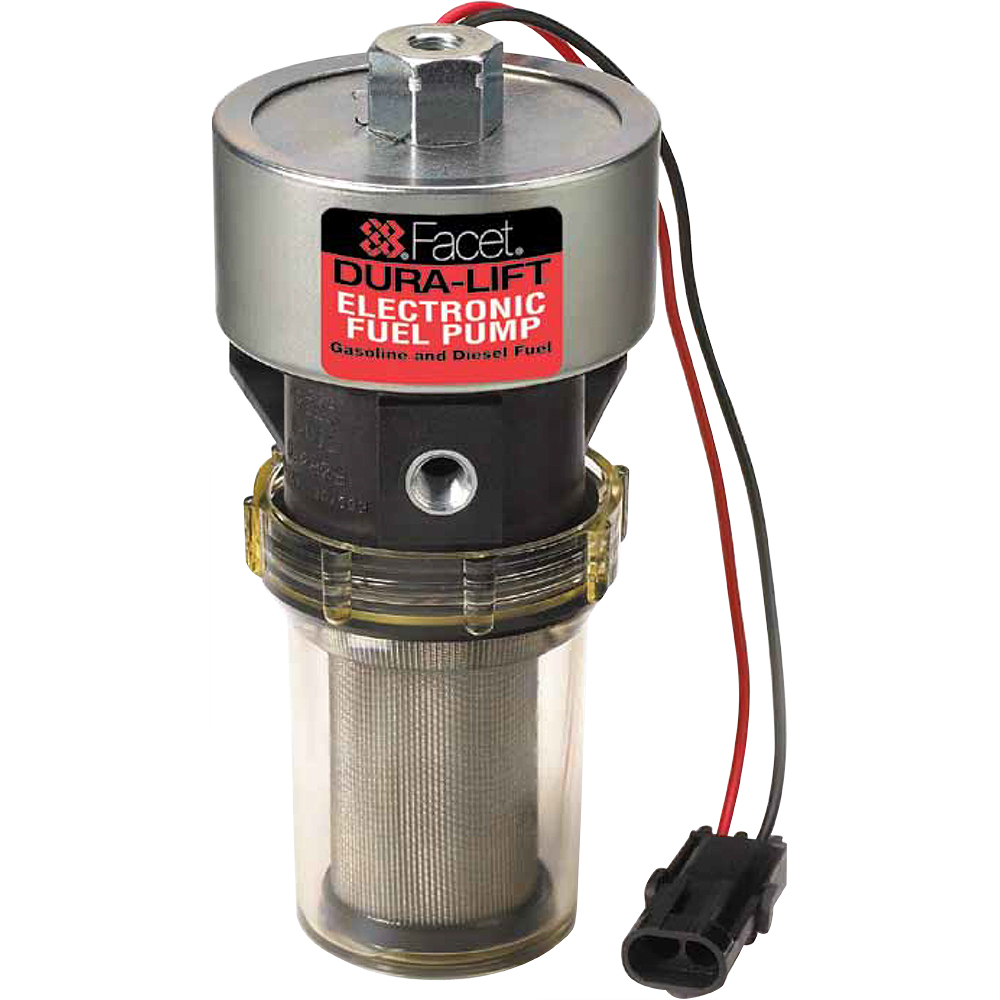

Facet Dura-Lift Fuel Pumps

From $199.75 to $202.95
Description Part Number Price Buy
40222 FACET DURA-LIFT PUMP 12V
05-10884
$202.95
Quantity
40285 FACET DURA-LIFT PUMP 12V
05-10886
$199.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Note: Facet fuel pumps are not FAA approved and are not intended for aircraft use.

Application: Refrigeration trucks, marine generator sets, diesel filtration systems, industrial applications, and other diesel lift applications. These pumps are rated for diesel fuel, gasoline, blended alcohol fuels, and fuel additives.

Solid State Reliability: Proven on many original equipment applications No electrical contacts. No bearings or diaphragms to wear out or fatigue. Endurance life almost doubles that of our nearest competitor.

Easy to Install-Easy to Service: Two bolt mounting makes installations easy. Nothing to adjust. The pump is self-priming to 120 inches (3.0 m). Vertical mounting is preferred to assure maintenance of rated pressures. The transparent housing allows for visual capability to monitor the cleanliness of the stainless steel filter.

Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

Features

  • Self-priming with a 10 ft. minimum lift
  • Transient Protection
  • Check valve
  • 4 hour dry run
  • Self-regulating
  • 33 - 50 GPH
  • 15 - 9 PSI
  • VCA approved EC 95/54
  • State-of-the-Art Electronic
  • Sealed Electronics
  • Reverse Polarity Protection
  • Corrosion Resistant over 100 hours salt spray
  • Durable Transparent fuel bowl
  • Light Weight - 3LBs at 7 1/4”
  • Low Power Requirements 1.4 amp on average
  • Operating Temperature Range: -40F to 180F

Specifications

PN Facet No. Volts PSI Max-Min GPH Fitting Size Lift Min. Dry Check Valve Position Shut Off Valve
05-10884 40222 12 11.5-9.0 33 1/8-27 Int. 120" Y N
05-10886 40285 12 7.0-4.0 33 1/8-27 Int. 120" Y N
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Quality part. Worked perfectly.

Herbert B Verified Purchase

40285 FACET DURA-LIFT PUMP 12V

August 2, 2022

Am not an aviator, but like this elec fuel pump based on reviews and forums for upgrading the fuel system on the older 6,9 ford diesel trucks.

Gordon Verified Purchase

40222 FACET DURA-LIFT PUMP 12V

April 25, 2022

This works well. I needed a electric pump that had lift and some years back non did. The original mechanical fuel pump for this vehicle is no longer available. Hope list lasts.

William J Verified Purchase

40222 FACET DURA-LIFT PUMP 12V

July 10, 2021

Nice little unit. Exactly what I needed

Chris M Verified Purchase

40285 FACET DURA-LIFT PUMP 12V

June 1, 2021

You cant go wrong with a Facet pump. Pump works great for my diesel truck application. Aircraft Spruce provides great service and fast shipping.

Erik
December 8, 2020

Worked exceptionally well in my application (an inboard boat). I wanted a pump that could pull through a fuel filter and water separator, as opposed to pushing through. It replaced a Carter P4594 that was noisy and unreliable.

Matt
July 21, 2020

Works as it should good price

Jesse L
June 18, 2020

it lifts.

Rt
May 18, 2018

Works good

Charles C
November 28, 2017

Excellent pump. Fast service and delivery from A/C Spruce.

Bux
August 31, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these filters cleanable?

Per the supplier: The filter is cleanable but we recommend you replace the O-Ring each time if you choose to clean the filter.

Q: Do these Facet fuel pumps come with a wiring harness now?

It has a positive and a negative attached.
