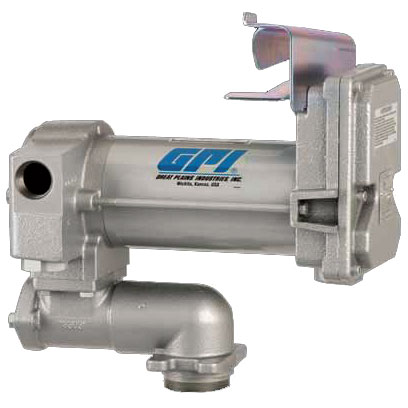

Gpi Refueling Pump M-3025Cb-AV-Po

$1204.00/Each
Quantity
Add to Wishlist
Part# 08-07464
MFR Model# 170000-01

Overview

GPI REFUELING PUMP:
  • 12-Volt
  • 25 GPM / 95 LPM
  • Motor is U.L. Listed to U.S. and Canadian Standards
  • Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), diesel, kerosene and aviation fuels gasoline (AVGAS 100LL) and kerosene grade (JET A).

  • These pumps are only intended to be ground based or vehicle mounted. Do not use or mount in or on aircraft, may be used with aviation fuel.

    Specifications

    • REFUELING PUMP M-3120-AV-PO
    • Model: M-3025CB-AV-PO
    • Voltage & Type: 12-Volt DC- Vane
    • Flowrate: 25 gpm, 95 lpm
    • Duty Cycle: 30 minutes on / 30 minutes off
    • Nozzle : None
    • Inlet/Outlet Size: 1 in. / 1 in.
    • Suction Pipe: None
    • Hose: None
    • Motor Protection: 40 amp circuit breaker
    • Bypass Pressure: 20 psi 1.4 bar
    • Current Draw: 35 amps
    • Suction Lift: 15 ft. 4.6 m
    • Unique Feature: External switch cover plate allows for easy access and keeps the UL rating intact.
    • Use with: Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), diesel, kerosene and aviation fuels gasoline (AVGAS 100LL) and kerosene grade (JET A).
    • Approvals : Motor is U.L. Listed to U.S. and Canadian Standards.
    • Mfg Warranty: 2 Year
