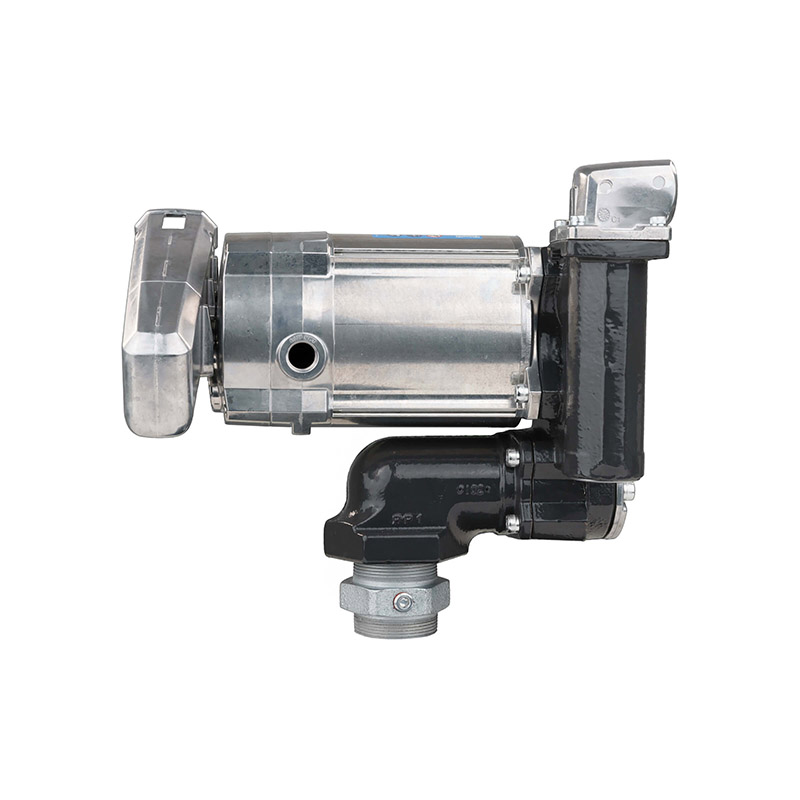

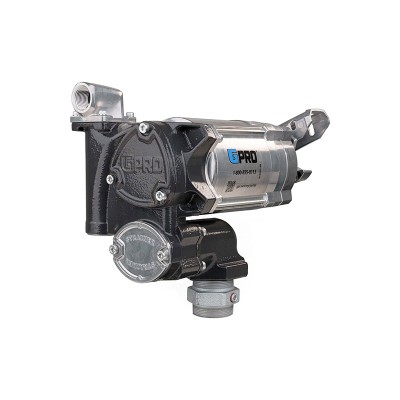

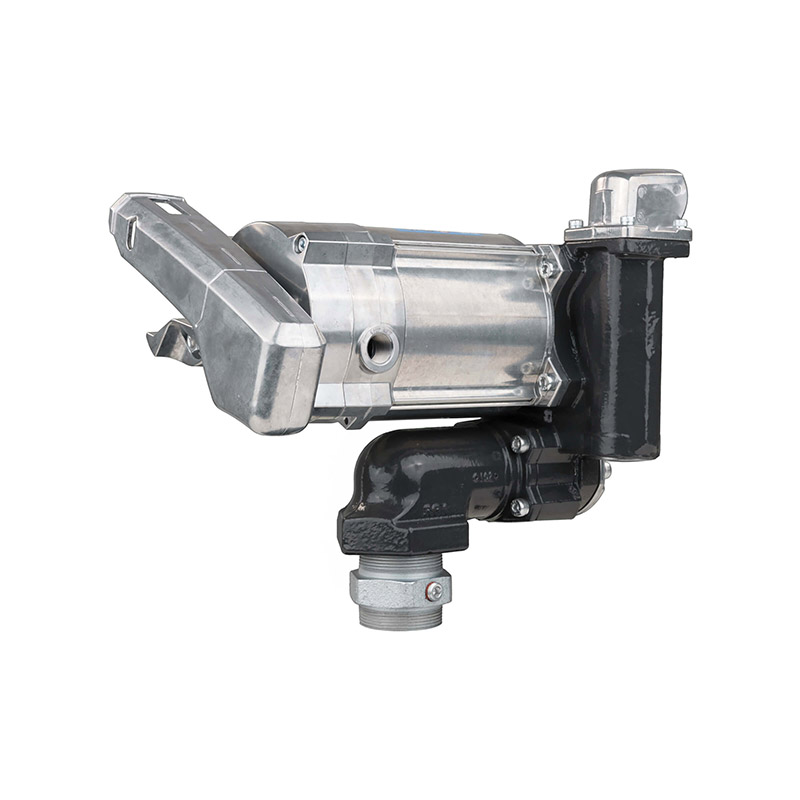

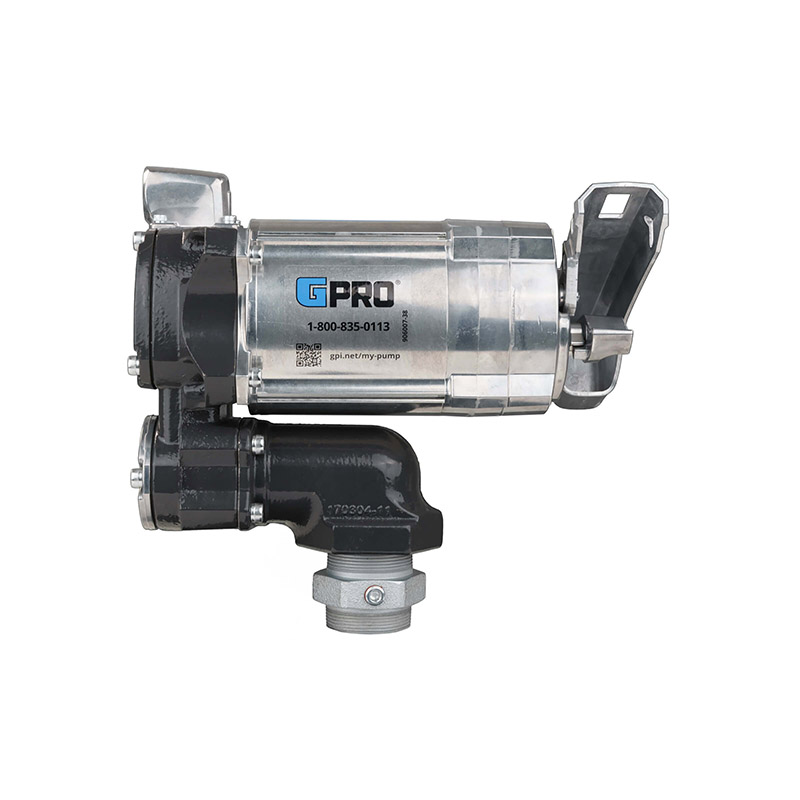

GPI GPRO V20 Series - 115v 20gpm Fuel Transfer Pump - 1 Inch Outlet
$1270.00/Each
Part# 08-19356
MFR Model# 171000-01
MFR Model# 171000-01
Overview
| The GPRO V20-115 series is the next-generation modular vane pump for stationary applications fueling large equipment. The V20 is engineered to deliver consistent high-pressure performance from a tough, hard-working modular vane pump. 115V AC motor delivers up to 20 GPM (76 L/min). It’s fast and flexible; able to load up to 600 gallons of fuel. Includes a quick-fit modular system (4 bolts and an O-ring) that allows easy, leak-free attachment of filter, meter, or both. Extreme Temperature (XT) models available. Whether your business is agriculture, construction, or managing vehicle fleets, staying fueled up is critical, and it must be a quick and dependable process. |
Features

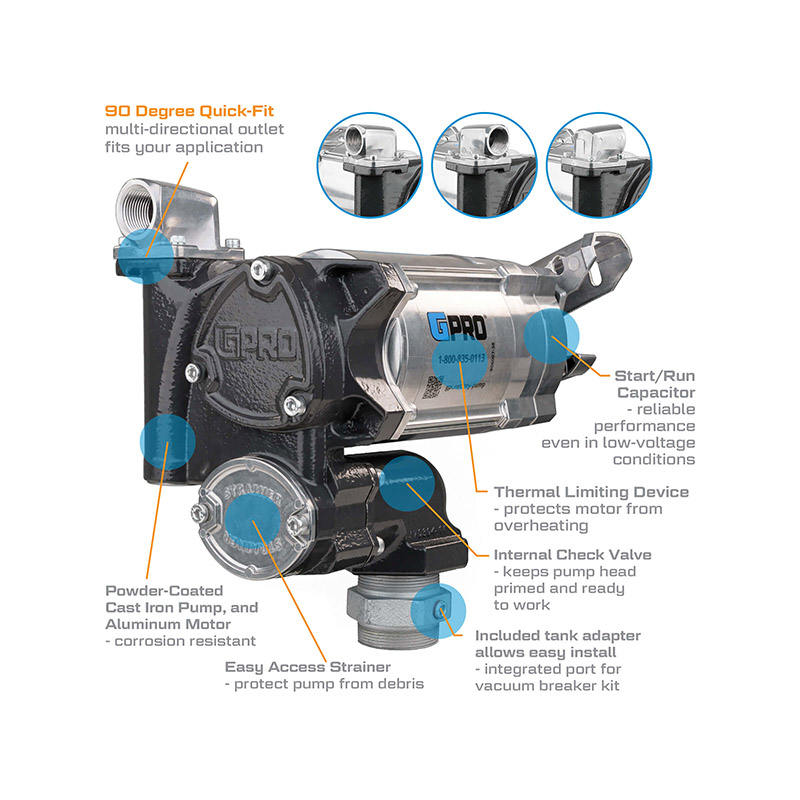

- Quick-Fit modular design eliminates leaks. Four bolts and an O-ring quickly attach a filter, meter, or both.
- High Pressure Performance ideal with hose reel
- Quick-Fit 1 in. NPT 90 degree outlet for fueling large diesel equipment, multidirectional
- Lockable Nozzle Holder to deter fuel theft. New drip catch feature helps keep tanks and trucks clean
- Easy Access to fuel strainer - simply remove two bolts and strainer cover
- Tank Adapter Included for easy installation, ready for vacuum breaker kit.
Specifications
| Max. Flow Rate | 20 GPM (76 L/min) |
|---|---|
| Voltage Input | 115V (AC) 60Hz, 230V (AC) 50/60Hz Dual Voltage Configurable |
| Horsepower | 0.5 |
| Technology | Sliding Vane |
| Amps Rated | 5.2 amps |
| Duty Cycle | 30 min on/30 min off |
| Power Cord | Not Included |
| Max. Discharge Pressure | 25 PSI (1.72 bar) |
| Operating Temperature | -20° F to 125° F (-29° C to 52° C) |
| Suction Lift | Up to 15 ft. (4.5 m) at Sea Level 70° F (21.1° C) |
| Discharge Lift | Up to 18 ft. (5.5 m) at Sea Level 70° F (21.1° C) |
| Pump Housing Material | Cast Iron |
| Wetted Materials | Acetal Aluminum Carbon Cast Iron FKM NBR PBT/Polyester Steel |
| Mounting Type/Thread | Direct Mount, 2in. MNPT |
| Suction Pipe | Not included |
| Inlet | 1 in. FNPT |
| Outlet | Modular, 1 in. FNPT |
| Dispensing Hose | Not included |
| Nozzle | Not included |
| Nozzle Holder Type | Lockable with Drip Catch |

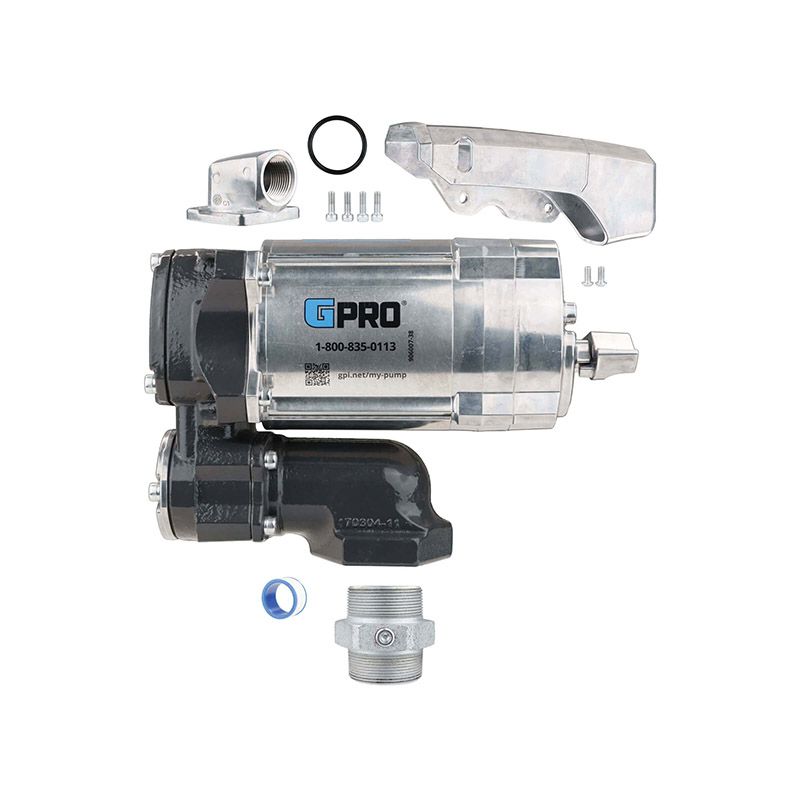

| What's in the Box | V20-115PO Fuel transfer pump w/spin collar, Lockable nozzle holder, Modular outlet fitting w/hardware, Tank adapter, Thread tape, Owners manual |
| Warranty | 5-year pump warranty |
| UPC | 31401011579 |
| Approvals | cULus Motor Listed for Hazardous Locations Class I, Division 1, Group D USA and Canada |
| Approvals (cont'd) | cULus Power-Operated Pumps for Petroleum Products |
Benefits
- For ground-based refueling only. Do not use or mount in or on the aircraft. For use with aviation gasoline (Avgas 100LL), Jet A, and Jet A-1. User should consult NFPA 407 Standard for Aircraft Fuel Servicing for safety requirements during ground fuel servicing of aircraft using liquid petroleum fuels. This product has no actual or implied compliance with this standard. Owners and operators are responsible for compliance to all applicable regulations.
