Whelen Single Light Remote System

From $48.50 to $695.00
Description Part Number Price Buy
WHELEN A470AR RED STRB HEAD AS
11-03273
$444.00
Quantity
WHELEN A470AW WHITE STRB HEAD
11-03277
$428.00
Quantity
WHELEN A470AS RED/WHITE
11-03259
$428.00
Quantity
WHELEN A450 STROBE LIGHT ASSY
11-03280
$695.00
Quantity
WHELEN H102 MOUNTING ADAPTER
11-03243
$48.50
Quantity
WHELEN H103 MOUNTING ADAPTER
11-03284
$172.80
Quantity
WHELEN HS5 INSTALLATION PKG 5
11-04204
$95.85
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Designed to produce light 360° around the aircraft ±30° as required. Mount on top or bottom of fuselage or on vertical fin. Requires use of either H 102 or H 103 mounting adapters. Special three conductor shielded cable must be used between light assembly and power supply.

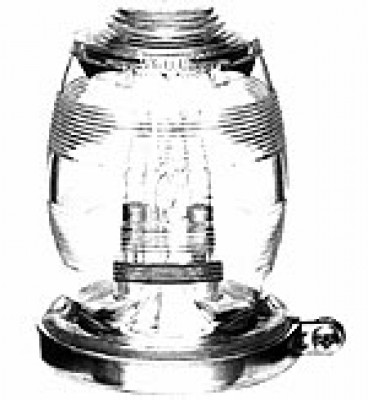

MODEL A 470A
Incorporates vibration proof flash tube (A 469B) which allows flush mounting. Available with Aviation Red, White or split Red/White optic lens. Specify voltage.

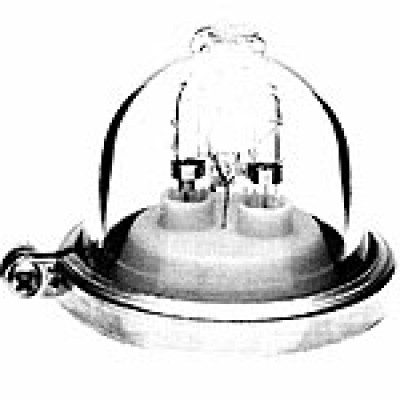

MODEL A 450
White strobe light with clear Pyrex glass dome. recommended for installations subject to severe vibration, moisture and chemical conditions such as Ag aircraft. This system was designed in 1968 when only 100 candles output was required. An economical system for daylight operation. Specify voltage.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Very good light, fit perfectly as a replacement.

Robert A Verified Purchase

WHELEN A470AS RED/WHITE

August 28, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: When installing the A450 light assembly what adapter do I require? I am replacing a Whelen Model 70509,

The H102 adapter is used for flush mounting, and the H103 is used for mounting in a standard 3-3/4" rotating beacon hole.

Q: Is the Whelen A450 light FAA-PMA or STC approved?

Yes, this is PMA approved.

Q: Does the A470ADS Whelen strobe require a separate power pack or can it be wired direct to the 12 v aircraft bus bar?

It would require a power supply.
