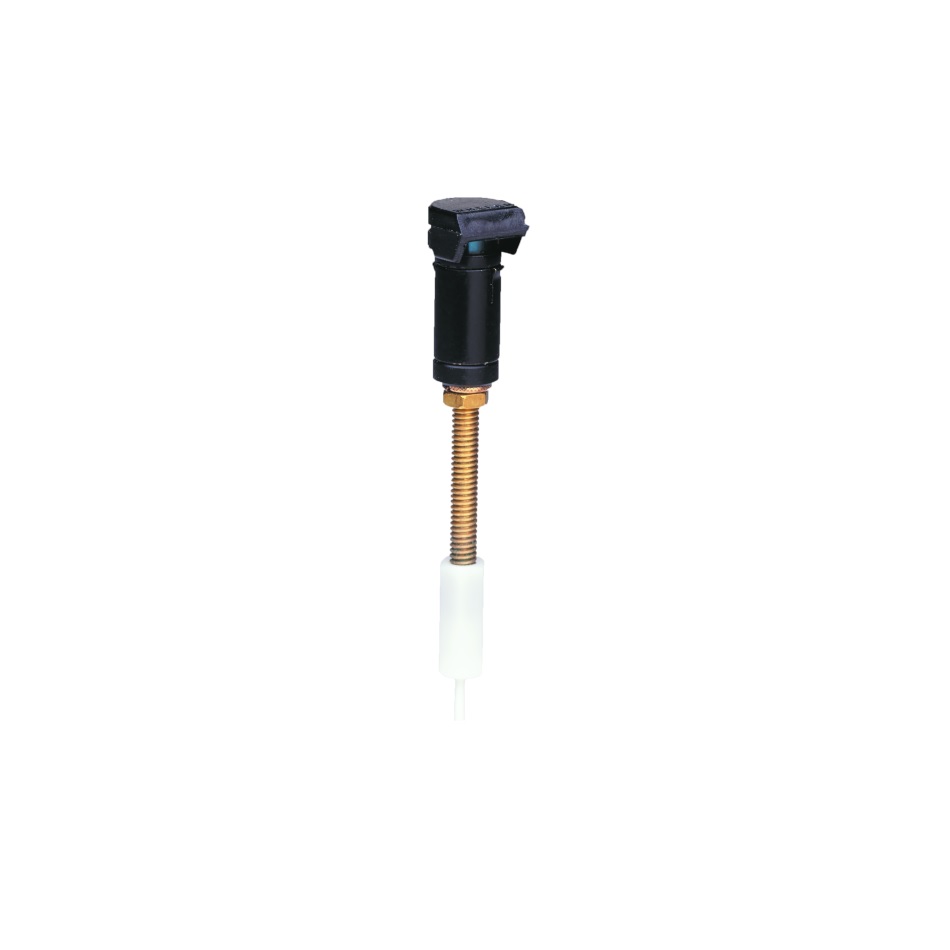

Whelen Post Light Assembly A350

$119.75/Each
Quantity
Add to Wishlist
Part# 11-18794
MFR Model# 01-0770116SC2

Overview

Instrument post light assemblies designed to illuminate the instrument panel and function as instrument mounting bolts. The A350 is identical to the A350CN, but without the connector nut.

Specifications

  • Drawing Number A350: 70116
  • Exposed Height: .875 (22mm) without spacer, 1.00 (25mm) with spacer
  • Power Consumption: 0.2 amps @6 VDC, 0.08 amps @14 VDC, & 0.04 amps @ 28 VDC
  • Weight: 0.037 lbs. (17gm)
