Home / Electrical / Batteries / True Blue /True Blue Power TB44 Lithium-Ion Battery
Main Image

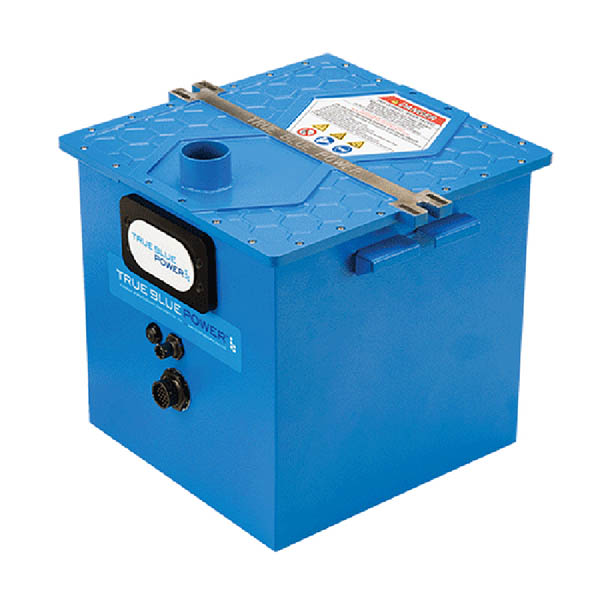

True Blue Power TB44 Lithium-Ion Battery

0 Reviews 0 Answered Questions
Select Version:
With HandlesWithout Handles
Quantity
Add to Wishlist

Overview

True Blue Power TB44 Lithium-Ion Battery 6430044-2

Features

  • 46 amp-hour battery nominal at 23°C/73.4°F
  • Weighs 51.7 lbs. — 40% lighter than lead-acid or nickel-cadmium alternatives
  • Advanced Nanophosphate® lithium-ion cell chemistry — 3x the energy per kilogram when compared to lead-acid and nickel-cadmium cells
  • 7 engine starts in 7 minutes
  • 15 minutes for complete recharge when the battery is fully discharged on a typical aircraft
  • Superior performance at extreme temperatures (-40°C/-40°F to +70°C/+158°F)
  • Automatic internal heater
  • Overcharge, over-discharge, over-current, short circuit, over-temperature and under-temperature protection
  • Communicates ARINC 429 data to the cockpit
  • Higher voltage during engine start — Less wear, less maintenance and increased useful life
  • 2-year maintenance interval —50 – 90% savings on maintenance costs
  • 8 years (average) useful life
  • Designed and built in Wichita, Kansas, USA
  • FAA TSO Certified
  • 2-year limited warranty

Specifications

  • Capacity: 46 amp-hour nominal at 23°C/73.4°F
  • Charge Voltage: 28 VDC nominal
  • Output Voltage: 26.4 VDC nominal
  • Output Current: 750A continuous, 1500A max
  • Technology: Advanced Nanophosphate® lithium-ion cell chemistry
  • Protection: Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature
  • Energy Density:
  • 52.0 Wh/kg
  • 64.6 Wh/liter
  • Operating Temperature: -40°C to +70°C (-40°F to +158°F)
  • Weight: 51.7 lbs
  • Dimensions: 10.9” L x 10.5” W x 10.1” H
  • Configuration: 8S19P; 8 series cells x 19 parallel modules
  • Maintenance: 2-year maintenance interval; offers 50 – 90% savings on maintenance costs
  • Useful Life: 8 years (average)
  • Case: Powder-coated steel, blue
  • Certification:
  • FAA TSO certified to C179a
  • ETSO certified to C179a
  • RTCA DO-311 qualified
  • RTCA DO-160G qualified
  • UNDOT/IATA qualified
