ACS Door And Baggage Lock Sets

Add to Wishlist
Part# 11-01600
MFR Model# A-545-A8


Note: This product is non-PMA'd

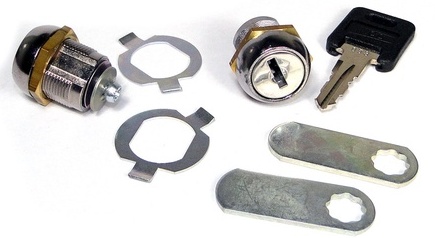

The door and baggage locks furnished with the ignition switches above are also available separately. Set of two locks (one door and one baggage lock) furnished with one key mated to both locks. The baggage lock may be used as second door lock if preferred.

Made in USA

Multiple ignition switches & lock sets are available with the same key. This is a special order and extra charges & lead times will apply. Please call sales for a price & lead time.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items


Does not work on the E model rear baggage door

Mark W Verified Purchase


May 4, 2023

Ronald A Verified Purchase


November 9, 2022

Lock Set is not compatible with a Cessna 172M.

Matthew R
April 6, 2017

The quality if this is fine. The description did not catch my attention enough. Who packages a lock set with one key? I mean, really!!!!

Brian B
April 19, 2016

Quality of the unit is fine. I had two issues with the lock. First, is that is not compatible with a Mooney baggage door lock. This is not a fault of the manufacturer, it just didn't work in my application without major modifications. Second, the key is double sided which means it is a pain to have a duplicate made. I wouldn't buy another just because of the double sided key.

Lee L
July 27, 2014

As previously stated, it only comes with one key. I have ordered & installed several of these kits, and although they work okay, they never have good smooth operation / key insertion & removal...even after deburring the key and lubing the cylinders. They do work though, Ive never had one fail. Medeco is the way to go, but you get what you pay for.

Griswold A
January 7, 2023

Only one key supplied with the lock. It doesnt fit Diamond DA40 (also if this model is the one indicated in the IPC)

Diego T
May 4, 2022

only one key and blanks not available why? bad marketing

Lloyd A Verified Purchase


September 9, 2021

Need to supply more than one key for this multiple lock set

September 27, 2017

You only get one key and it is impossible for a locksmith to duplicate!! What company only provides one key to a unique lock!! Would not buy again!

March 9, 2021


Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of these ACS door and baggage locks?

Total length of the lock is approximately 15/16" length (not including screw and washer on end). Max diameter of threaded portion is approx. 3/4". Max diameter of visible portion is approx. 7/8".

Q: Is the key turning radius 90 or 180 degrees?

Locks and unlocks at 90 degreess.

Q: Can you set the arm at different depths?

No, it is not adjustable.

Q: Will this product work in the pilot and baggage doors of a 1959 C182B?

No, these are not approved for use on certified aircraft.

Q: How do I order a lock for an exsisting lock set code number?

Please contact our sales team for a special order quote on matching lock and key. They can provide pricing and lead time information.

Q: Is it possible to get a set of three? Id like my two doors and baggage door to match.

Each door & baggage lock set has a matching key. Extra keys can be ordered to match your assembly.

Q: What is the length and width on the lock tab for this set?

1/16 thick | 5/8 wide | 1-5/8 long

Q: What is the A length of the lock, being the length of just the threaded portion?

1/2 inch

Q: Will this ACS Door And Baggage Lock Set fit N35 model bonanza?

It may, but these are not approved for certified aircraft and we do not have an aircraft application chart for them. They are intended for experimental aircraft.
