Note: Not FAA Approved. Intended for use in experimental aircraft only.
The ETX1200 lithium battery is a beast for power!
This battery is intended for 550ci engine size or more; 120 amp alternator/generator or less.
ALTERNATOR/GENERATORMAX CHARGING OUTPUT
# OF BATTERIES NEEDED
2 in parallel

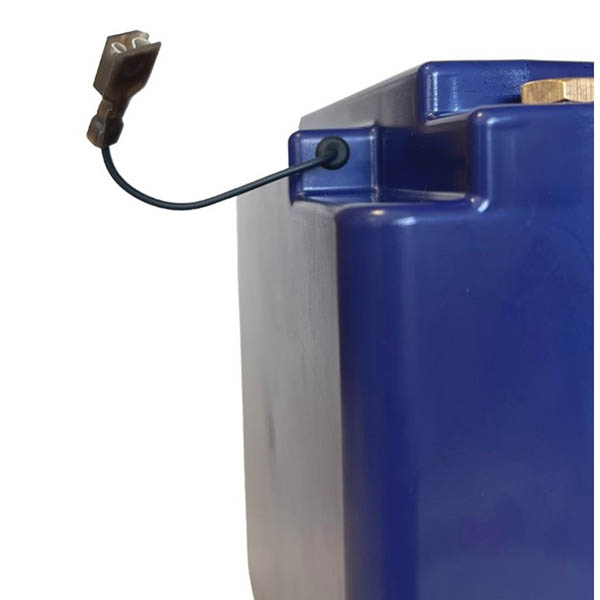

The ETX battery series is fully protected by an integrated battery management system (BMS) that protects the cell’s from over discharge, overcharge, short circuit, temperature, plus cell balancing to ensure charge levels are equal. Additionally, our ETX Hundred series aircraft batteries have redundant electronic circuits and battery fault indication. The fault indicator can be connected into your EFIS or wired to a 12volt LED light on your control panel to alert you to the state of charge and state of health of the battery. (Please see the manual for details)
The ETX Hundred series is fully protected by an integrated Battery Management System that protects the cell’s from over discharge, over charge, short circuit, thermal protection and built in cell balancing to ensure charge levels are equal (balanced) 100% of the time for optimal performance
The most trusted and used lithium battery on the market. Multiple experimental aircraft manufacturers and experimental engine manufacturers such as Rotax Engines, Continental Motors, UL Power Engines and Viking Engines approve the EarthX brand.
LiFePO4 chemistry, the most abuse tolerant of all lithium battery chemistries.
Higher voltage while cranking mean faster starts.
Extremely light weight, 70-80% lighter than your lead acid battery.
4,000 charge cycle life versus 350 charge cycle life of a lead acid battery. Can last up to 8 years.
Environmentally friendly, no hazardous lead or acid, will not corrode or sulfate.
Wider operational temperature range than a lead acid battery. (-22° F to 140° F, -30 ° C to 60° C) . A lead acid’s operational range is(-40° F to 113° F or -40° C to 45° C).
6.5 in (L) x 3.1 in (W) x 6.6 in (H) 166mm (L) x 79mm (W) x 168mm (H)
Environmental Rating (resistance to water intrusion)
IP 66 (wash down with a high pressure washer)
-30°C to +60°C
-40°C to +70°C
Why Choose EarthX
You will instantly remove 11+ pounds compared to the lead acid battery in your experimental aircraft! Now that is a huge weight savings.
Significant increase in cranking power. If you have been using the PC680, you will increase your CCA’s from 170 to 320 and the PCA’s from 520 to 680! Now that’s power to crank your engine!
Now you can easily have a backup battery and not worry about the additional weight. In fact, if you switch from a lead acid battery and add a backup battery, so you have a primary and a backup, you still have decreased your overall weight by 50%! Note that only the ETX680C/680/900/1200 have the aircraft specific BMS.
Innovative and sophisticated BMS designed and engineered with redundancy for safety, reliability, and performance. These are EXCLUSIVE features!
