- Photo may represent series and not specific product
- SHARE
(Hover to zoom | Use mouse wheel for +/-)
| Product Group | Description | Manufacturer Number | PN | Price | Buy |
|---|---|---|---|---|---|
| Tray Mount Rails | .375" Width Drill / Tap Single Slot - 12 Inch | QP1020-12 | 11-20717 | $140.75 | |
| .375" Width Drill / Tap Single Slot - 18 Inch | QP1020-18 | 11-20718 | $177.75 | ||
| .650" Flange Width Rivet Single Slot - 12 Inch | QP1025-12 | 11-20719 | $140.75 | ||
| .650" Flange Width Rivet Single Slot - 18 Inch | QP1025-18 | 11-20720 | $177.75 | ||
| .825" Width Removable Face Mount Single Slot - 12 Inch | QP1050-12 | 11-20721 | $140.75 | ||
| .825" Width Removable Face Mount Single Slot - 18 Inch | QP1050-18 | 11-20722 | $177.75 | ||
| .375" Width Drill/Tap Dual Slot Offset - 12 Inch | QP1120-12 | 11-20723 | $177.75 | ||
| .375" Width Drill/Tap Dual Slot Offset - 18 Inch | QP1120-18 | 11-20724 | $243.95 | ||
| Removable Hardware Pack | Tray Mount Hardware Pack - 8 Pack | QH632-8 | 11-20707 | $134.75 | |
| Tray Mount Hardware Pack - 12 Pack | QH632-12 | 11-20708 | $188.75 | ||
| Tray Mount Hardware Pack - 24 Pack | QH632-24 | 11-20709 | $315.00 | ||
| Tray Mount Hardware Pack - 32 Pack | QH632-32 | 11-20710 | $384.00 | ||
| Tray Mount Hardware Pack - 40 Pack | QH632-40 | 11-20711 | $436.00 | ||
| Semi Permanent Hardware Pack | Tray Mount Hardware Pack - 8 Pack | QH632-F-8 | 11-20712 | $134.75 | |
| Tray Mount Hardware Pack - 12 Pack | QH632-F-12 | 11-20713 | $188.75 | ||
| Tray Mount Hardware Pack - 24 Pack | QH632-F-24 | 11-20714 | $315.00 | ||
| Tray Mount Hardware Pack - 32 Pack | QH632-F-32 | 11-20715 | $384.00 | ||
| Tray Mount Hardware Pack - 40 Pack | QH632-F-40 | 11-20716 | $436.00 | ||
| Tool Kits | Hardware Starter Tool Kit | QT100-K | 11-20725 | $101.75 | |
| Installation Spacer Tool Kit | QT200-K | 11-20726 | $516.00 | ||
| Mount Offsetter Tool Kit | QT300-K | 11-20727 | $102.90 | ||
| Master Tool Kit | QT-MTK | 11-20728 | $546.00 |
Overview
|
Quickrax manufactures Avionics Rails, Dzus Adapters, Closeout Panels, Hardware, and Tools to simplify and add value to your next avionics installation/upgrade.
Quickrax products are engineered for installation in both new and pre-existing instrument panels. Quickrax has revolutionized avionics installations with patent-pending face mount Avionics Rails that allow complete stack prewire on the bench and installation of the avionics suite as a single module. |
Features

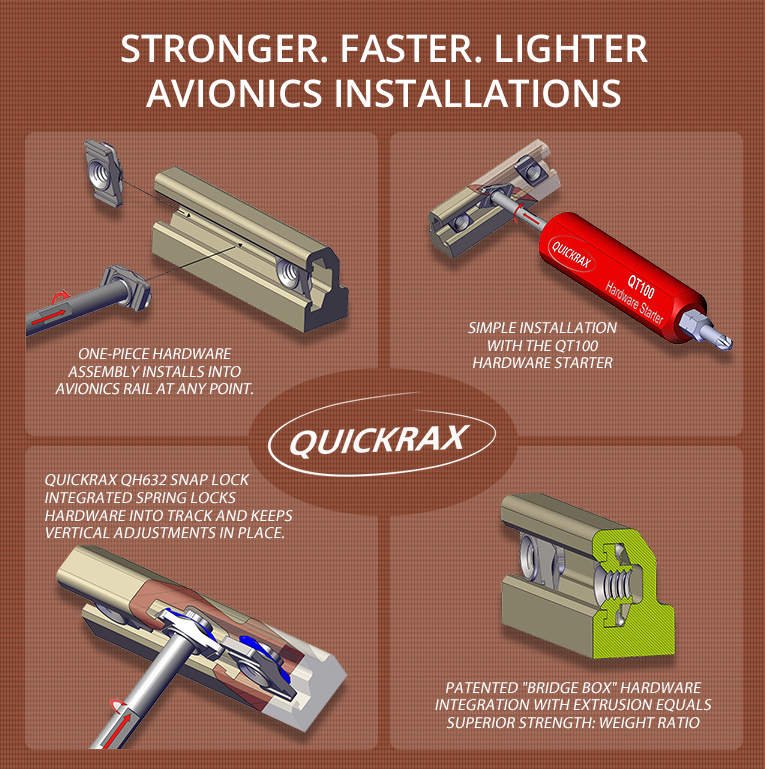

- Proven by rigorous G-load testing to over 50 G's, the patented "Bridge Box" structurally integrated hardware system creates a box beam at every avionic attach point for superior force distribution into the mounting rail and surrounding structure.
- Pre-assembled #6-32 stainless tray mount nut assemblies are easily installed and removed from any point along the rail slot. Once installed, hardware is fully adjustable along the length of the rail.
- Optimized extrusion profiles covered by multiple patents are now available for avionics installations in both fixed-wing and rotary-wing aircraft.
