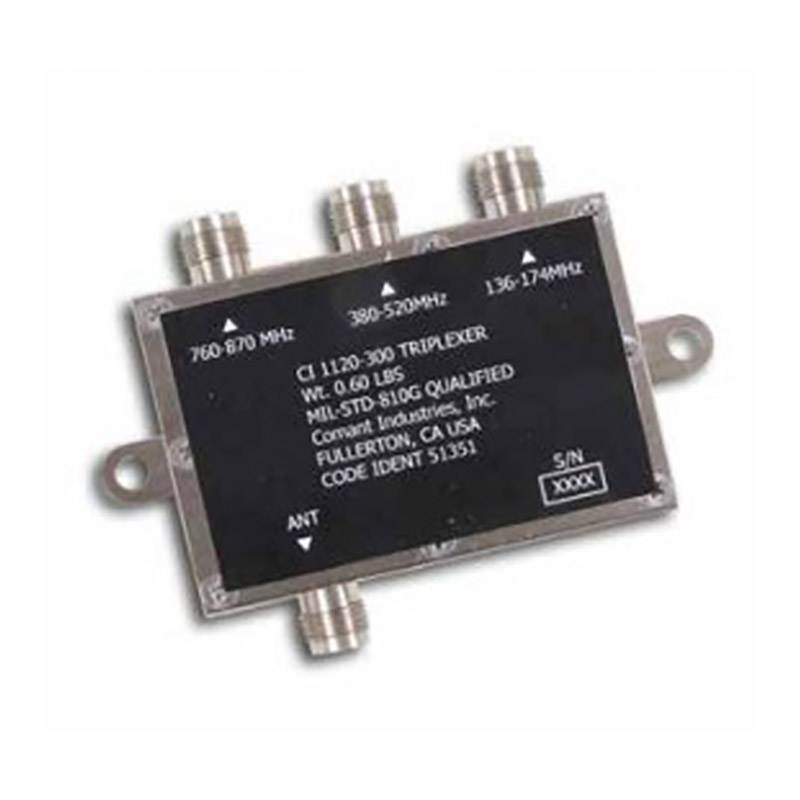

Comant Triplexer Single VHF/UHF CI-1120-300

$1256.00/Each
Quantity
Add to Wishlist
Part# 11-19388
MFR Model# CI-1120-300

Overview

Comant’s two through hole diplexer with TNC ports. Specifically designed to operate with the CI 295-300, CI 295-250 and CI 295-200 single connector SAR antenna. This allows the separation of the 136-174, 380-520 and 760-870 MHz frequencies. Suitable for internal aircraft mounting.

Specifications

  • Electrical
  • Frequency: MHz 136-174 (VHF-Comm) 380-520(UHF) 760-870 (UHF)
  • VSWR: Max
  • Return Loss: dB
  • 1.5:1 1.5:1 1.5:1
  • -13.98 dB -13.98 dB -13.98
  • Isolation: 30 dB 30 dB 30 dB Max
  • Insertion Loss: 1.0 dB 1.0 dB 1.0 dB Max
  • Impedance RF: 50 Ohms
  • Power RF: 10 Watts

  • Mechanical
  • Weight: 0.60 lb
  • Dimensions: 1 X 3 in
  • Finish: Nickel Plated Aluminium
  • Connector: 4 TNC (female)

  • Environmental
  • Temperature: -55 C to + 125C
  • Altitude: Up To 50,000 Feet
  • Relative Humidity: 95%

  • Vibration
  • UH60 Blackhawk Per
  • MIL-STD-810G Method 514.6
  • Category 14

Applications

  • Internal Aircraft Mounting
