Avery EFIS System Plumbing Kit
MFR Model# SA-A2
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
The fittings capture the tubing with stainless steel retainers. By suppressing the release ring (around the tubing entry port on the fitting), the tubing is easily removed. Within just a few minutes, you'll be able to disconnect and reconnect tubing. O-ring seals, and maintaining precise tubing diameter during the manufacturing process, ensures a reliable seal.
For Experimental Aircraft ONLY. Applicability and suitability of this kit is the responsibility of the builder. Kit Includes:

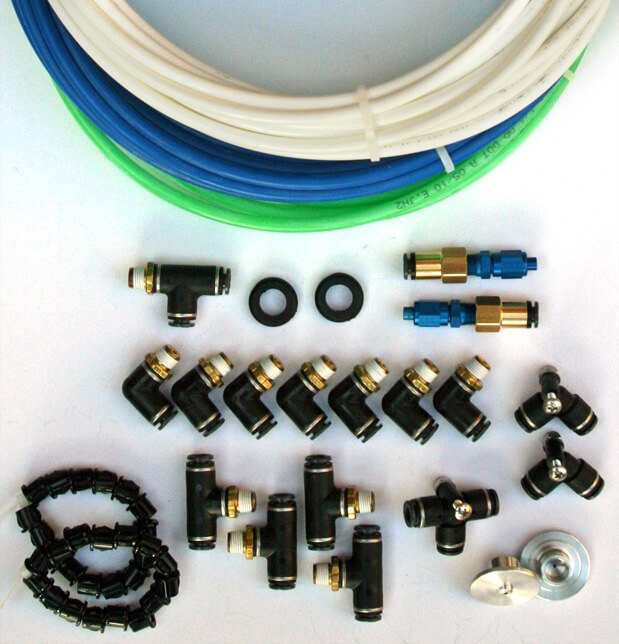

4 - Male Branch Tee 1 - Union Tee 2 - Union 90° 2 - Synthetic Rubber Grommet 30 - Snap Bushing 2 - Female Connector 2 - Static Port 2 - AN Hardware Assembly 1 - 25' 1/4" Green Tubing (Pitot) 1 - 32' 1/4" White Tubing (Static) 1 - 23' 1/4" Blue Tubing (AOA)  Click Here to Enlarge |
Reviews
as ordered
Verified Purchase
EFIS SYSTEMS TOOL KIT
This item does come with the hardware to connect directly to the pitot tubes. You do not need any adapters. Customer service was not able to provide a good answer to this.
Verified Purchase
EFIS SYSTEMS TOOL KIT
Have not installed this yet but when it came I am glad I laid out the instructions and inventoried it. I was missing a 90* fitting. Very easy to address this with Spruce right after receiving it, the replacement came super fast and I am no where near needing it (still prepping ribs). Might not have been the case if two years from now I noticed I was one short so make sure you inventory this when you receive it. Top quality parts and excellent service on the missing part issue.
You cannot purchase additional push on knees or T fittings without purchasing the whole kit. I bought two kits just to get the required components.
Verified Purchase
EFIS SYSTEMS TOOL KIT
The parts are all you would need for a homebuilt. Easy to install fittings tubing. Theinstruction are good but the pictures are not all clear, some are so dark you cannot read them. Overall a good investment.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, this tool kit can be used with a Garmin Pitot / AOA system.
Yes. This connects to GSU 25 AOA systems.
Yes, this will fit on the pitot as long as there 1/8 NPT
