Dynon Pitot / Static / AOA Pneumatic Installation Kit

5 Reviews 2 Answered Questions
$236.95/Kit
Quantity
Add to Wishlist View More In This Series →
Part# 12-03283
MFR Model# 102628-000

Overview

The fittings capture the tubing with stainless steel retainers. By suppressing the release ring (around the tubing entry port on the fitting), the tubing is easily removed. Within just a few minutes, you'll be able to disconnect and reconnect tubing. O-ring seals, and maintaining precise tubing diameter during the manufacturing process, ensures a reliable seal.

For Experimental Aircraft ONLY. Applicability and suitability of this kit is the responsibility of the builder.

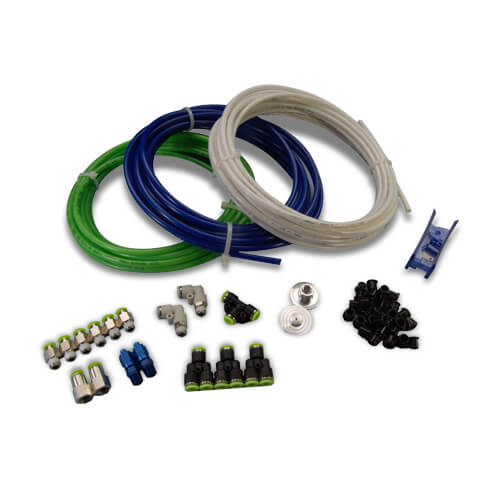

Kit Includes:
  • 2 x 102559-000, Static Port Alum 3/8″ NPT
  • 2 x 102630-000, Fitting Tube Pneumatic Strt Female 1/4″ OD PTC X 1/8″ NPT
  • 6 x 102631-000, Fitting Tube Pneumatic Strt Male 1/4″ OD PTC X 1/8″ NPT
  • 2 x 102631-001, Fitting Tube Pneumatic Elbow Male 1/4″ OD PTC X 1/8″ NPT
  • 25′ x 102632-000, Tube Pneumatic Polyethylene 0.17 ID X .25 OD BLU
  • 25′ x 102632-001, Tube Pneumatic Polyethylene 0.17 ID X .25 OD GRN
  • 35′ x 102632-002, Tube Pneumatic Polyethylene 0.17 ID X .25 OD Natural
  • 3 x 102639-000, Fitting Tube Pneumatic Y Union 1/4″ OD
  • 1 x 102639-001, Fitting Tube Pneumatic T Union 1/4″ OD
  • 1 x 102641-000, Tube Cutter
  • 30 x 102642-000, Snap Bushing
  • 2 x 102643-000, Sleeve Alum Coupling Tube 3/16″ OD
  • 2 x 102644-000, Fitting Alum Flared Tube and Pipe Thread 3/16″ OD

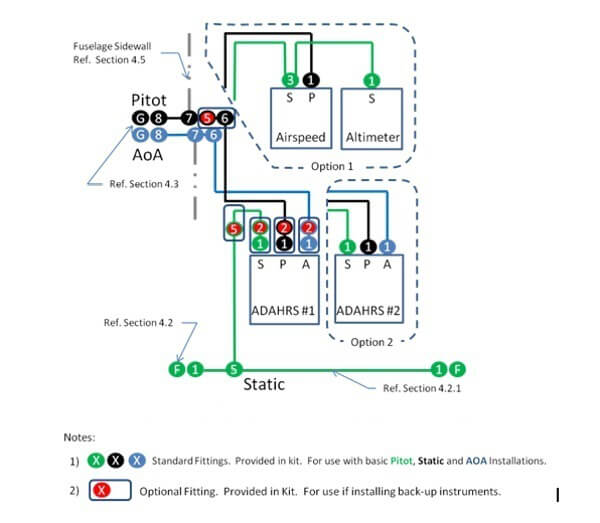

Click Here to Enlarge
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

A very plentiful kit. it has enough tubing that makes me think you could do 2 or 3 airplanes.

Owl E Verified Purchase

DYNON PITOT INSTALL KIT
February 2, 2023

A very good kit to have and I like the static port parts.

Jan H Verified Purchase

DYNON PITOT INSTALL KIT
March 16, 2022

Good kit met my needs

John A
March 31, 2021

James
March 3, 2018

Everything good except I need 2 more 90 degree fittings with the pushlock on both ends.

Doug F
March 31, 2021

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the Dynon pitot/static/aoa pneumatic installation kit (part #12-03283) be used on a Garmin GAP 26 heated/unregulated pitot/aoa tube?

Unfortunately, we cannot confirm or deny that it will work with your gap 26.

Q: What is the psi range in pitot static system?

These are simply hoses and fittings meant for the Pitot Static system. They do not work based on PSI.
